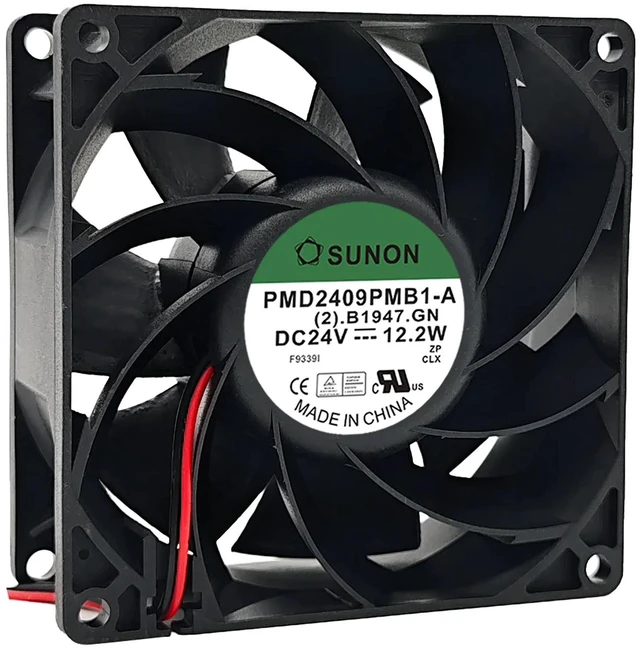

PMD2409PMB1-A 9238 DC24V Cooling Fan, 92x92x38mm Dual Ball Bearing 4900RPM 12.2W 120CFM 2-Pole Original Version, High Airflow Axial Fan for Server, Inverter & Industrial Cabinet Ventilation Replacemen
- - Model PMD2409PMB1-A 9238 industrial axial fan, dual ball bearing structure
- - Rated DC24V, 12.2W power consumption, max speed up to 4900RPM, airflow reaches 120CFM
- - Original 2-pole design, sturdy metal frame supports stable long-time continuous operation
- - High airflow and static pressure for heat dissipation in servers, inverters and control cabinets
- - Standard 92mm mounting hole layout, reliable connector for direct replacement installation
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
PMD2409PMB1-A is a high-performance 92×92×38mm industrial axial cooling fan. Powered by DC24V with rated power 12.2W and rotation speed of 4900RPM, it delivers airflow up to 120CFM. Adopting dual ball bearing and original 2-pole design, the fan offers outstanding durability and resistance to vibration, suitable for continuous operation in harsh industrial environments. It is widely used for ventilation and heat removal of servers, inverters, power supplies and electrical control cabinets. The standard mounting hole positions make it a direct drop-in replacement for old 9238 DC24V fans. Please check fan size, voltage and model number before purchase to prevent mismatches.
Specifications
- Model: PMD2409PMB1-A
- Dimension: 929238mm (9238)
- Type: DC Axial Cooling Fan
- Rated Voltage: DC 24V
- Rated Power: 12.2W
- Rotation Speed: 4900RPM
- Airflow: 120CFM
- Bearing Type: Dual Ball Bearing
- Version: Original 2-Pole
- Mounting: Standard 92mm square mounting holes
- Features: High airflow, high static pressure, anti-vibration, heavy-duty continuous operation
- Application: Server, Inverter, Industrial Electrical Cabinet Ventilation & Heat Dissipation Replacement
