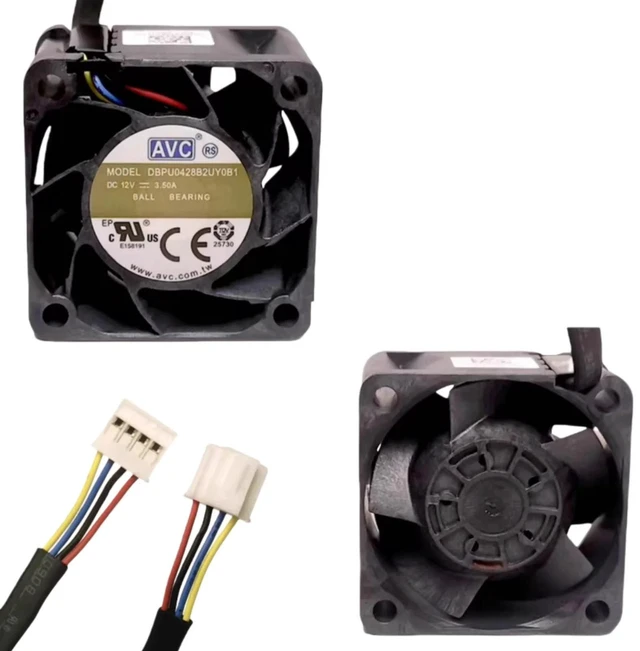

DBPU0428B2U 40x40x28mm 4CM DC12V 3.5A 42W High Speed Axial Cooling Fan, 33000RPM RC Supercharged Fan with Dual Ball Bearing and 4-Wire PWM Speed Control, Replacement Fan for 1U Server, Network Power
- - Exact replacement fan model DBPU0428B2U, 4028 compact size 40×40×28mm ultra high speed axial fan
- - Rated DC12V, 3.5A, 42W power output, maximum rotational speed up to 33000RPM for powerful static pressure and airflow
- - Built with durable dual ball bearing structure to sustain long-hour heavy-duty continuous operation
- - 4-wire PWM design supports automatic speed adjustment and real-time RPM tachometer feedback signal
- - Standard mounting hole pattern, direct swap for worn, noisy or stalled original fans inside 1U rack power units and network equipment
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
DBPU0428B2U high-performance axial cooling fan is a supercharged 4028 fan designed for 1U server power supplies, network devices and RC cooling projects. It runs on DC12V power input with 3.5A rated current and 42W power consumption, reaching extreme speed of 33000RPM to deliver massive static pressure and concentrated airflow. Adopting dual ball bearing construction, this fan maintains stable rotation under high-speed working conditions and extends service life. The 4-wire PWM interface allows host systems to dynamically adjust fan speed according to temperature. If your original fan cannot exhaust concentrated heat, produces abnormal noise or triggers fan stall warnings, this replacement fan protects your power modules and network hardware from thermal overheating damage.
Specifications
- Model: DBPU0428B2U
- Size: 40x40x28mm (4CM /4028)
- Fan Type: Supercharged High Speed Axial Cooling Fan
- Voltage: DC12V
- Current: 3.5A
- Power: 42W
- Speed: 33000RPM
- Bearing: Dual Ball Bearing
- Connector: 4-Wire PWM with Tachometer Signal
- Application: 1U Server Power, Network Equipment, RC Cooling
