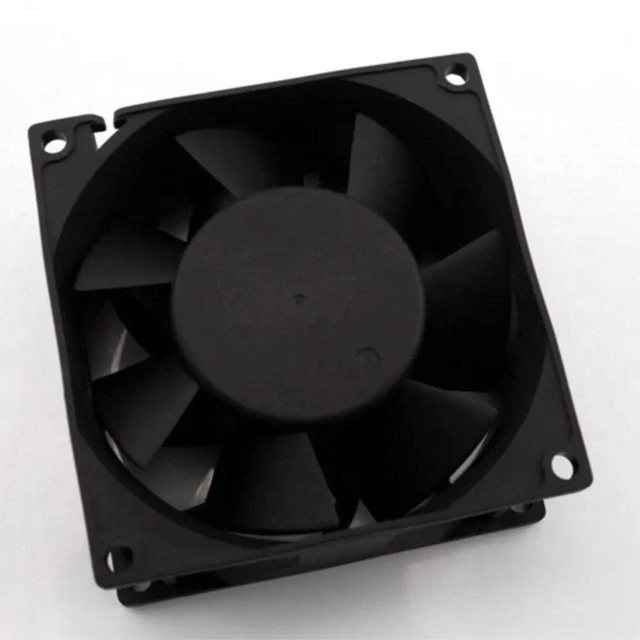

AD0824VB-F7BDS 80×80×38mm Axial Cooling Fan, DC24V 0.95A Dual Ball Bearing, 6200RPM,97CFM,57dBA 4-Wire PWM High Airflow Fan for Industrial Cabinet, Server Equipment Heat Dissipation Replacement Spare
- - Fan model AD0824VB-F7BDS, dimension 80×80×38mm (8038)
- - DC24V, 0.95A rated current, dual ball bearing for long service life
- - 6200 RPM speed, airflow up to 97 CFM, noise level 57 dBA
- - 4-wire PWM design, supports speed regulation and real-time speed feedback
- - High airflow & pressure, ideal for industrial cabinet and server hardware cooling
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AD0824VB-F7BDS is a high-performance 8038 axial cooling fan with dimension 80×80×38mm, rated DC24V 0.95A. It adopts dual ball bearing construction to support stable continuous 24-hour operation in harsh industrial environments. Running at 6200 RPM, it delivers 97 CFM airflow with noise of 57 dBA. The 4-wire PWM interface enables automatic speed adjustment and tachometer signal feedback for system monitoring. Optimized fan blades provide strong airflow to rapidly dissipate heat from densely packed components inside industrial cabinets and server equipment. Standard 80mm mounting holes allow direct replacement for old or failed fans, excellent spare part for industrial cooling maintenance.
- Model: AD0824VB-F7BDS
- Size: 80×80×38mm (8038)
- Rated Voltage: DC24V
- Rated Current: 0.95A
- Bearing: Dual Ball Bearing
- Speed:6200 RPM
- Airflow:97 CFM
- Noise:57 dBA
- Wiring:4-Wire PWM
- Application: Industrial Cabinet, Server Equipment
- Operating Temperature: -10 ~ +70
