New for NMB 4710KL-05W-B30 24V 0.20A 120 * 120 * 25mm 12cm 12025 Quiet Silent Server Inverter Square Cooling Fans
- MODEL-SPECIFIC REPLACEMENT 4710KL-05W-B30 cooling fan with a 120 x 120 x 25 mm frame for compatible server and inverter applications.
- 24V POWER INPUT Rated at 24V DC and 0.20A with 3.6W power consumption for equipment designed for this electrical specification.
- AIRFLOW PERFORMANCE 9-blade design delivers 88.20 CFM airflow and 32.3 Pa air pressure at a rated speed of 2200 RPM.
- DURABLE BEARING DESIGN Double ball bearings support continuous cooling use and provide a suitable replacement option for compatible equipment.
- 2-PIN CONNECTION Two-wire, 2-pin power interface simplifies installation; verify model, connector, dimensions, and electrical ratings before purchase.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

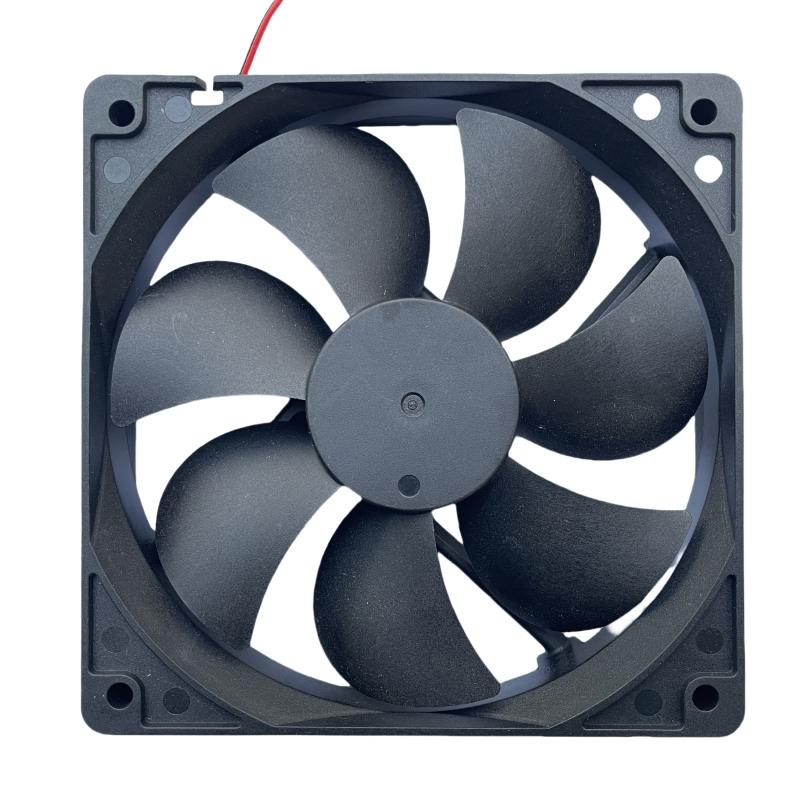

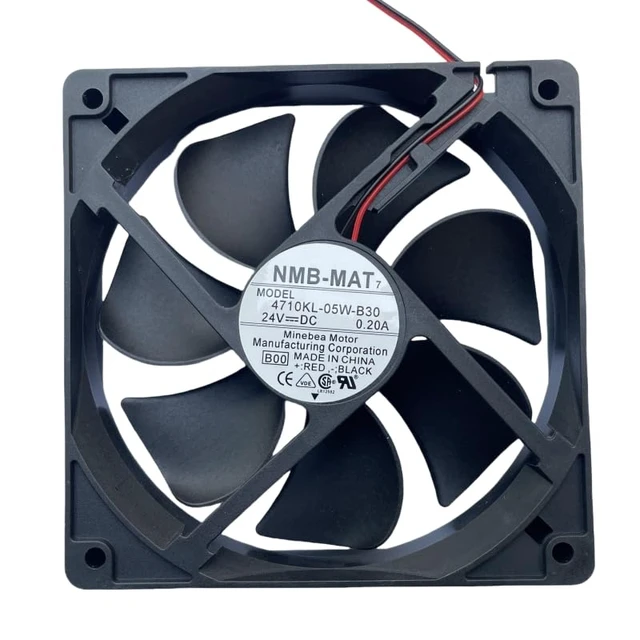

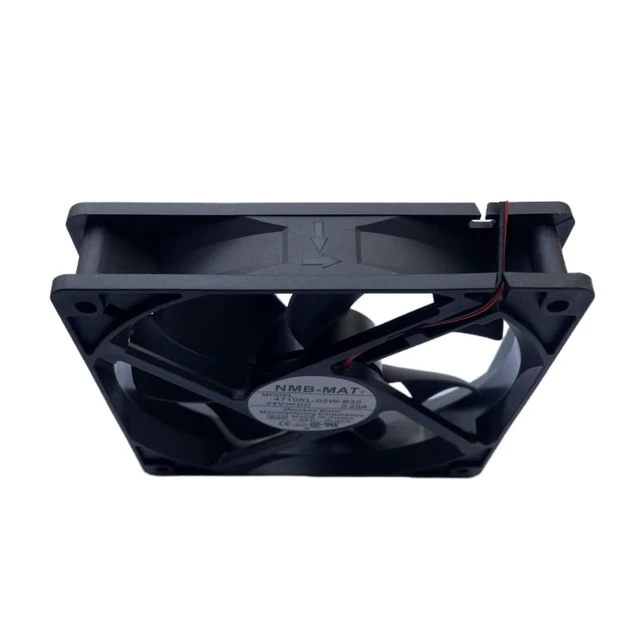

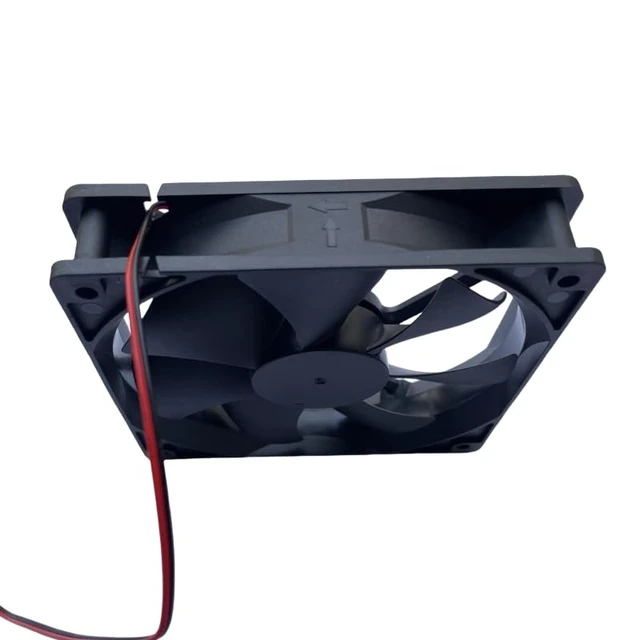

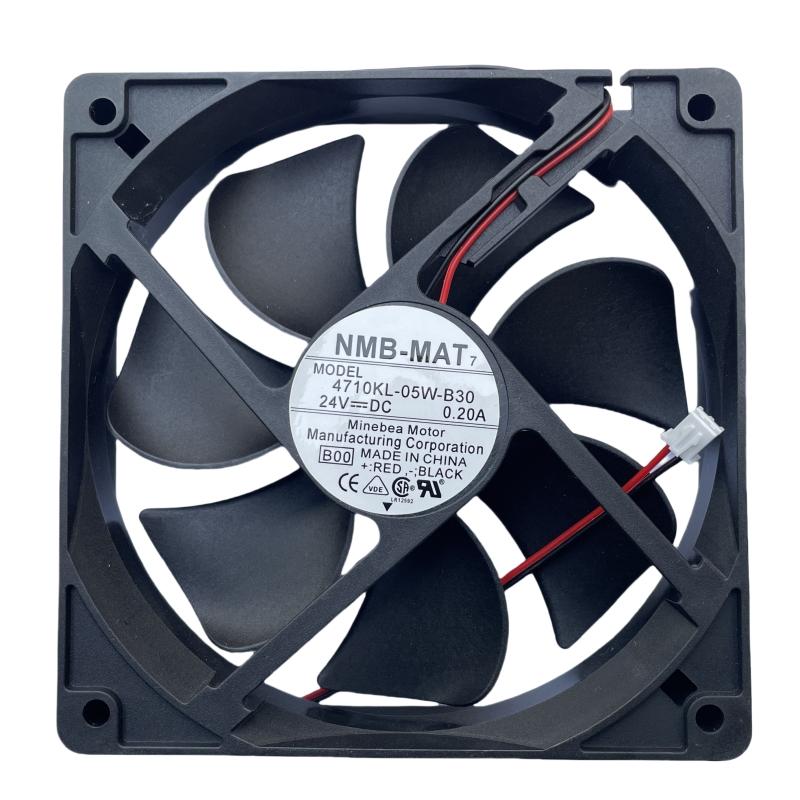

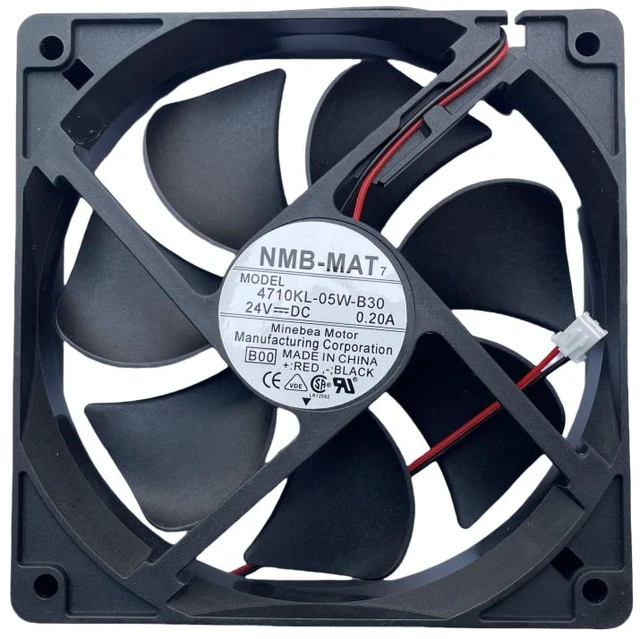

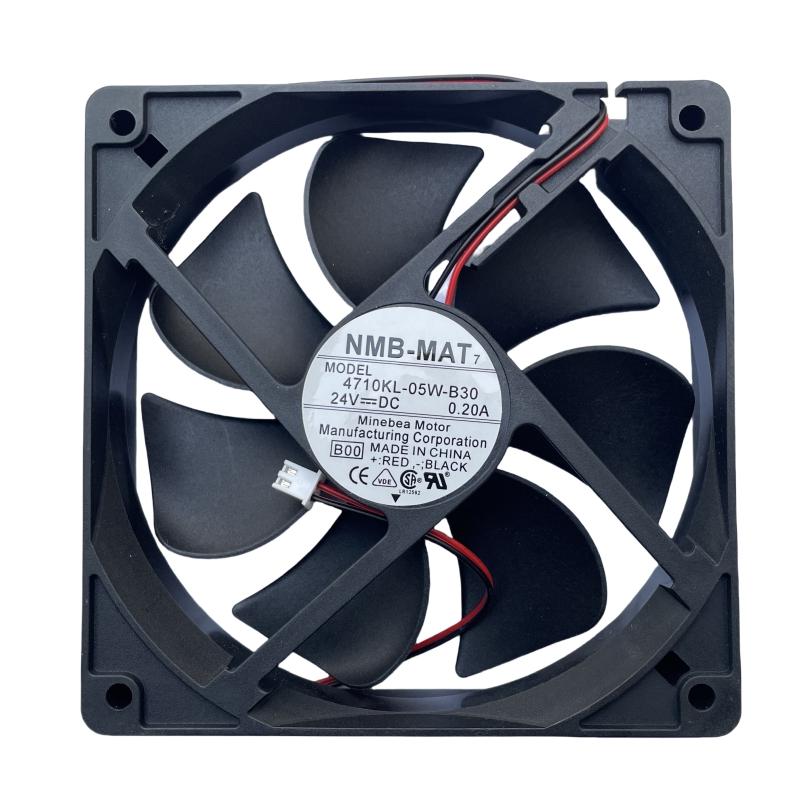

QJGTDS 4710KL-05W-B30 120mm Server Cooling Fan
This 120 mm square cooling fan is designed as a replacement for compatible servers, inverters, and other equipment that requires the 4710KL-05W-B30 specification. It uses a 120 x 120 x 25 mm frame, 24V DC input, 0.20A current rating, and a 2-pin, 2-wire power interface.
The 9-blade fan provides a rated airflow of 88.20 CFM and air pressure of 32.3 Pa at approximately 2200 RPM. Its double ball-bearing construction is suitable for applications requiring a durable replacement cooling component. Rated noise is 35 dBA.
Specifications:
- Model: 4710KL-05W-B30
- Brand: QJGTDS
- Frame size: 120 x 120 x 25 mm
- Rated voltage: 24V DC
- Rated current: 0.20A
- Power consumption: 3.6W
- Connector: 2-pin, 2-wire
- Blade quantity: 9
- Speed: 2200 RPM
- Airflow: 88.20 CFM
- Air pressure: 32.3 Pa
- Noise level: 35 dBA
- Bearing type: Double ball bearing
Please confirm the model number, mounting dimensions, connector type, voltage, and current requirements of your equipment before ordering. Each item is tested for operation before shipment. Contact the seller if an issue occurs after delivery.
FAQ
What equipment is this fan compatible with?
This fan is intended for equipment requiring the 4710KL-05W-B30 specification and matching 120 x 120 x 25 mm dimensions, 24V input, and 2-pin connector.
What are the fan's airflow and speed ratings?
The rated airflow is 88.20 CFM and the rated rotational speed is 2200 RPM.
Does this fan use a 2-pin connector?
Yes. It uses a 2-pin, 2-wire power interface. Verify connector compatibility before installation.
