Garbage Disposal Air Switch Kit Sink Top Waste Disposal Long Stainless Steel On/Off Air Button Food and Waste Disposals Part by Etoolcity

Pls Note: This air switch is stainless steel polished.

Etoolcity Single Outlet Air Switch Kit lLet You Deal with Sink Garbage Easier.

It is a convenient alternative to the traditional wall switch and a perfect fit for most brand or model of garbage disposers(<2HP). Tips: must have AC power below sink.

Also it is connection device as a part of garbage disposal, massage chair, or vacuum.

5 easy steps to install

Step 1:

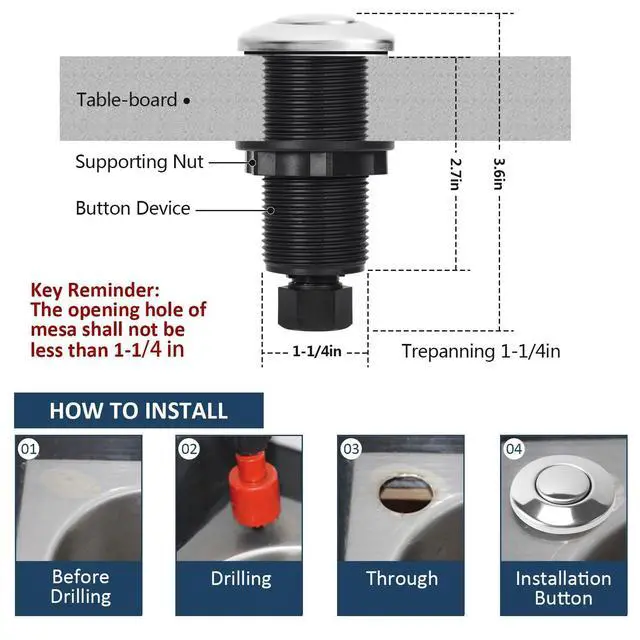

If there is no sink hole, you can mount the push button through the counter top by drilling a hole (not less then 1- 1/4 in).

Step 2:

Place the rubber gasket between push button and the top of sink counter. Tighten the plastic nut under the sink counter to ensure a watertight seal.

Step 3:

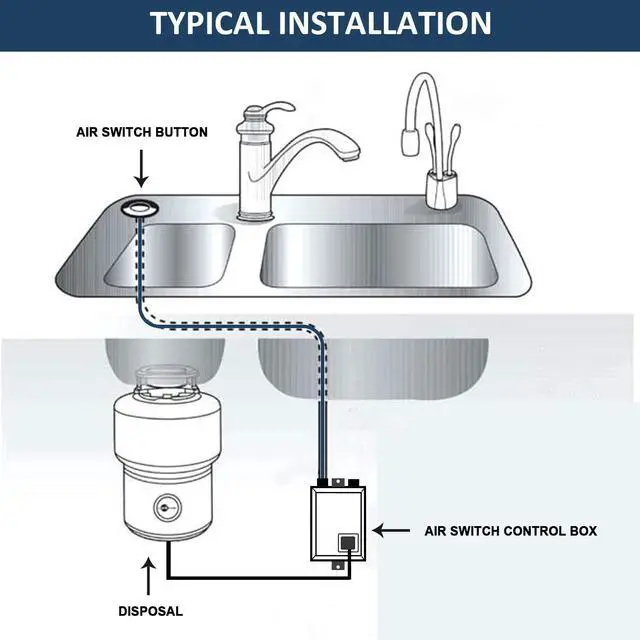

Attach the air tubing between the push button and the control unit. Push the tubing tightly onto the molded protrusions.

Step 4:

Plug the control unit into a dedicated, grounded 120V AC outlet that is continuously powered.

Step 5:

Plug the disposer power cord into the control unit. Press push button to ensure that the countertop switch turns the disposer on and off.

NOTE:

Press switch button to turn the disposer on and press again to turn the disposer off.

Disposer may start when disposer cord is plugged into the power module. Push the Countertop Switch button once to stop the disposer.

Specifications:

Working voltage: AV110-240V(50/60Hz)

Working current: 110V/16A; 220V/10A

Max power: 2000W

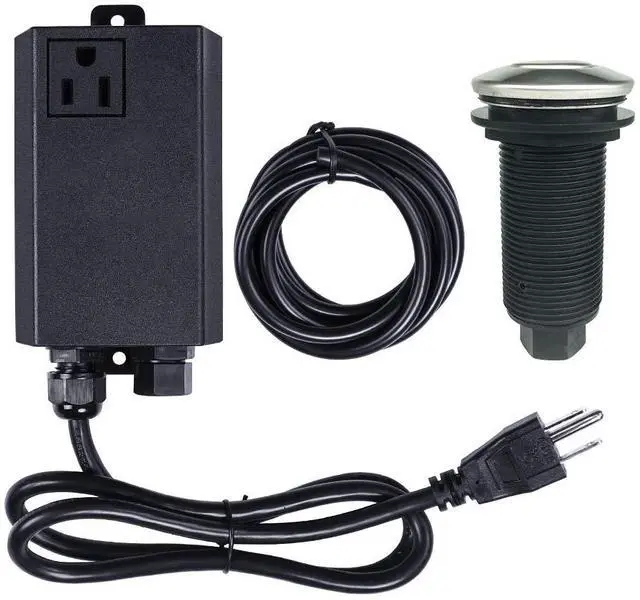

Package Included:

1x Single outlet power module

1x Long(2.7'') Stainless steel push button

1x 1 m/3.3 ft Soft Tube

2x Mounting screws

1x Installation instruction

1x Strong nano-markless hook sticker
