FLYPROFiber- LC to LC Single Mode Fiber Patch Cable OS2 50M/164ft | Duplex, 9/125um SMF, SM Singlemode Fiber Jumper, For 1G/10G/100G Transceivers / Data Centers, Fully Pre-Tested, LSZH, Yellow
- High Rated OS2 9/125m Fiber and Cladding, which is Insensitive to bending,Easy peeling,Easy welding,ensures small optical loss and stable transmission. The core is Japan imports zirconia powder ceramics, which is High Return Loss,Low Insertion Loss,Low Attenuation feautures.
- This LC to LC Single-mode Duplex OS2 fiber patch cords operate at -20ºC to +70ºC.Compatible with all standard fibre optic equipment and connectors,They are suitable for indoor use.
- 16mm Minimum Bend Radius that is 4X more flexible than standard 50 micron fiber cables without introducing any macro-bending loss; Ideal for SAN network cabinets that require 20 or more bends in the cabinet or high density installations with cables crammed into an extremely small footprint.
- Duplex Connector OS2 9/125m,Insertion Loss0.3dB,Return Loss 50dB. Patch Cable singlemode OS2 fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds,Local Area Networks, Data Center, Premise installation, Wide Area Networks,Commercial and so on.
- FLYPROFiber has been focusing on fiber optics for 15 years. Each cable is tested in the factory to meet quality control and insertion loss requirements, providing customers with high-quality products. We also have a professional customer service team. If you have any questions, please contact us promptly.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

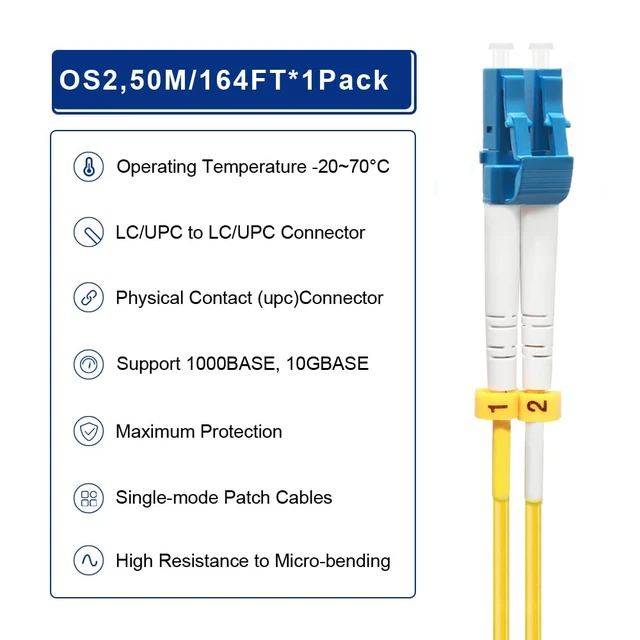

CABLE SPECIFICATIONS:
OS2 High Rated 9/125m Fiber and Cladding
Duplex Connector OS2 9/125m
Size:50m/164ft(included Connector)
Ferrule Material: Ceramic
Minimum Bend Radius :15mm
Operating Temperature :-20~70°C
Connectors:LC-LC
Polish Type:UPC to UPC
Insertion Loss0.3dB
Return Loss 50dB
Cable Jacket :LSZH
Cable Diameter:2.0mm
Wavelength1310nm and 1550nm
Attenuation at 1310nm-1550nm 0.36 dB/km-0.22 dB/km
Smart & Reliable - Bendable Optical Fiber
The industry standard duplex fiber connector meets EIA/TIA 604-2 with ceramic ferrule for high speed cabling networks
Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network
ADVANTAGES:
Plug and play cables save time in the field since there is no onsite termination necessary. The 9/125m OS2 singlemode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.It's a long term, cost effective solution to securely transmit data requiring high transfer rates
APPLICATIONS:
Computer Networking - Transfers data at a higher rate of speed. Military and Defense - Transmits data signals more clearly
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths
FLYPROFiber cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components
