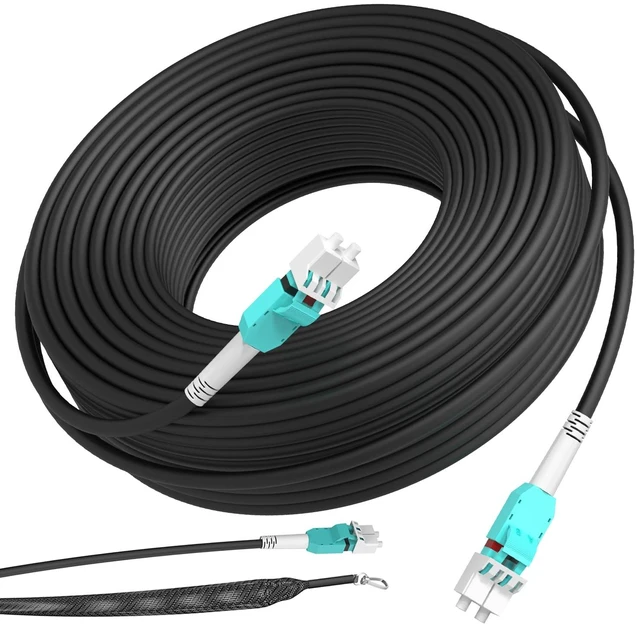

30M/98FT OM3/OM4 LC to LC Outdoor Armored Fiber Optic Patch Cable, Multimode Duplex 50/125m, 10Gb/40Gb/100Gb, Industrial TPU Jacket, Direct Burial, Uniboot, MMF, OD 5mm, Pulling Eye Kit Installed
- Rugged Outdoor-Grade TPU JacketThis armored fiber optic cable features a thick industrial TPU jacket with excellent tensile strength, UV resistance, abrasion protection, and waterproof performance. Built for long-term reliability in harsh environments like snowfields, deserts, mountain ridges, tunnels, coastal zones, rooftops, factories, roadside trenches, and construction sites. Supports direct burial, conduit routing, or overhead use. Available in 5m to 300m lengths for residential and commercial deployments.

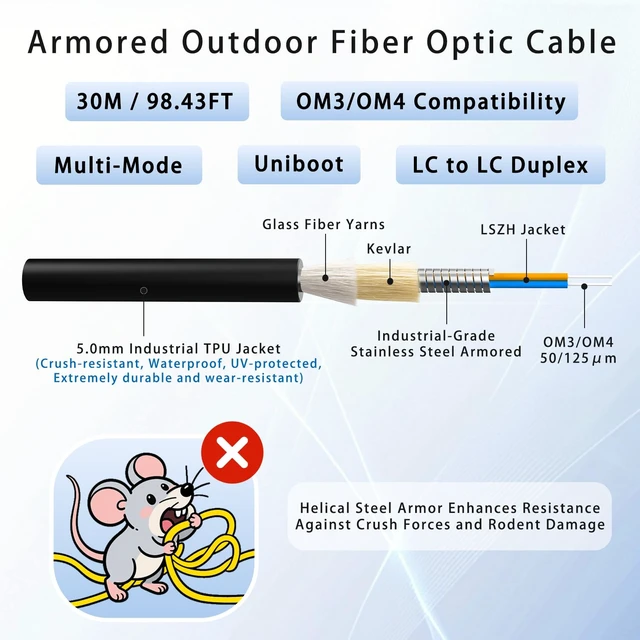

- Dual Armored Construction for ProtectionBuilt with a stainless steel spiral armor tube and inner fiberglass yarns, this outdoor fiber cable provides double-layer mechanical protection against crushing, rodent chewing, sharp bending, and pulling stress. With an outer diameter of 5.0mm, it offers significantly more resistance to physical damage than standard 3.0mm fiber cables, making it ideal for direct burial, industrial campuses, outdoor conduits, and environments with heavy foot or vehicle traffic. Engineered for long-term durability in harsh conditions.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The 30m (98ft) LC to LC Outdoor Armored Fiber Optic Patch Cable is purpose-built for high-bandwidth transmission and complex routing in harsh environments. Featuring bend-insensitive OM3/OM4 multimode fiber and dual-layer mechanical protection, it delivers dependable performance in mission-critical deployments such as data centers, telecom rooms, and FTTH networks.
Enhanced Engineering Features:
- 5mm vs 3mm Durability: The 5.0mm OD cable offers superior crush resistance and tensile strength compared to 3.0mm standard cables, ensuring longer lifespan and stability in industrial or buried installations.
- Waterproof & Crush-Resistant: Designed to withstand up to 3000N of crush force and long-term tension of 200N, the cable resists water ingress and external pressureideal for underground and conduit environments.
- Optimized for Conduit Pulling: With a pre-installed pulling eye, the cable supports secure, damage-free routing through long conduits, floors, risers, and bridge traysreducing installation time and cost.
5 Key Innovations:
- Streamlined Deployment: Unlike conventional jumpers, ERSTICKTs pre-installed pulling eye cuts labor by up to 40% in complex routes like vertical risers and outdoor conduits.
- TPU Jacket Longevity: Industrial TPU outer jacket resists UV, salt fog, and thermal agingretains flexibility even after 20 years in sun, snow, or coastal humidity.
- Double Armor Impact Protection: Built-in stainless steel spiral tube + fiberglass yarns guard against rodent bites and foot traffic pressure.
- Eco-Friendly Reusability: Pulling eye is removable and reusablesupports sustainable, low-waste deployments.
- Uniboot Flexibility: LC Uniboot duplex connectors allow tool-free polarity reversal, ideal for rack management and modular upgrades.
OM3/OM4 Transmission Distances:
- OM3: 10Gbps @ 300m, 40Gbps @ 100m
- OM4: 10Gbps @ 400m, 40Gbps @ 150m, 100Gbps @ 100m
Technical Specifications:
- Connector Type: LC to LC (Uniboot, UPC polish)
- Fiber Type: OM3/OM4 Multimode, 50/125m, bend-insensitive
- Insertion Loss: 0.3dB (100m), 0.6dB (100200m), 0.9dB (200300m)
- Return Loss: 55dB
- Outer Jacket: Black industrial-grade TPU, OD 5.0mm
- Armor: Stainless steel spiral tube + reinforced fiberglass yarns
- Tensile Strength: 200N (long term) / 600N (short term)
- Crush Resistance: 2000N/3000N (long/short term)
- Operating Temperature: -40°C ~ +80°C
- Lengths Available: 5m (16ft) to 300m (984ft)
Application Scenarios:
- Data center backbone cabling & high-density patching
- SAN/NAS fiber interconnects and storage networks
- Telecom room fiber runs, ONU/OLT deployments
- FTTH/FTTB access and fiber cabinet extensions
- 4K/8K IP camera surveillance backhaul
- Smart building and campus fiber links
- Tunnel, bridge, and railway signaling systems
- Industrial control networks, PLC fiber connectivity
- Offshore wind farms, substation monitoring
- Harsh outdoor sites: coastal, desert, mountaintop
Device Compatibility:
Compatible with Ci
