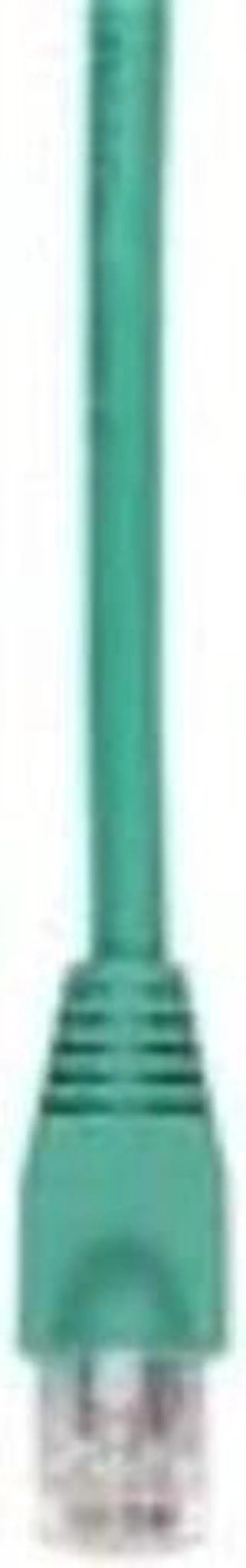

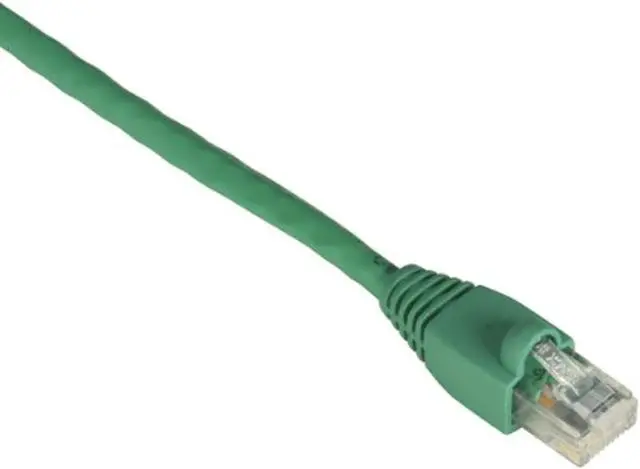

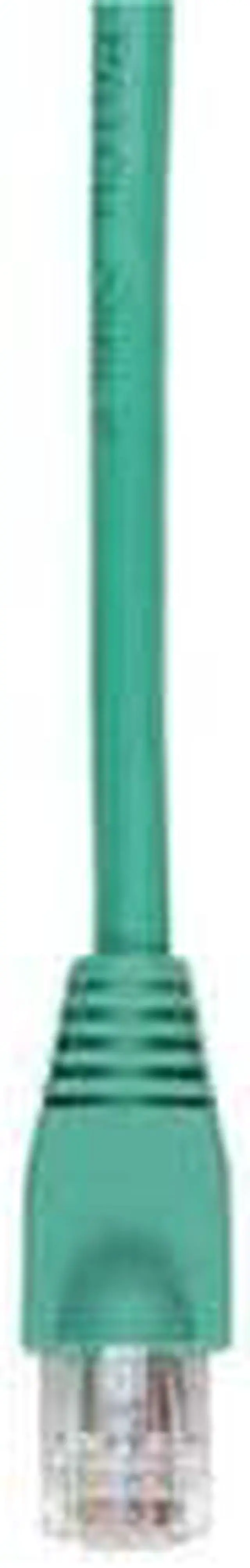

CAT6 550-MHZ SNAGLESS STRANDED ETHERNET PATCH CABLE - UNSHIELDED (UTP), CM PVC (

Features. Get highlevel CAT6 performance in an endtoend Black Box GigaTrue channel. Cable construction Stranded, 24AWG copper wire, RJ45 connectors, 4pair, T568B, PVC jacket, straightpinned. Improved attenuation provides cleaner data and video transmissions. For 1000BASET, 100BASETX, 100BASEVG, 155Mbps ATM, 100Mbps FDDI/CDDI, and other highspeed applications. Perfect for full broadband and baseband video. Stranded cable delivers full Power Sum performance. Provides fullduplex operation for nextgeneration applications. Meets balance requirements, resulting in better transmission. This CAT6 cable features snagless boots for easier installation.

Tested to 550MHzCable Works With. GigaStation HighDensity Multimedia Patch Panels. GigaTrue CAT6 Patch Panels. GigaTrue CAT6 Jacks. GigaTrue2 CAT6 Jacks. GigaStation Wallplates. GigaStation2 Wallplates. GigaStation2 SurfaceMount Housings. Snap Fittings. GigaStation2 Snap FittingsSpecifications. Color Green. Attenuation 23.6 dB at 100 MHz; 39.1 dB at 250 MHz. Conductor Gauge 24 AWG. Delay Skew Maximum 25 ns/100 m. Impedance 100 15 ohms at 100 MHz; 100 22 ohms at 100550 MHz. Mutual Capacitance 56 pF/m maximum. NEXT 45.0 dB at 100 MHz; 39.0 dB at 250 MHz.

PSACR 32 dB at 100 MHz. PSNEXT 43.0 dB at 100 MHz; 37.0 dB at 250 MHz. Resistance Maximum 9.09 ohms/100 m. Return Loss 22.5 dB at 100 MHz; 20.5 dB at 250 MHz. Standards TIA/EIA568B. 21 Category 6. Structured Return Loss 22.5 dB at 100 MHz; 20.5 dB at 250 MHz. Length 50 ft.. Weight 1.56 lbs
