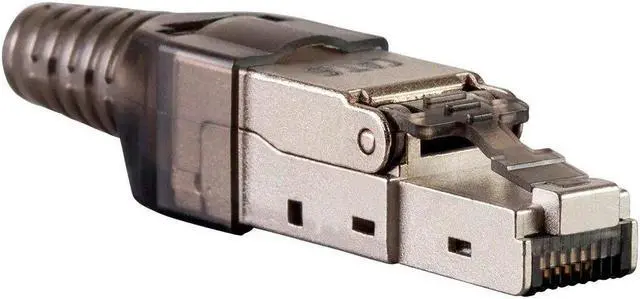

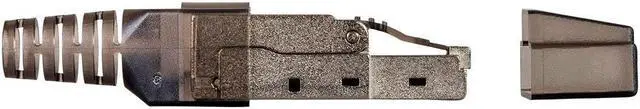

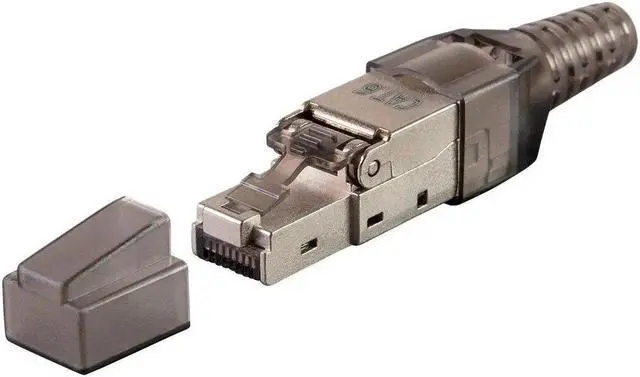

Monoprice Entegrade Series Cat6 RJ-45 Field Connection Modular Plug, Shielded for 23/24AWG Installation Cable, 10 pack

Cat6Class Ea RJ45 Field Assembly Plug

UTP and FTP

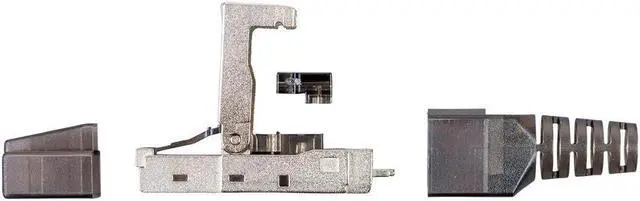

Easy Assembly terminate in field in minutes without special tools

Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm

Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm

Transmission Characteristics: Cat6per IS0/IEC 11801
Ed. 2.2: 201106

Complies with class Ea to ISO/EIC 11801 Ed. 2.2. 201106, DIN EN 501731:201109 10 Gbit

IEEE 802.3 an

Supports Power over Ethernet (PoE, PoE plus, and UPoE)

Compatible with Cable Jacket Diameters from 6 to 9.5 mm

Adjustable Strain Relief (6mm to 9.5 mm Cable outside diameter)

Load Bar for Faster and Easier Wire Pattern Termination

Operation temperature: 40 ~ +60C

Relative humidity: 85% (30C), Air pressure: 70106Kpa

Gold Plated Bronze Blade: bronze and gold plating (350 inch}, mating durability not less than 750 cycles

Made from Kirsite \ PC or PCB (UL94VO)

Intermediate resistance: no more than 20 megohm in normal atmospheric pressure (not including bulk resistor)

Insulated resistance: no less than 1, 000 megohm in normal atmospheric pressure

1, 000 VDC (700 VAC)

Retention strength: 7.7 kg between jack and plug
























Support Files:


Quick Install Guide (Dec 5, 2017)
