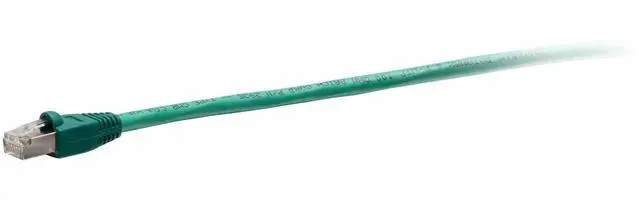

C2G 7ft (2.1m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Green Model C2G07356
- Specifications for 7ft (2.1m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Green
- Dimensions & Measurements
- Bandwidth
- 500 mHz
- Bend Radius
- 1.95 in (49.6 mm)
- Cable Diameter
- 0.24 in (6.2 mm)
- Cable Length
- 7 ft (2.1 m)
- Operating Humidity Max
- 80% RH (Non-Condensing)
- Operating Humidity Min
- 10% RH (Non-Condensing)
- Operating Temperature
- -4° - 176°F (-20° - 80°C)
- Operating Temperature Max
- 176 Fahrenheit (80 Celsius)
- Operating Temperature Min
- -4 Fahrenheit (-20 Celsius)
- Shipping Weight
- 0.21 lbs (0.1 kg)
- Storage Humidity Max
- 180% RH (Non-Condensing)
- Storage Humidity Min
- 10% RH (Non-Condensing)
- Storage Temperature Max
- 176 Fahrenheit (80 Celsius)
- Storage Temperature Min
- -4 Fahrenheit (-20 Celsius)
- Voltage
- 30 V
- Wire Gauge
- 26
- Wiring Scheme
- T568B
- Characteristics & Features
- Cable Shielding
- Shielded STP
- Category Performance Application
- Cat 6a
- Color
- Green
- Conductor Material
- Copper
- Conductor Stranding
- Stranded
- Connector 1
- (1) RJ-45 Male
- Connector 2
- (1) RJ-45 Male
- Connector Hood Material
- PVC
- Connector Type
- Booted
- Snagless
- Insulation Material
- FMPE (Foam Polyethylene)
- Jacket Application
- Standard Non-Rated
- Jacket Rating
- Standard Non-Rated
- Plating Specification
- 50 µ in Gold
- Product Type
- Cable
- Signal Type
- STP
- Special Features
- TIA/EIA-568-C.2
- UPC
- 757120073567
- Certifications & Warranties
- Certifications
- CE
- Prop 65
- REACH
- RoHS
- Data Transfer Rate
- 10 GBPS
- Jacket Material
- PVC
- Warranty
- Lifetime
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This Snagless Shielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and will protect a high speed 10 Gigabit network connection from noise and electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.
- Designed for network adapters, hubs, switches, routers, HDBaseT applications and more
- Supports 10 Gigabit networks up to 328ft for fast data transmission and maximum performance
- Meets the ANSI/TIA-568-C.2 Cat6a requirements for supporting a wide variety of applications
- Constructed with shielded twisted pair (STP) wires, designed to protect a high speed network from noise and electromagnetic interference
- Snagless connector design for high density environments and protecting the RJ-45 connector's lock
- Available in a variety of colors to color-code a network
