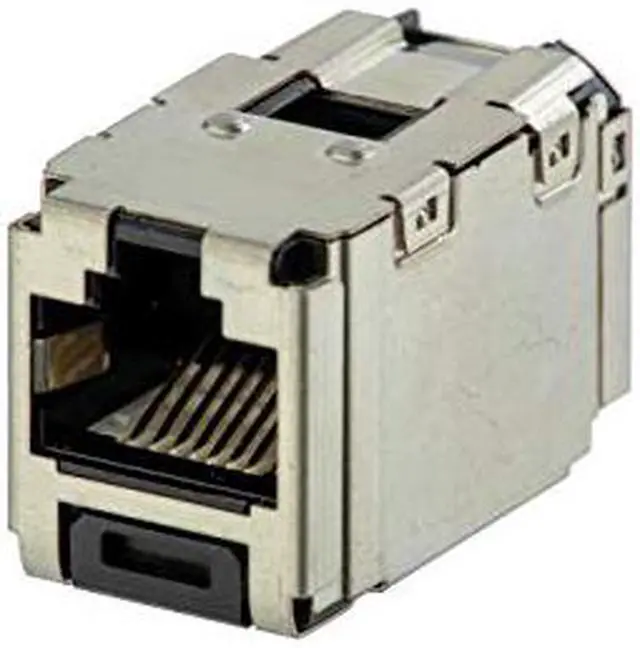

Panduit CCS5E88BL Mini-Com Cat5e Shielded Coupler Module, Black RJ45 8P8C
- Product Type Jack Module
- Performance Level Category 5e
- Connector Type Coupler Module
- Termination Style Coupler
- Body Material Polycarbonate
- Contact Material Plated Phosphor Bronze
- Module Type Mini-Com®
- Wiring Scheme T568A/T568B
- Shield Type Shielded (STP)
- Sub Brand Pan-Net®
- Color Black
- Standards Met Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
- Overall Length (In.) 1.08
- Overall Length (mm) 27.51
- Overall Width (In.) 0.63
- Overall Width (mm) 16
- Overall Height (In.) 0.71
- Overall Height (mm) 18
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Pan-Net® Cat 5e STP RJ45 Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module includes 24 per package.
