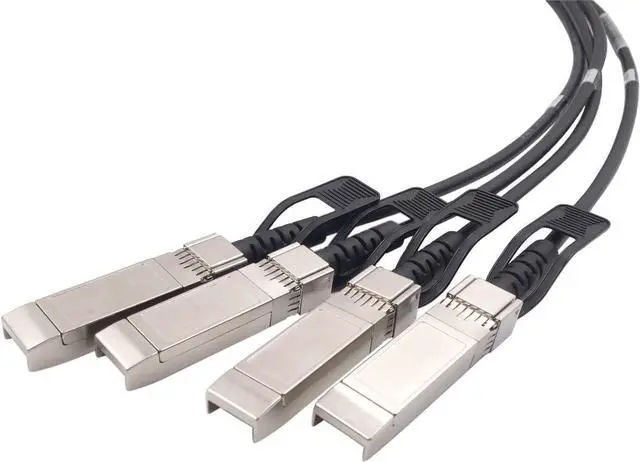

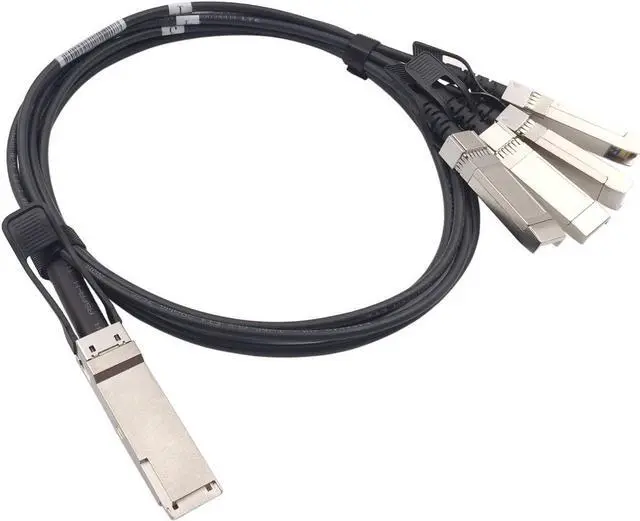

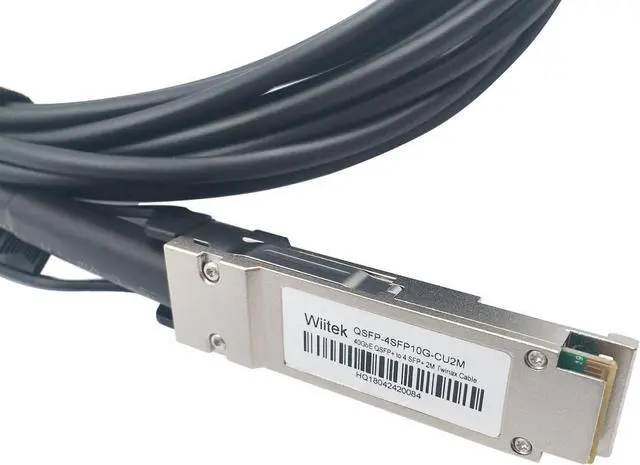

Wiitek 2M QSFP+ to 4 SFP+ DAC Breakout Cable, QSFP-4SFP10G-CU2M, 40GbE QSFP+ Direct Attach Copper Cable, 30AWG Black, for Cisco, Ubiquiti, Juniper, Mellanox, Supermicro, Compatible for Mikrotik

Introduction

The QSFP+ to 4x SFP+ Passive cable assemblies are high performance, cost effective for SFP+ and QSFP+ equipment interconnects. The Hybrid cables are compliant
with SFF-8436 and SFF-8431 specifications. It is offer a low power consumption, short reach interconnect applications. The cable each lane is capable of transmitting
data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features

Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
Support for multi-gigabit data rates: 1.0 Gbps - 10.3125 Gbps (per channel)
Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125G bit/s)
Hybrid cable link length up to 5m (passive limiting)
High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
Power Supply: + 3.3V
Low power consumption: 0.02 W (typ. )
Temperature Range: 0~ 70 °C

Applications

40G QSFP+ to 4×10SFP+
10G/40Gigabit Ethernet
InfiniBand SDR, DDR, QDR
Switches, Routers, and HBAs
Data Centers

STANDARDS COMPLIANCE

QSFP+

SFF-8436
QDR InfiniBand
QSFP+ MSA
RoHS Compliant

SFP+

SFF-8431
SFP+ MSA
RoHS Compatible

Product Name: Wiitek for Cisco Compatible 40GbE QSFP+ to 4 SFP+ Breakout Twinax Cable, QSFP-4SFP10G-CU2M Direct Attach Copper Cable, Pull-to-Release Latch 30AWG 2M, Black
Cisco P/N: QSFP-4SFP10G-CU2M
Wire AWG: 30AWG
Cable Length: 2m( 6.6 ft)
Connector Type: QSFP+ to 4SFP+
Max Data Rate: 40Gbps
Protocols: 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet
Color: Black
