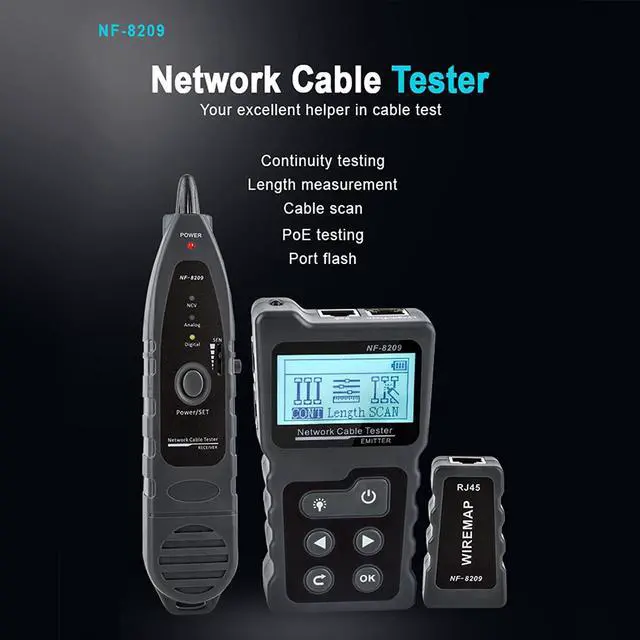

Advanced Network Cable Tester With PoE& NCV & Lamp For CAT5e/CAT6/CAT6a, Multifunction Wire Tracker Cable Tester For Tracker Underground Telephone Line Finder Home Repair
- Main Function : Detecting PoE voltage, current, power, PSE standards Power supply modes, Verify RJ45 cables
- 1. Three scan modes selectable: AC filter mode/ Analog mode/ PoE mode
- 2. Detect AC voltage presence (50V-1000V). Test physical status for STP, UTP lan cable.
- 3. Measure cable length accurately , the range is 120m.

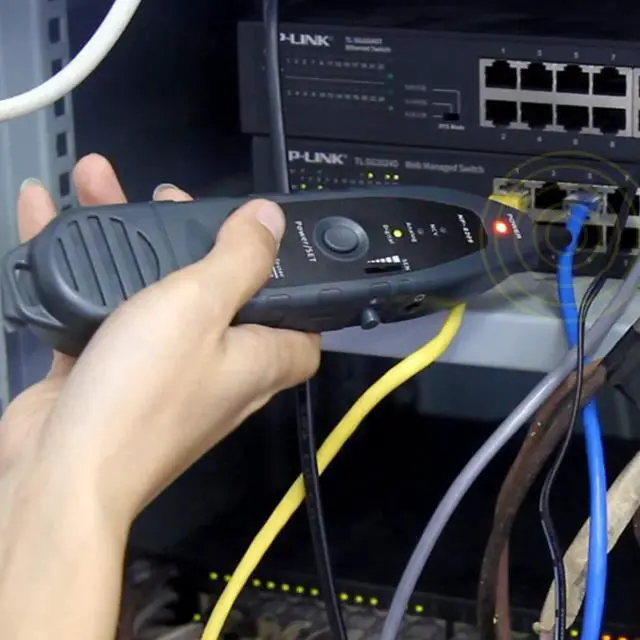

- 4. Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
- 5. PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Length/Cable type CAT5CAT6 (STP & UTP)
Length/Test range 2~200m
Length/Accuracy ± 1.6 m
Length/Breakage location Yes
Scan/Max. signal voltage 8Vp-p
Scan/Frequency 130KHz
Scan/Max range 600m
POE/Test range DC 5~60V standard / non-standard PoE switch
POE/Voltage display Yes
POE/PSE type IEEE 802.3 af/at
LCD display 128*64 Dot-matrix with backlight
Power supply AAA*3 (Not included)
Low battary warning 2.7V
Auto-off time 15min30min60minOFF
Voltage protection DC48V 5mA
Max working current <150mA
Sentivity adjustable Yes
AC Voltage detecting Yes
Lamp Yes
Battary type 9V*1 (Not included)
Low battary warning 6± 0.5V
Max working current <100mA
Remote/Wiremap Port RJ45
Remote/Voltage protection DC48V 5mA
Length/Test range 2~200m
Length/Accuracy ± 1.6 m
Length/Breakage location Yes
Scan/Max. signal voltage 8Vp-p
Scan/Frequency 130KHz
Scan/Max range 600m
POE/Test range DC 5~60V standard / non-standard PoE switch
POE/Voltage display Yes
POE/PSE type IEEE 802.3 af/at
LCD display 128*64 Dot-matrix with backlight
Power supply AAA*3 (Not included)
Low battary warning 2.7V
Auto-off time 15min30min60minOFF
Voltage protection DC48V 5mA
Max working current <150mA
Sentivity adjustable Yes
AC Voltage detecting Yes
Lamp Yes
Battary type 9V*1 (Not included)
Low battary warning 6± 0.5V
Max working current <100mA
Remote/Wiremap Port RJ45
Remote/Voltage protection DC48V 5mA
