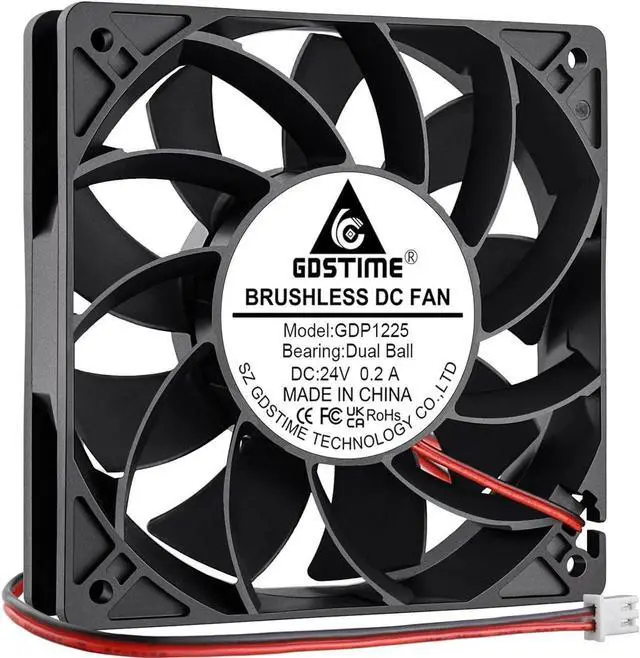

GDSTIME 24V DC Brushless Cooling Fan, 120mm Case Fan, Dual Ball Bearings 120mm x 120mm x 25mm Cooler Fan

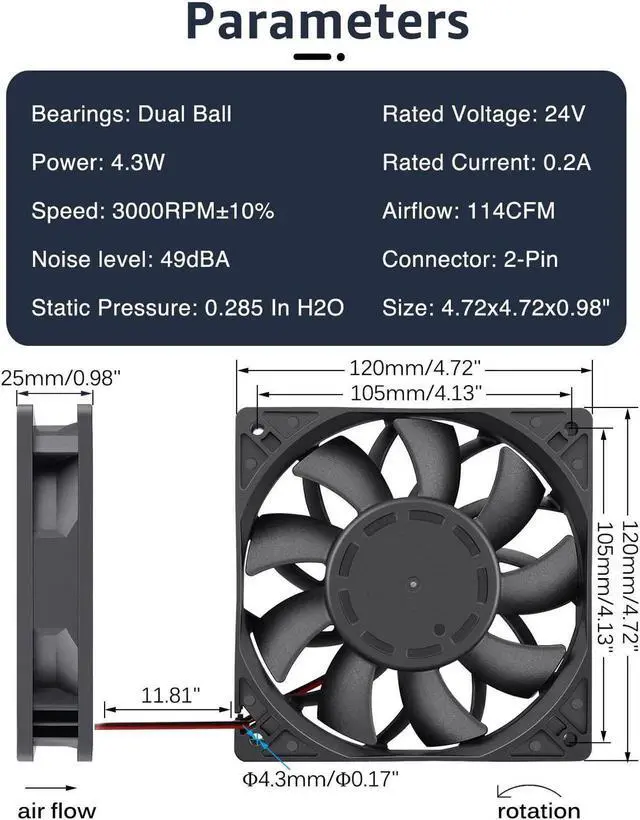

- Dimension of outer the frame is 120mm(L) x 120mm(W) x 25mm(H) / The size of fan in inch is 4.72in(L) x 4.72in(W) x 1in(H); The center to center distance beween the mountiong holes is 105mm/4.13in.

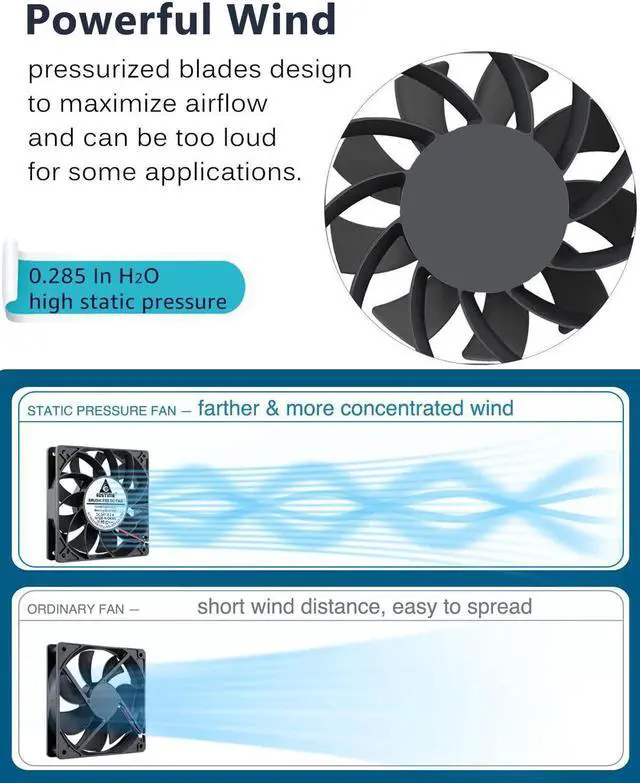

- There are two fan blades. one is actually fixed. Its function is increase air pressure.
- Rated Voltage: DC 24V; Rated Current: 0.2Amp; Rated Speed: 3000 RPM; Air flow: 114CFM; Noise: 49dBA

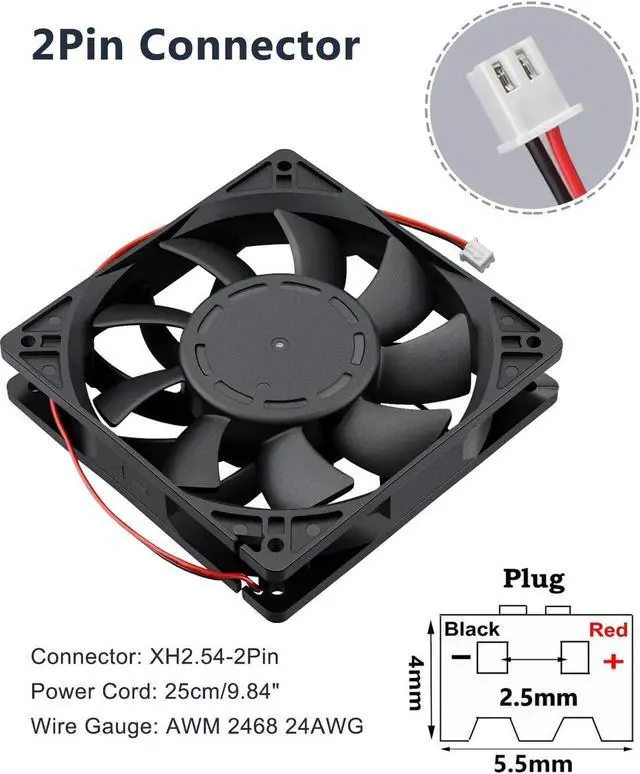

- Connector: XH2.54-2Pin; Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two wire cooling fan; Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees.
- Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Dimension of outer the frame is 120mm (L) x 120mm (W) x 25mm (H) / The size of fan in inch is 4.72 in (L) x 4.72 in (W) x 1in (H); The center to center distance beween the mountiong holes is 105mm/ 4.13 in.
There are two fan blades. one is actually fixed. Its function is increase air pressure.
Rated Voltage: DC 24V;
Rated Current: 0.2A mp;
Rated Speed: 3000 RPM;
Air flow: 114CFM; Noise: 49dBA
Connector: XH 2.54 -2Pin;
Lead wire: UL
Type (+): Red
wire;
(-): Black wire. This is a two wire cooling fan;
Bearing Type: Dual Ball Bearings;
Life: working up to 50000h at 25 degrees.
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
There are two fan blades. one is actually fixed. Its function is increase air pressure.
Rated Voltage: DC 24V;
Rated Current: 0.2A mp;
Rated Speed: 3000 RPM;
Air flow: 114CFM; Noise: 49dBA
Connector: XH 2.54 -2Pin;
Lead wire: UL
Type (+): Red
wire;
(-): Black wire. This is a two wire cooling fan;
Bearing Type: Dual Ball Bearings;
Life: working up to 50000h at 25 degrees.
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
