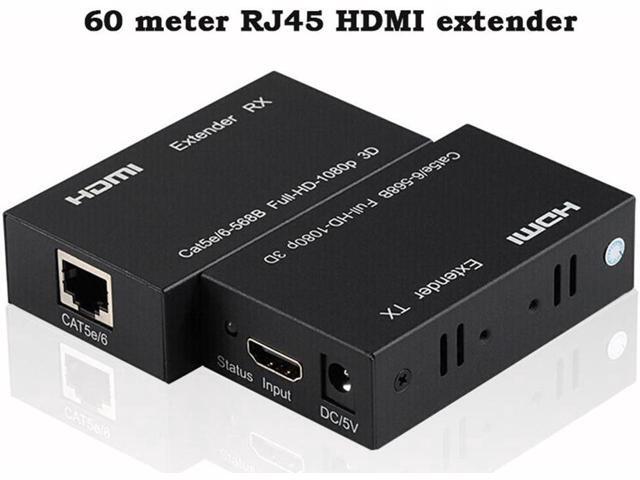

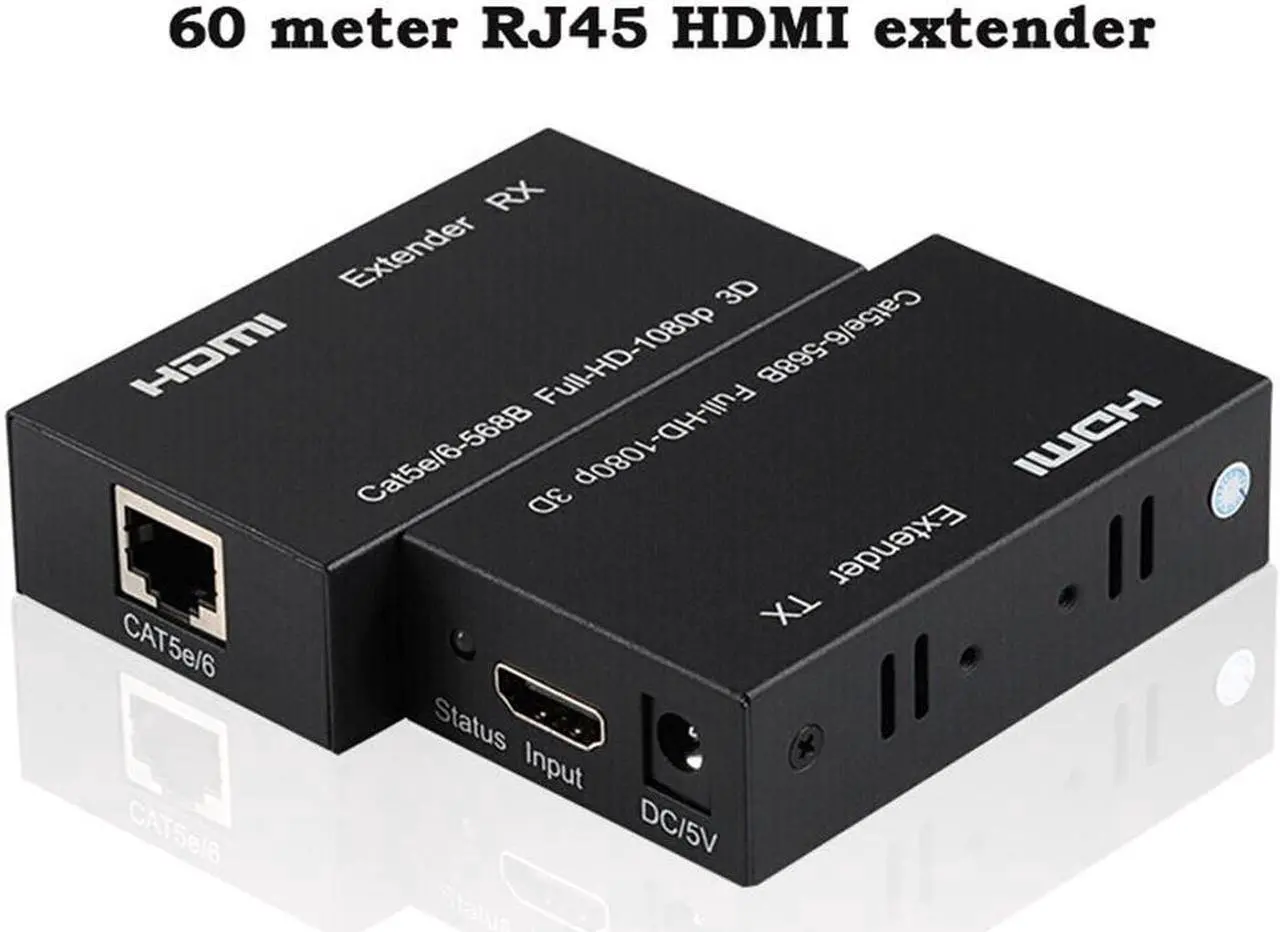

The HDMI extender can use a CAT5/6 cable to transmit the HDMI signal to a display no more than 196ft.
Specification:
- Support resolution:3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz
- Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Max transmission bandwidth: 1.65Gbps
- Input/Output HDMI cable distance:16ft(5m) AWG26 HDMI standard cable
- Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V
Attetion:
1. This HDMI ethernet extender can not work with ethernet router or switcher.
2. Your ethernet cable must follow standard IEEE-568B. Oxygen free copper CAT6 ethernet cable is recommended because the quality of ethernet cable will effect the transmission distance and quality.
3. Maximun resolution of HDMI input supports 1920*1080P@60hz. Not support 4K HDMI.
4. This HDMI to RJ45 and RJ45 to HDMI transmitter does not have IR function.

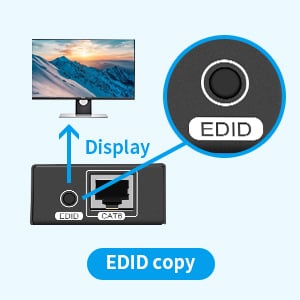

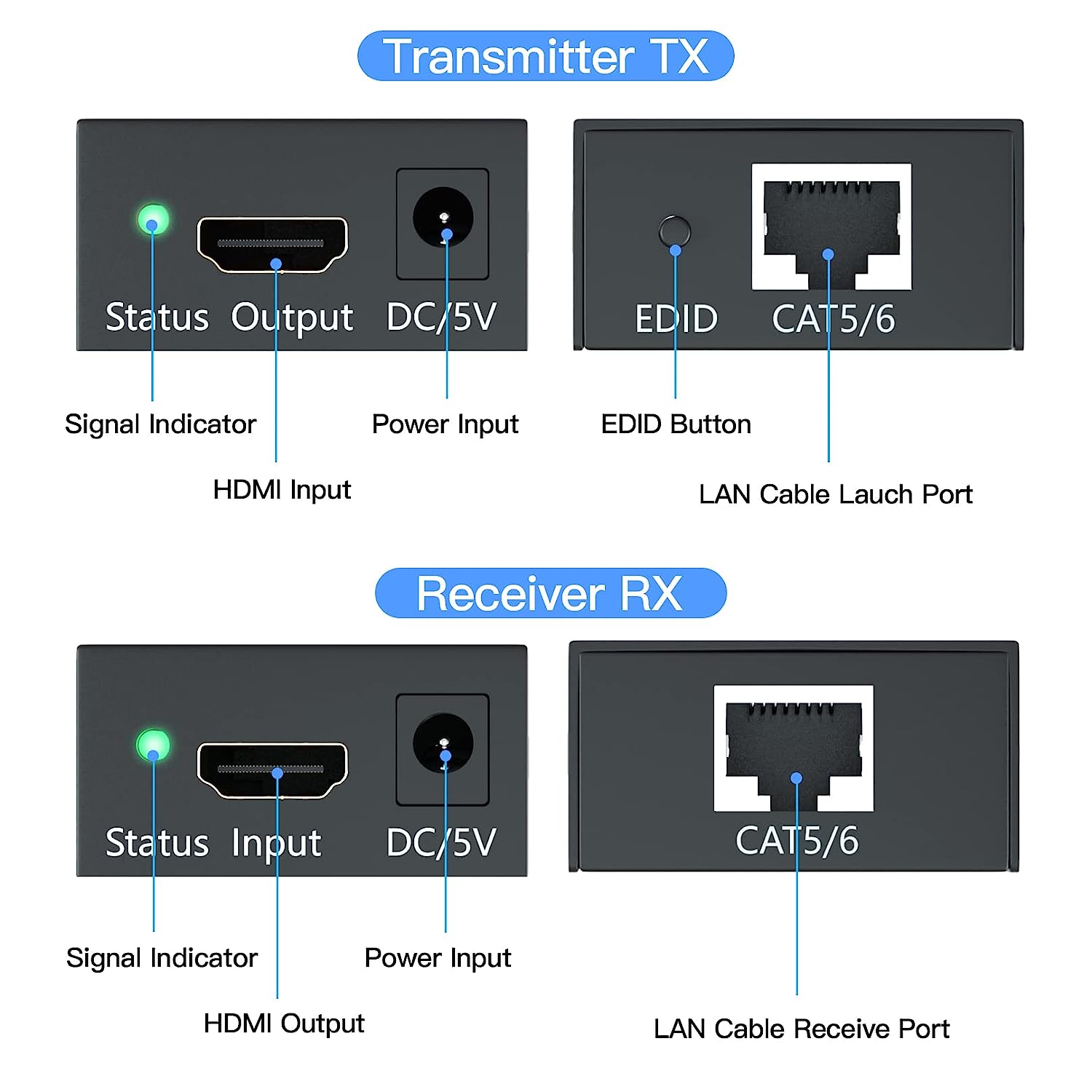

EDID copy
- Connect the sender and the monitor with an HDMI cable.
- Connect the power and press the EDID button,indicator will flash 3 times.
- After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation.
(Sender is connected to the power supply, press and hold the EDID button for 3 seconds, the signal indicator lights up, and then turns off, which means to restore the factory settings)

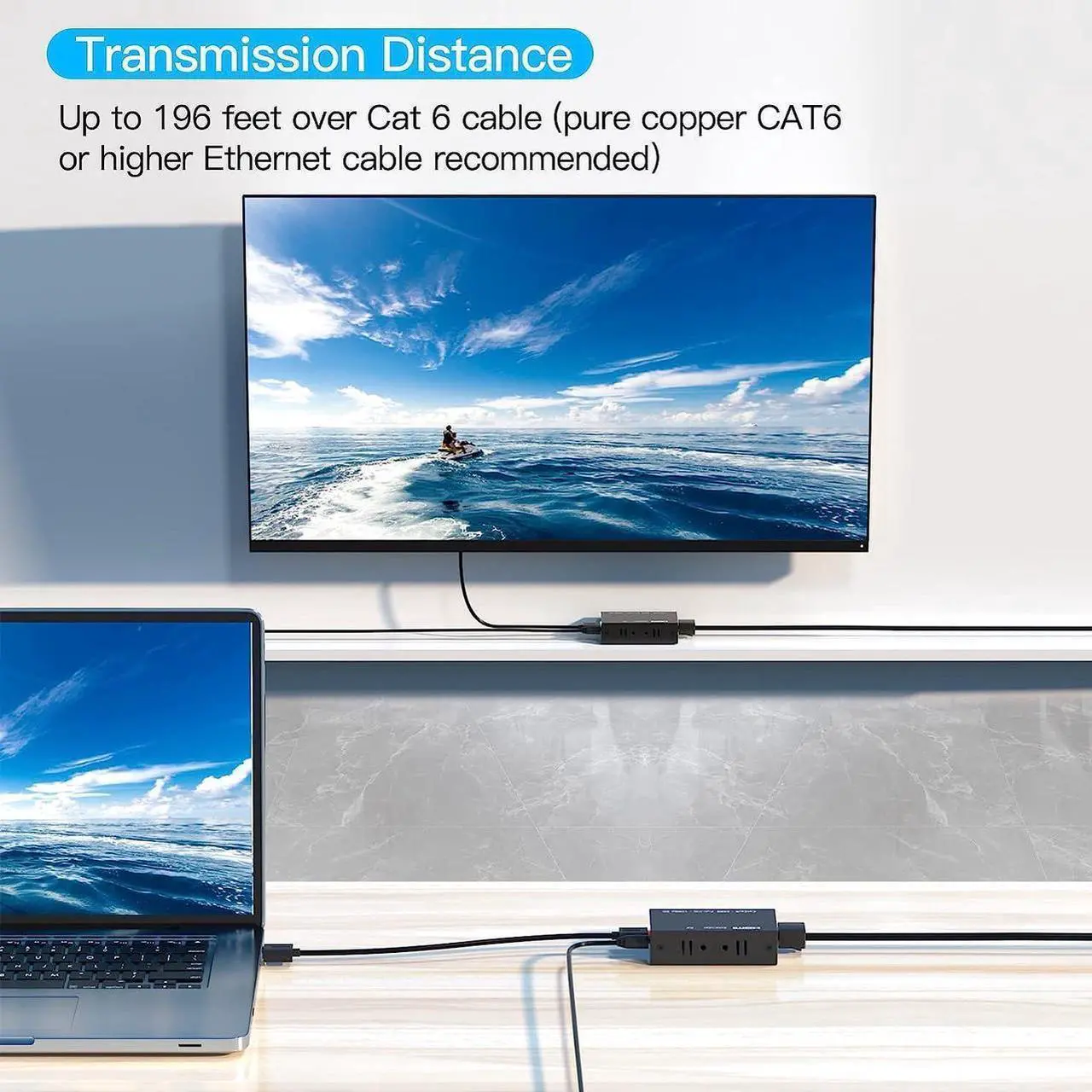

Long distance

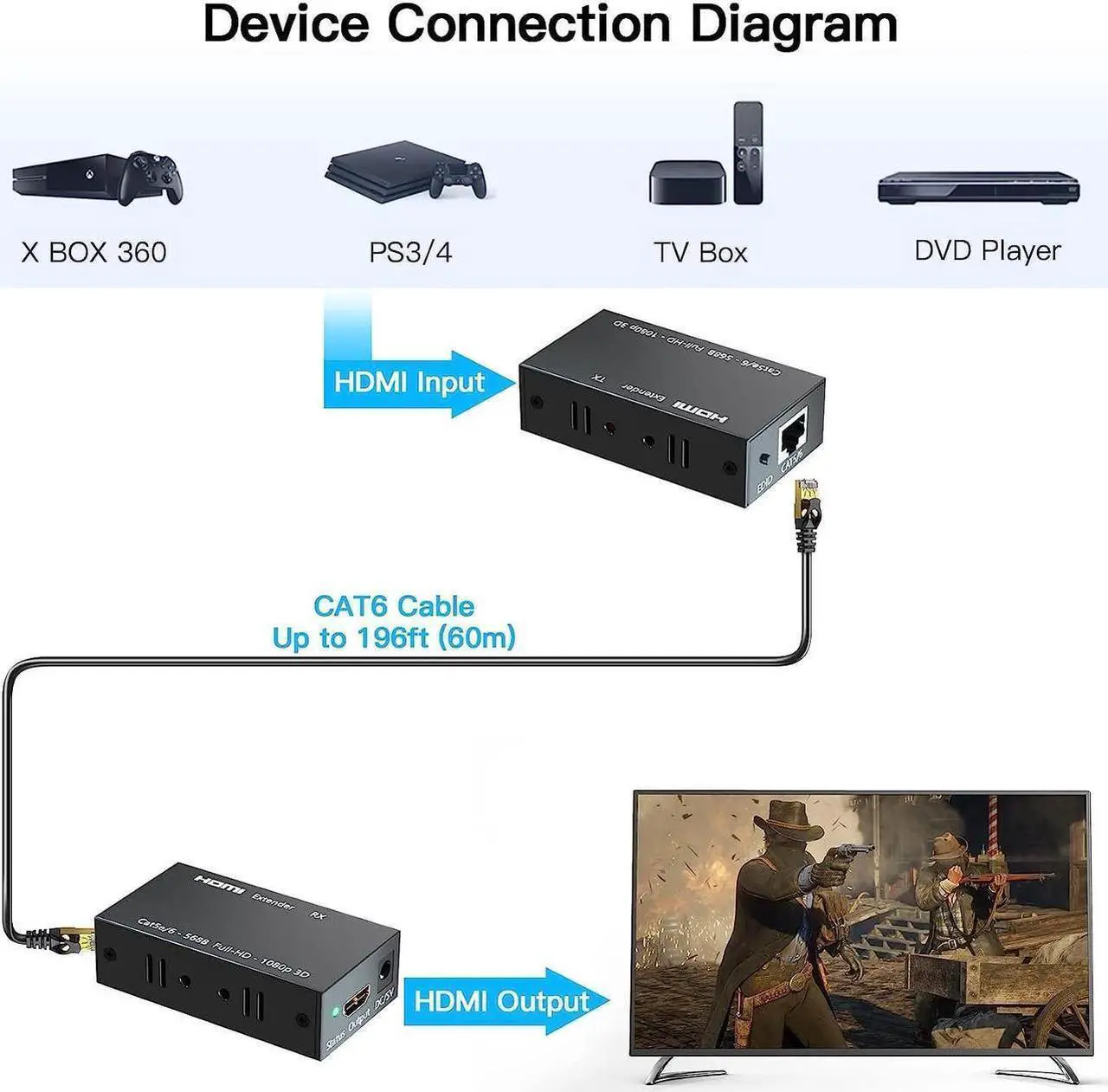

- Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender
- Our equipment supports 3D effects to give you an immersive experience
- Note: Requires both your input and output to support 3D functionality

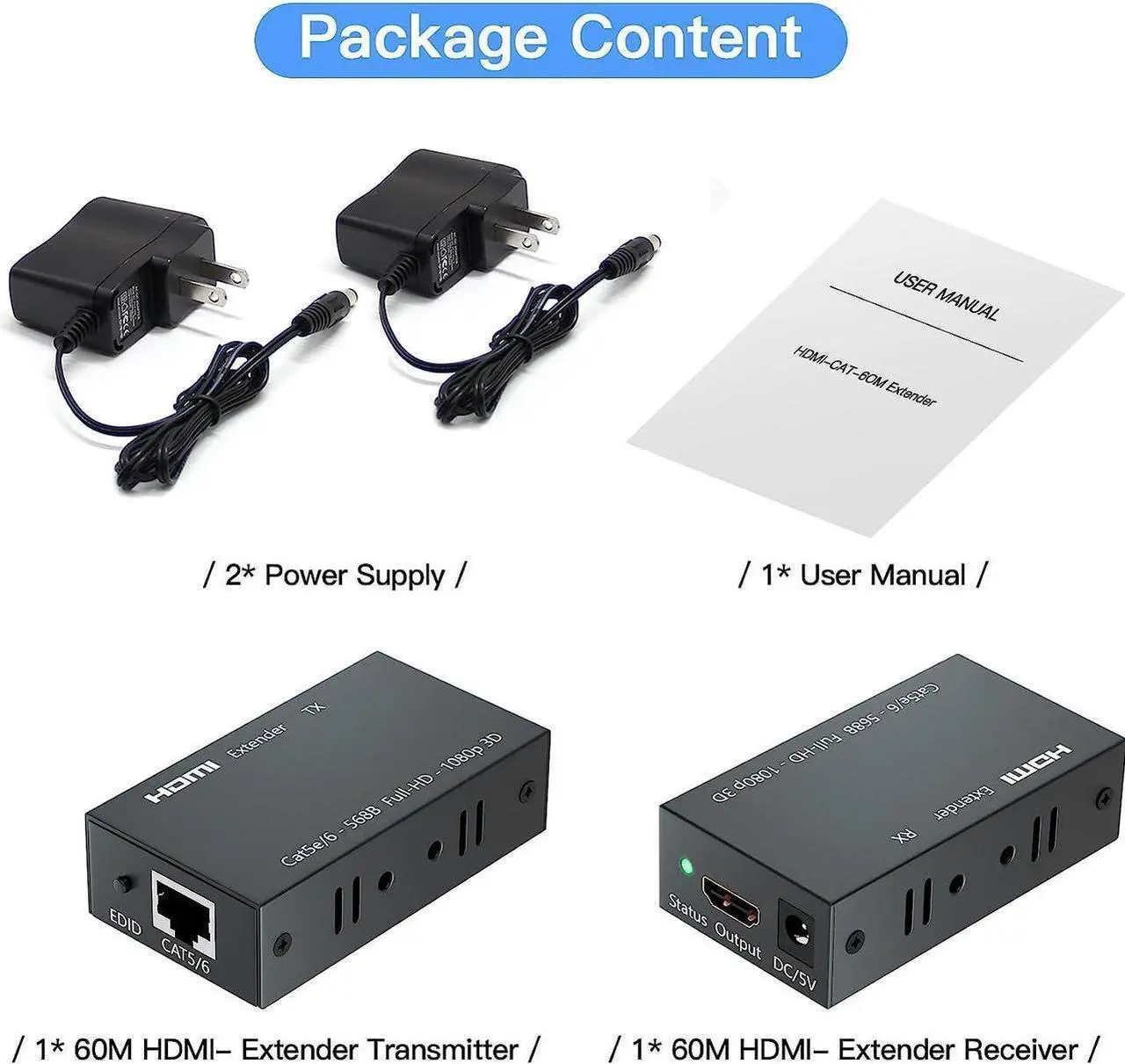

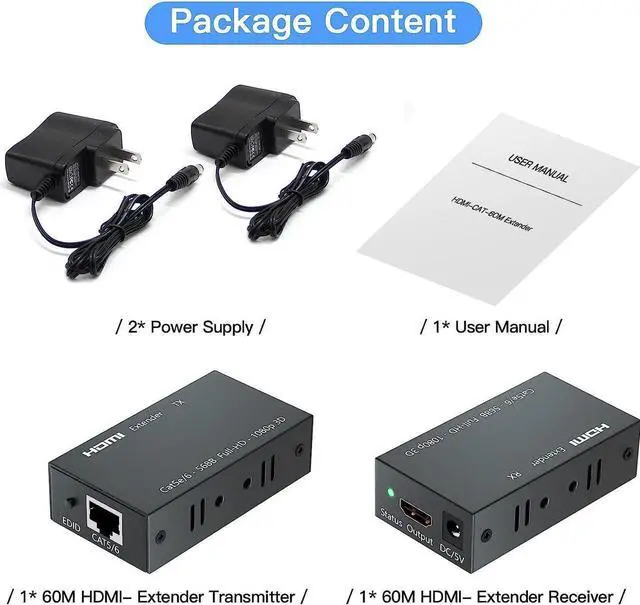

Products include
- HDMI sender x 1
- HDMI Receiver x 1
- 5V DC power supply x 2
- User's Manual x 1
