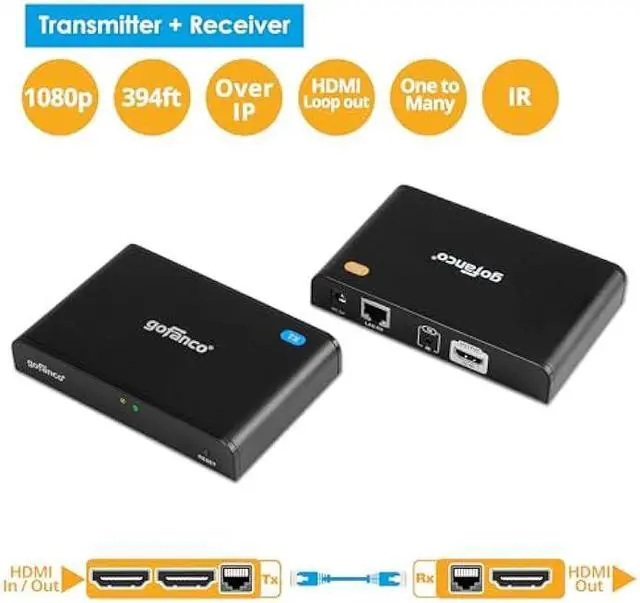

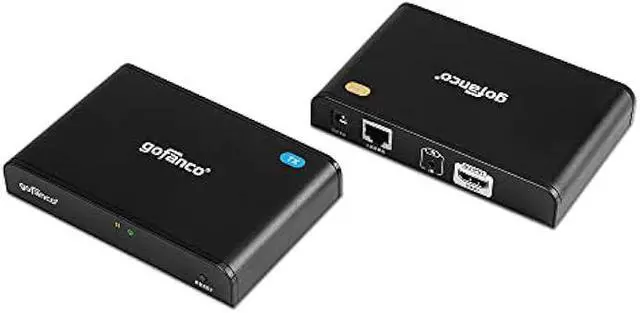

gofanco 1080p HDMI Extender Over IP Kit - 395ft/120m, 1-to-1 Over CAT5e/6, 1-to-Many Over 1G Gigabit Ethernet Switch, Network LAN, VLAN, Scalable, Loopout, IR Extension (Part# HDBitTPRO, New v2.0)

395FT HDMI EXTENSION With a single CAT5e/6/7 cable, you can easily create an HDM signal booster for up to 394ft with the HDbitTPRO (TX/RX kit, version 2.0 ). Direct 1-to-1 connection, 1-to-many through Gigabit network switches. Additional receivers (part# HDbitTPRO-RX, version 2.0 ) are sold separately. *Important
Note*: Version 2.0 is NOT backward compatible with the previous version Extender Kit and Receivers (RX)

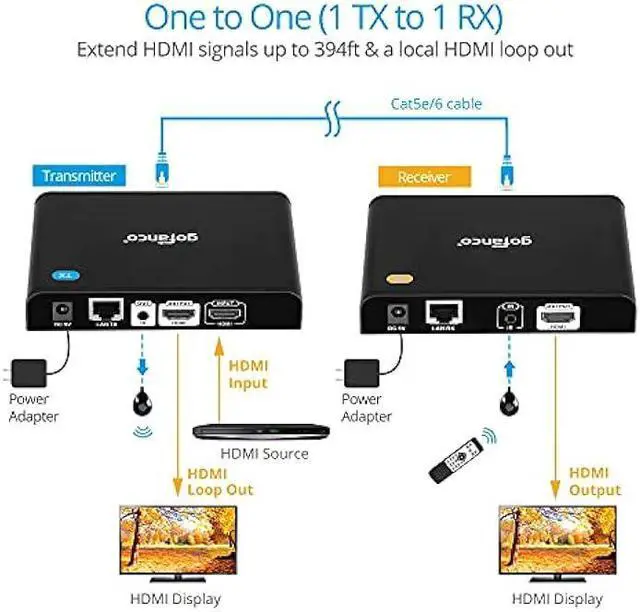

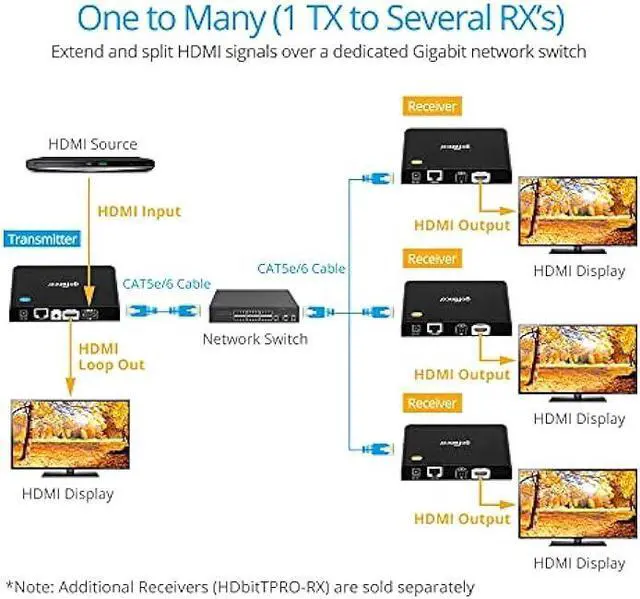

NETWORK DISTRIBUTION Connect up to 255 receivers per transmitter. Direct 1-to-1 connection, 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). We recommend gofanco 24-port video Ethernet switch (EthSwitch24P-2); Don't use home routers for this
LOW BANDWIDTH USAGE Support 1080p Full HD resolution; supports 480i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search CAT6UTP-100/CAT6UTP-150 on

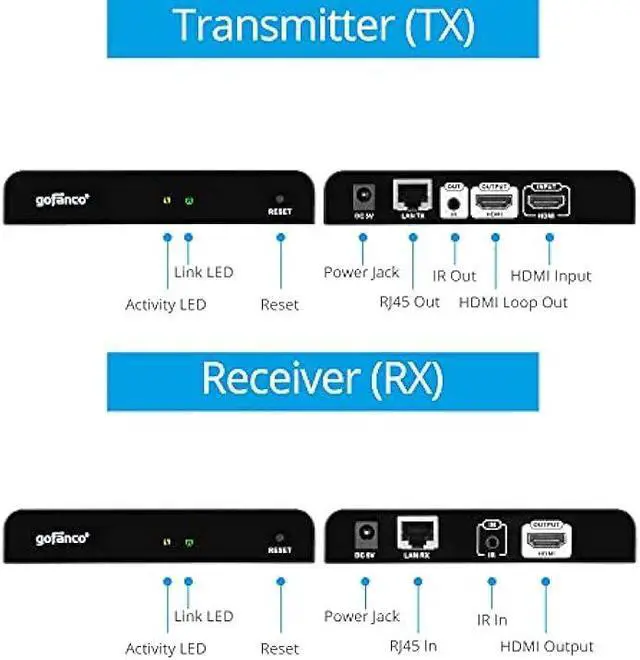

HDMI LOOPOUT HDMI Transmitter is equipped with 2 port HDMI splitter; Additional HDMI output on the Transmitter to connect to a local display for monitoring. Supports IR extension, allowing source device to recognize remote commands
SIMPLE INSTALLATION No driver required; Sturdy metal enclosure provides durability and minimizes EMI noise interference. FCC, CE & RoHS compliant. If you have any questions, click on our name in the buy box and select Ask a Question to reach our experienced technical support team in Silicon Valley
