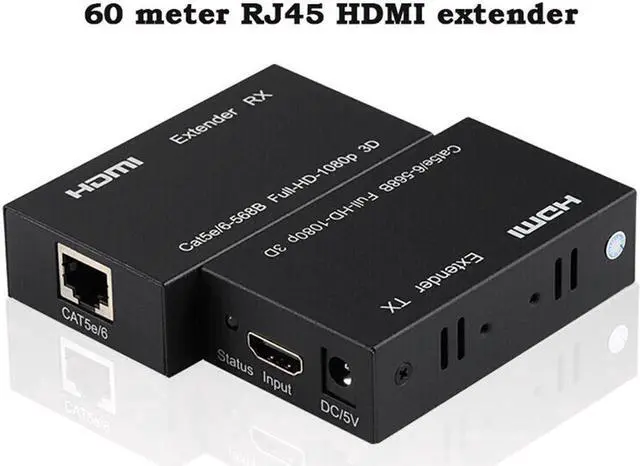

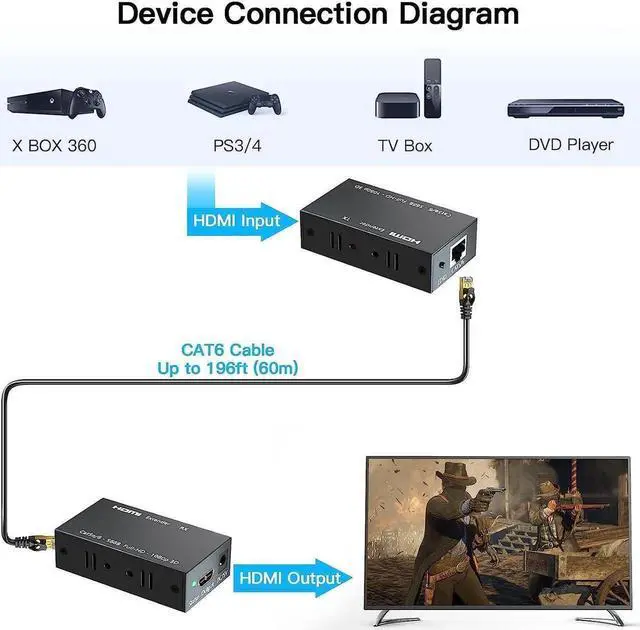

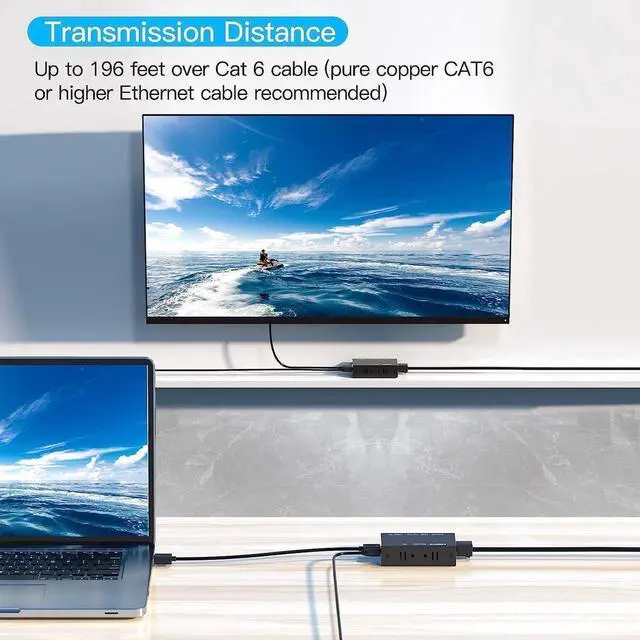

The HDMI extender can use a CAT5/6 cable to transmit the HDMI signal to a display no more than 196ft.
Specification:
Support resolution: 3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz
Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max transmission bandwidth: 1.65G bps
Input/Output HDMI cable distance: 16ft (5m) AWG26 HDMI standard cable
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V
Attetion:
1. This HDMI ethernet extender can not work with ethernet router or switcher.
2. Your ethernet cable must follow standard IEEE-568B. Oxygen free copper CAT6 ethernet cable is recommended because the quality of ethernet cable will effect the transmission distance and quality.
3. Maximun resolution of HDMI input supports 1920*1080P@60hz. Not support 4K HDMI.
4. This HDMI to RJ45 and RJ45 to HDMI transmitter does not have IR function.
2

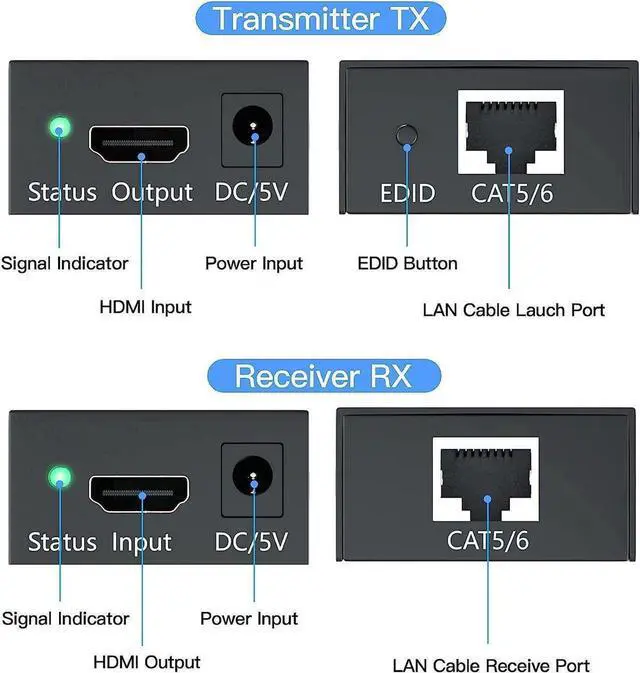

EDID copy
Connect the sender and the monitor with an HDMI cable.
Connect the power and press the EDID button, indicator will flash 3 times.
After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation.
(Sender is connected to the power supply, press and hold the EDID button for 3 seconds, the signal indicator lights up, and then turns off, which means to restore the factory settings)
