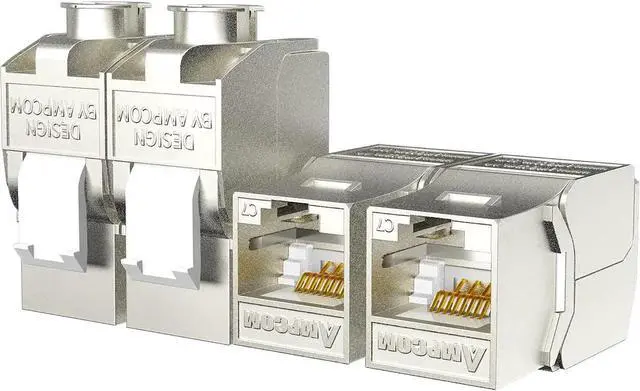

10-Pack RJ45 CAT 7 Tool-Less STP Shielded Keystone Jack, Self-Locking Cat7 Keystone Zinc Alloy Module Adapter No Punch-Down Tool Required Coupler for Wall Plate
Limited time offer, ends 01/09 By Smart core
- This fully shielded self-locking CAT 7 keystone jacket is tool free.It is designed for easy, Snap-In Assembly for different fitments, such as Keystone patch panels, surface mount boxes or wall plates (face plates)
- CAT 7 | 8P8C Connector; Shielding | Max Signal Transfer 1000 MHz | 180 degree | Nickel-plated, solid zinc-plated casing | 50 Gold plated contacts with dust cover, prevent the oxidization | smoothly snap-in and snapping stable
- Cat 7 performance to future-proof your network |Backwards compatible to 10MB/100MB/1000MB/10GB Ethernet CAT6A CAT5E CAT6 CAT6A |in compliance with the ANSI/TIA/EIA 568-C.2 standard
- Supports T568A and T568B wiring with color coded 110 blocks. It Supports 110 or Krone dual type termination and accepts 22 or 26 AWG solid Ethernet patch cables

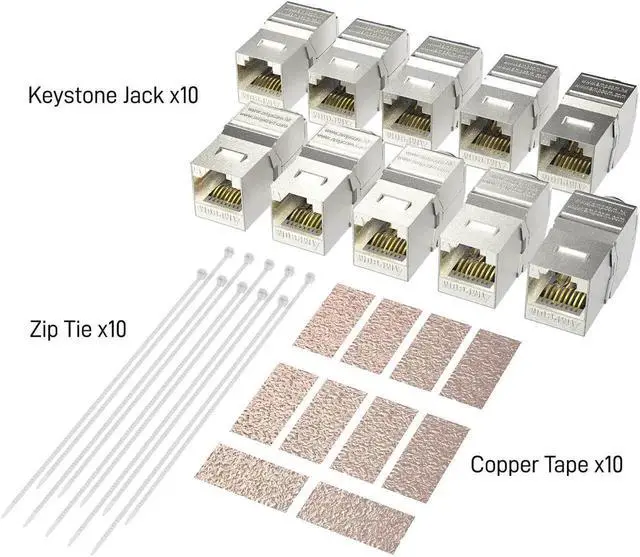

- Package include: 10 x STP CAT 7 Keystone module Connectors; 10 x Nylon Cable Zip Ties
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
For use with blank keystone patch panel, wall plates and surface wall mount box.
These metal keystone jacks are Perfect for building up your 10 Gigabit reliable cabling system, eliminates EMI and crosstalk ensuring peak performance and data integrity.
Tool-less design with T568A and T568B color-coded labeling for easy cable termination.
Suitable for applications that use 22-26 AWG solid state and stranded network cables
Backward compatible with Cat 5/5e/6/6A cable connection
ATM-25/ATM-51/ATM-155 network connections
100 VG-AnyLan network connections
TR-4/TR-16 Active/TR16 Passive network connections
Shielded Cat 7 Applications
For network date & voice applications

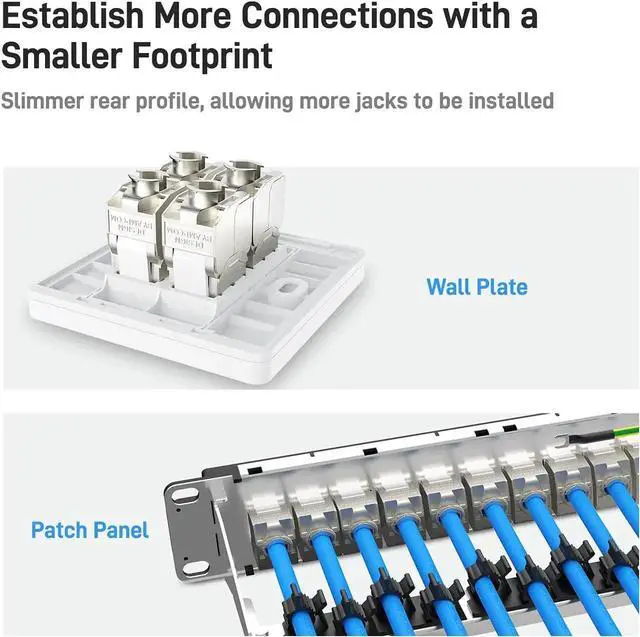

Install in a patch panel, wall plate or surface mount box
Reliable Housing
Secure termination cover - prevent accidental contact with metal shell

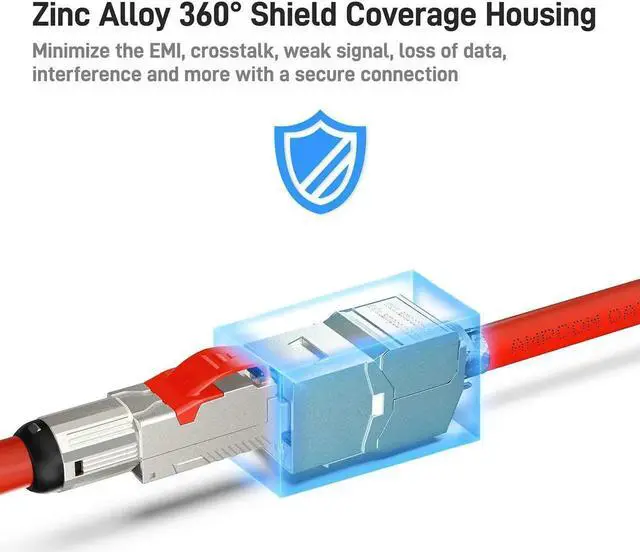

Metal Shell - zinc alloy shielding

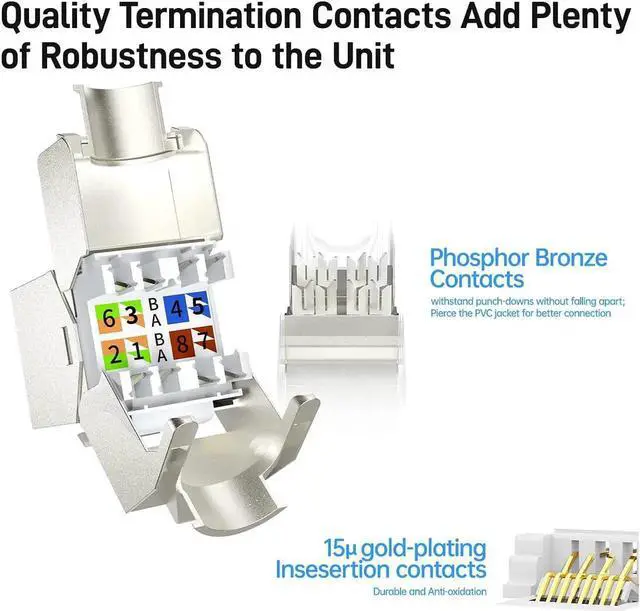

Industrial RJ45-8P8C Pin
Gold plated phosophor bronze contacts maintains optimum conductivity bewteen two cables
Avoiding corrosion, Insertion life750 Times
1
1
1
Secure Termination Options
T568A/B color-coded tool-free cap
One cable tie is included in pakage

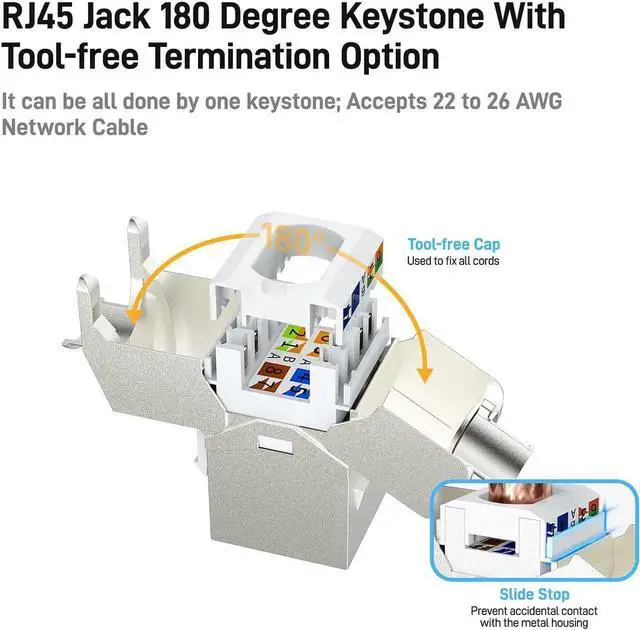

180 Degree Tool Free Design

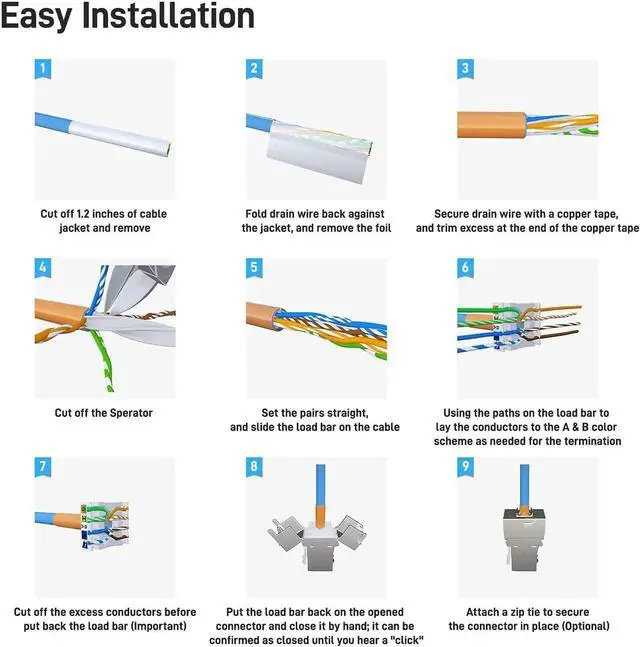

No punch-down tool is required, as cable conductors can be terminated by a 180 Degree snap-fit cap being pressed into place. Its super easy to install and use with this convenient wire separation diagram on the cap.
Outside Diameter Compatibility
Accommodates a wide range of shielded/unshelded Ethernet cables from 22 to 26 AWG
Backwards compatible with Cat6A, Cat6, Cat 5e
