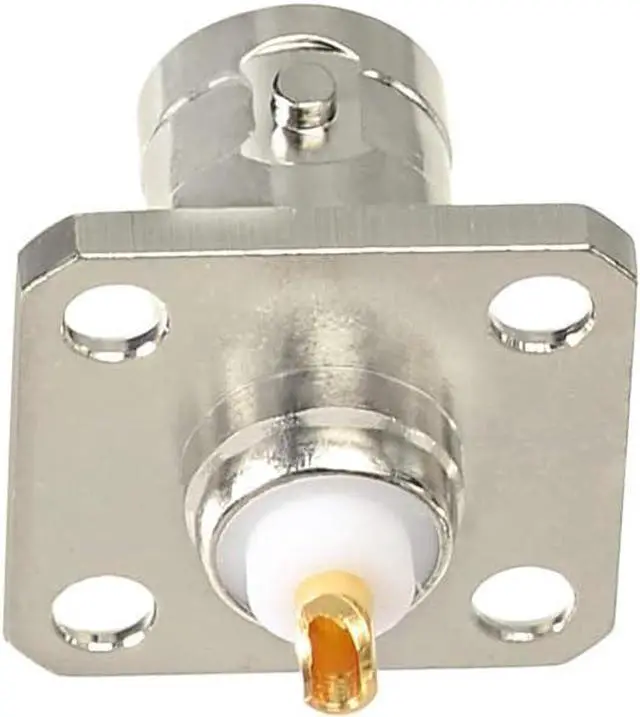

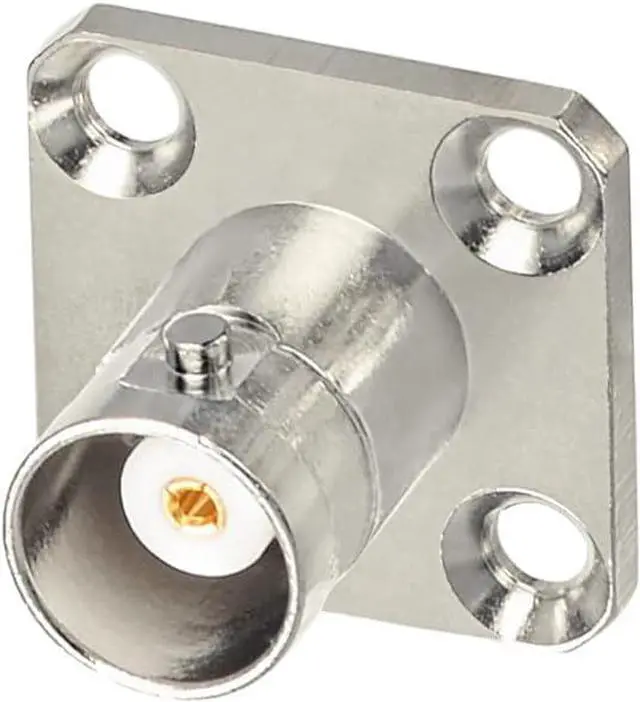

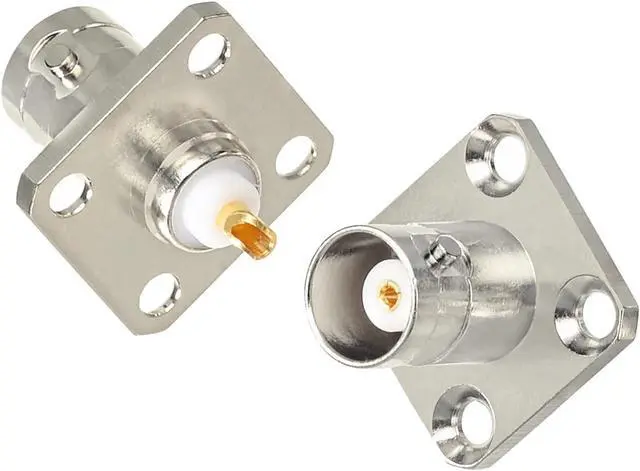

Superbat BNC Connectors BNC Female Jack 4 Hole Flange Panel Chassis Mount Coaxial Solder Connector 5pcs
- Type: BNC female plug bulkhead solder flange mount connector
- Attachment Method: Solder | Mount Method: 4 Hole Flange | Interface Type 1: Solder Cup| Interface Type 2: BNC female jack
- Impedance: 50 ohm | Body Material: Brass | Body Plating: Nickel | Dielectric Type: PTFE | BNC female 4 hole flange connector uses shield/contact solder as an attachment method.
- Application: These bnc connectors are easy to solder to monitors, broadcast , telecommunication devices, test equipment, test boards, modules, RF Applications, PC/LAN board, amateur radio transceivers and amplifiers, Cable Modems etc.

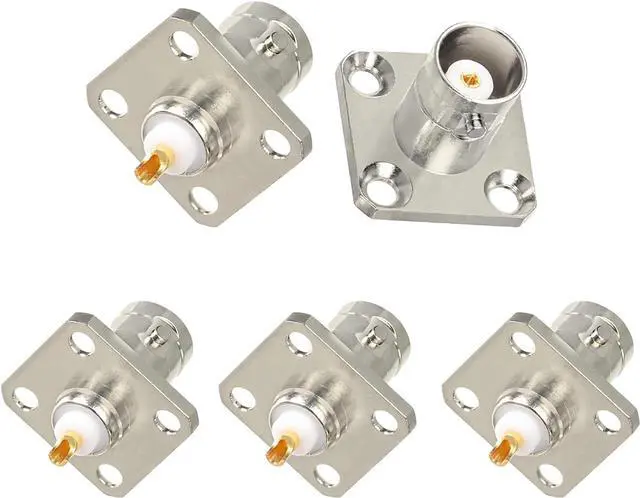

- Package Incluce: 5pcs RF BNC small square plate BNC female flange PCB board welding joint
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type: BNC female plug bulkhead solder flange mount connector
Attachment Method: Solder |
Mount Method: 4 Hole Flange |
Interface Type 1: Solder Cup| Interface Type 2: BNC female jack
Impedance: 50 ohm |
Body Material: Brass |
Body Plating: Nickel |
Dielectric Type: PTFE | BNC female 4 hole flange connector uses shield/contact solder as an attachment method.
Application: These bnc connectors are easy to solder to monitors, broadcast, telecommunication devices, test equipment, test boards, modules, RF Applications, PC/LAN board, amateur radio transceivers and amplifiers, Cable Modems etc.
Package Incluce: 5pcs RF BNC small square plate BNC female flange PCB board welding joint
Attachment Method: Solder |
Mount Method: 4 Hole Flange |
Interface Type 1: Solder Cup| Interface Type 2: BNC female jack
Impedance: 50 ohm |
Body Material: Brass |
Body Plating: Nickel |
Dielectric Type: PTFE | BNC female 4 hole flange connector uses shield/contact solder as an attachment method.
Application: These bnc connectors are easy to solder to monitors, broadcast, telecommunication devices, test equipment, test boards, modules, RF Applications, PC/LAN board, amateur radio transceivers and amplifiers, Cable Modems etc.
Package Incluce: 5pcs RF BNC small square plate BNC female flange PCB board welding joint
