M23 12Pin Female to RJ45 Servo Motor Encoder Cable for LXM32 Servo Drives Compatible with VW3M8102R15(1.5M/4.92FT)

Be the first to review this product...

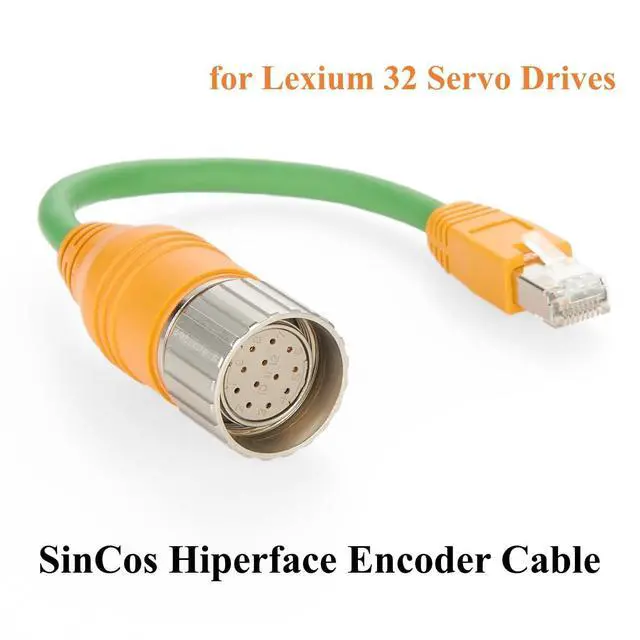

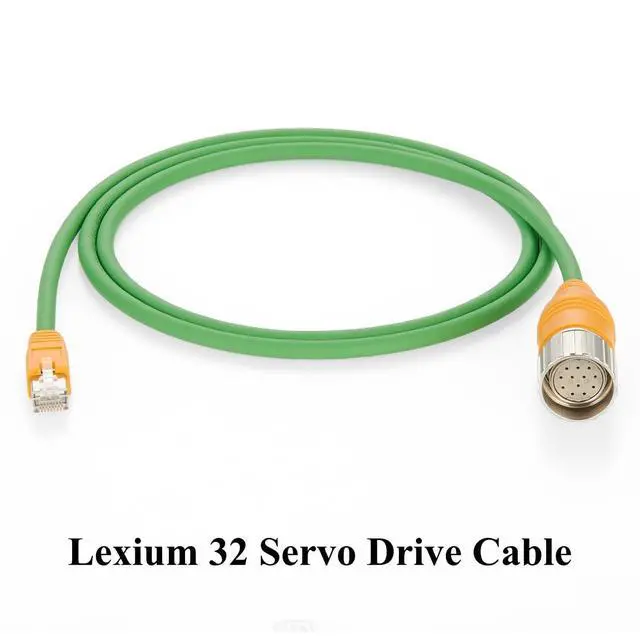

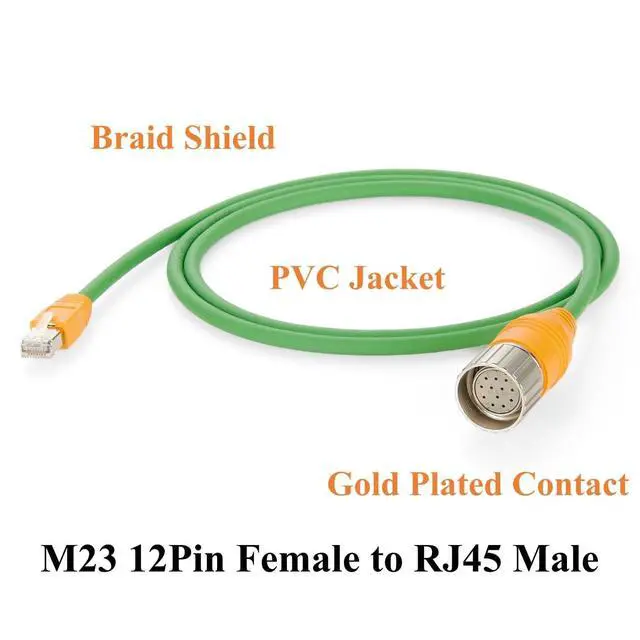

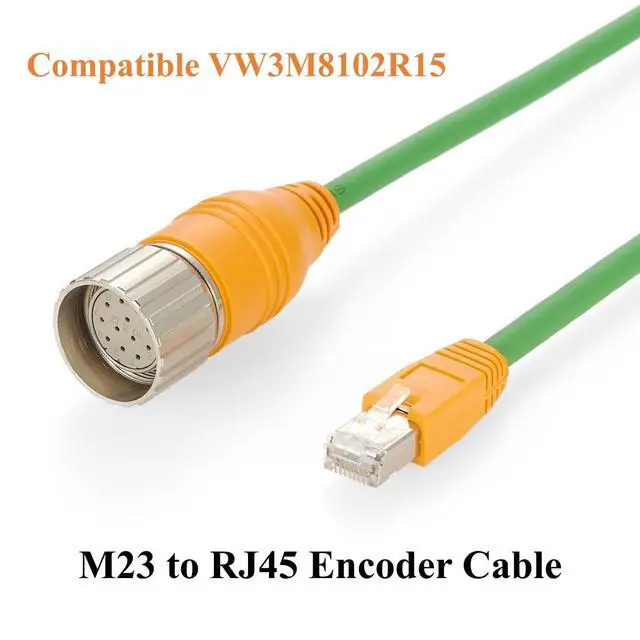

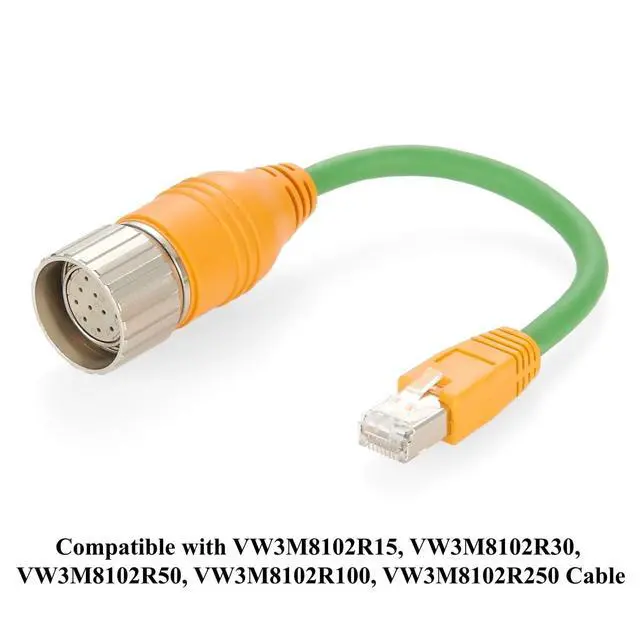

Wide Compatibility M23 to RJ45 Cable, Compatible with VW3M8102R15, VW3M8102R30, VW3M8102R50, VW3M8102R100, VW3M8102R250 Cable. for Lexium 32 Systems, BMH/BSH Series Servo Motors and other Compatible Servo Applications.; Premium Encoder Cable SinCos Hiperface Encoder Cable, Ensures Reliable Connection between M23 Encoder on Servo Motor and RJ45 Input on Lexium 32 Servo Drives.; High Quality & Durable M23 to RJ45 Encoder Cable, Multi-Core Design, Woven Shielding + Inner Insulating Strip, Provide Excellent EMI/RFI Protection. PVC Jacket, Abrasion-Resistant, Oil-Resistant, and Flame-Retardant. for Cable Chains, Mechanical Movement, and Vibration Environments.; Application M23 12Pin Female to RJ45 Male Cable, for LXM32 Servo System Connection, Transmits Hiperface/SinCos Encoder Signals, Robotics, Automation Equipment, CNC Machine and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Specification: Product

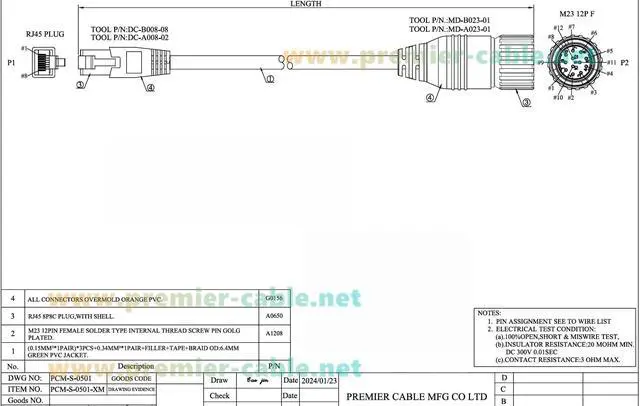

Name: M23 to RJ45 Servo Motor Encoder Cable for LXM32 DWG No.: PCM-S-0501
Connector A: M23 12Pin Female
Connector Connector B: RJ45 8P8C Male
Connector Length: 1.5M / 4.92FT
Contact: Gold Plated
Cable Type: ( 0.15MM **1Pair)*3PCS+ 0.34MM **1Pair+Filler+Tape+Braid, Green
PVC Jacket OD: 6.4MM
