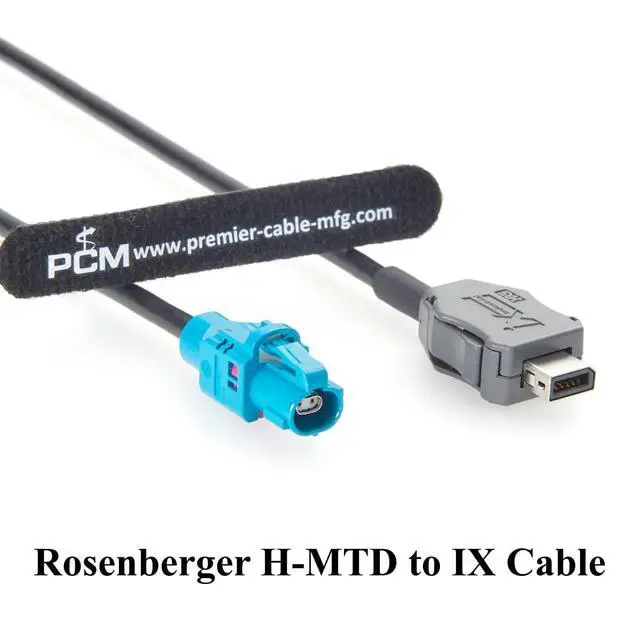

E6K10A-1CAZ5-Z H-MTD Female to IX Plug IX40G-A-10S-CV(7.0) Automotive Ethernet Cable 10Gbps 100/1000BASE-T1 in-Vehicle Network Cable for ADAS, Autonomous Driving, Car Cameras(1.5M/4.92FT)

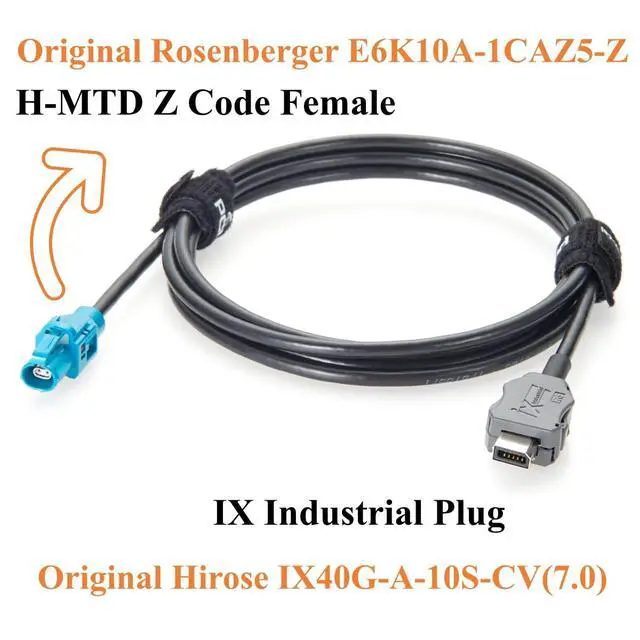

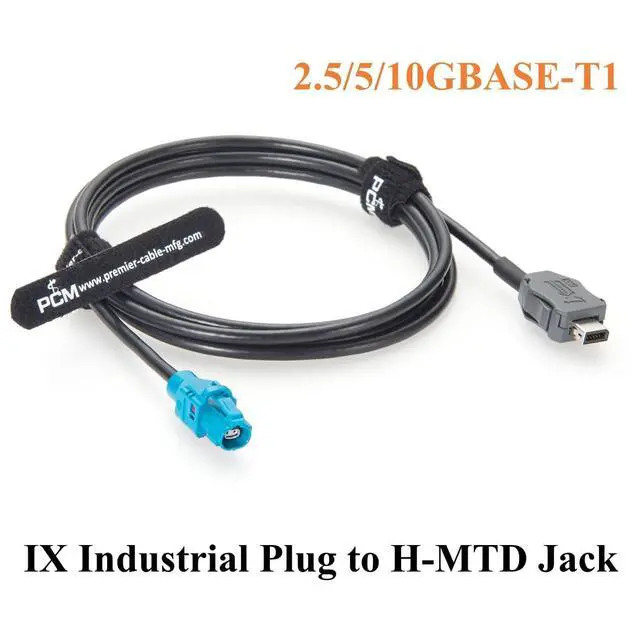

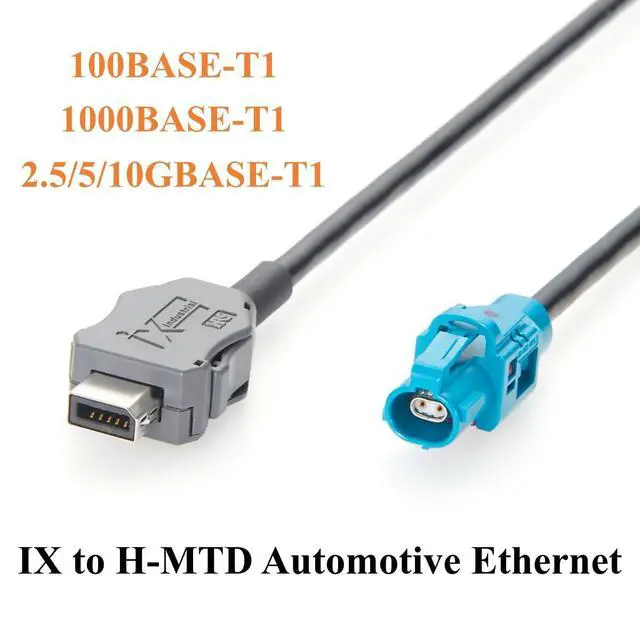

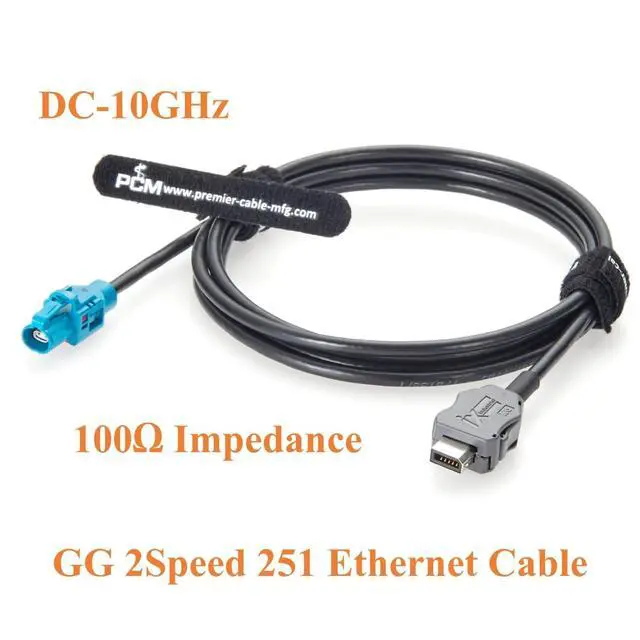

- Original Connector IX to H-MTD Automotive Ethernet Cable, One end Equipped with Original Rosenberger H-MTD Z Code Female Connector (E6K10A-1CAZ5-Z), Features Latch-locking Mechanism; and the Other End is Original Hirose IX Industrial Plug IX40G-A-10S-CV(7.0).; 10Gbps High Speed The IX Industrial Plug to H-MTD Cable, Supports up to 10Gbps Data Transmission, including 100BASE-T1, 1000BASE-T1, 2.5/5/10GBASE-T1. Designed for Modern Automotive Ethernet Networks.; Shielded Cable The Vehicle Ethernet Harness utilizes the GG 2Speed 251 Ethernet Cable, Multi-layer Shielding, 100 Impedance, DC-10GHz Frequency, Resist electromagnetic interference (EMI) and radio frequency interference (RFI).; Application 10Gbps H-MTD to IX Industrial Ethernet Cable for Automotive Ethernet Systems, ADAS, ECU, Autonomous Driving, In-Vehicle Infotainment, Automotive Ethernet Switches, Domain Controllers, In-Vehicle Cameras and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

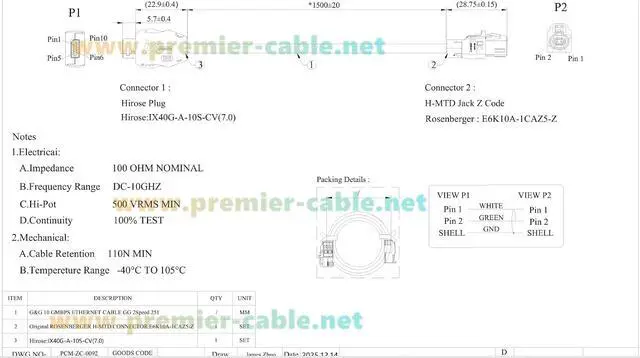

Specification: Product
Name: IX Industrial Plug to H-MTD Automotive Ethernet Cable
Part No.: PCM-ZC-0092
Connector A: IX Plug, Original Hirose IX40G-A-10S-CV( 7.0 )
Connector B: H-MTD Z Code Female Connector, E6K10A-1CAZ5-Z
Cable Length: 1.5M
Electrical Impedance: 100
Frequency Range: DC-10GHz
Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
Locking Mechanism: Latch-Locking
Operating Temperature: -40 °C to +105 °C
Name: IX Industrial Plug to H-MTD Automotive Ethernet Cable
Part No.: PCM-ZC-0092
Connector A: IX Plug, Original Hirose IX40G-A-10S-CV( 7.0 )
Connector B: H-MTD Z Code Female Connector, E6K10A-1CAZ5-Z
Cable Length: 1.5M
Electrical Impedance: 100
Frequency Range: DC-10GHz
Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
Locking Mechanism: Latch-Locking
Operating Temperature: -40 °C to +105 °C
