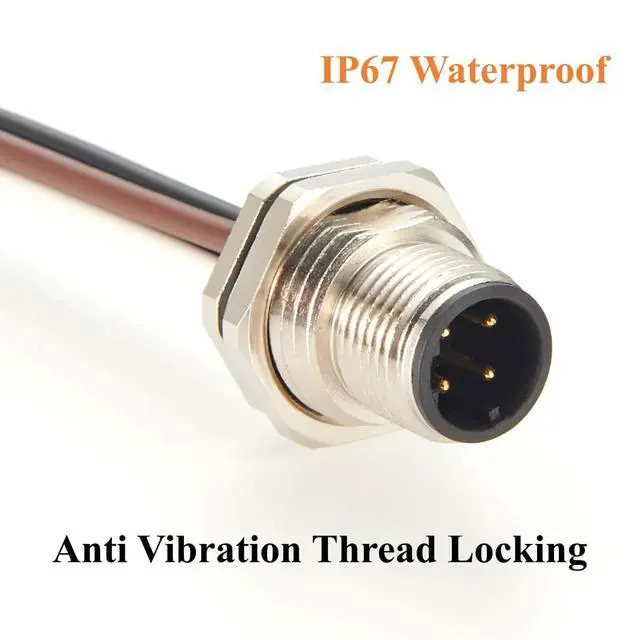

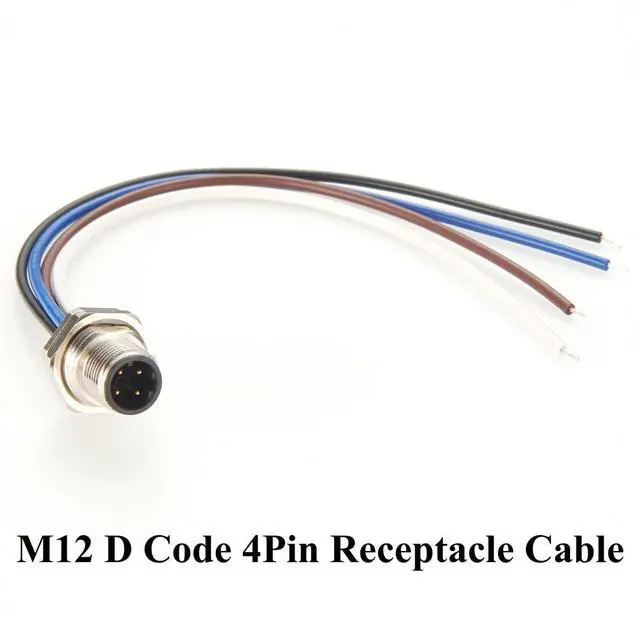

IP67 M12 D Code 4Pin Connector Receptacle Cable Front Panel Mount Straight Bulkhead Socket With Pre-Assembled Pigtail Electrical Cable for Profinet, EtherNet/IP, EtherCAT, Modbus TCP (Male, 20cm)

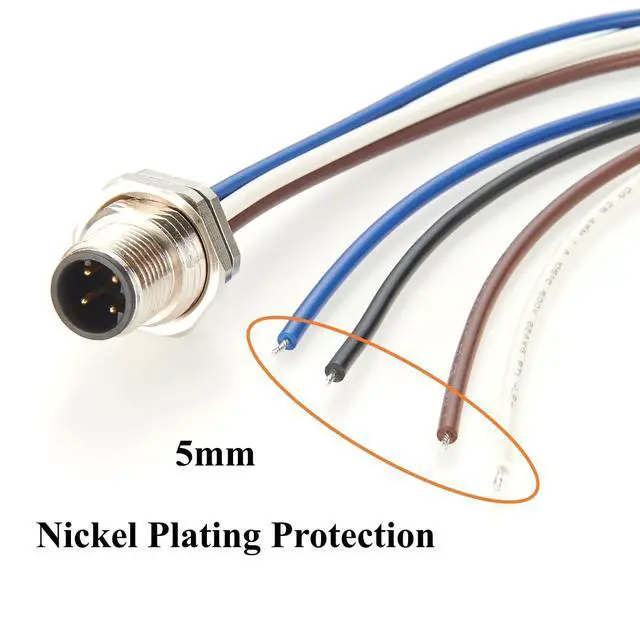

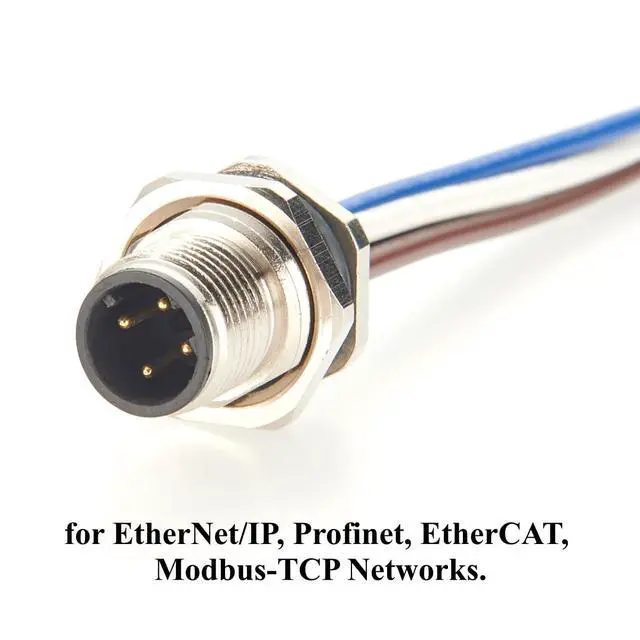

- Front Flush Panel Mount The M12 D Code 4Pin Male Connector is Bulkhead front panel mounting, Simply cut a 15.5mm~16mm hole in the board and secure with the nut. for control panels, automation systems, and industrial enclosures.; Threaded Connection M12 D Code 4 Pin Connector With thread locking mechanism, anti vibration locking design, 12mm thread joint can be easily connected to sensor and actuator devices and field bus components.; Pre-wired Cable M12 Circular Socket Receptacle Equipped with 20cm 22AWG Pre-attached Wires, simplifying installation by eliminating the need for additional wiring, for short-distance wiring in compact spaces.; IP67 Waterproof & Dustproof M12 Field Wireable Electrical Cable, Built with high-quality materials, with Seal Ring, IP67 Waterproof, providing excellent protection in harsh industrial environments.; Application M12 4Pin Front Panel Mount Cable Support EtherNet/IP, Profinet, EtherCAT, Modbus-TCP Networks Protocols. Also for Industrial Automation, Sensors, PLCs, Actuators, Robotics, Industrial Switches, Remote I/O Modules, Machine Vision, Industrial Camera, Control Systems and so on.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

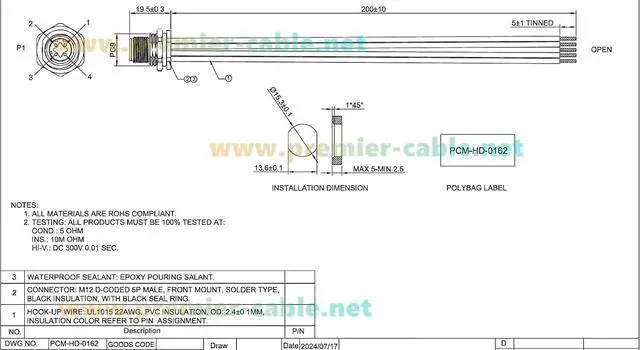

Specification: Product
Name: IP67 Waterproof M12 D Code 4Pin Connector Cable
Part No.: PCM-HD-0162
Connector Type: M12 D Code 4Pin Male
Panel Mount: Bulkhead Flush Front
Panel Mount Length: 20cm
Wire Gauge: UL1015 22AWG
OD: 2.4MM
Protection Class: IP67 Panel

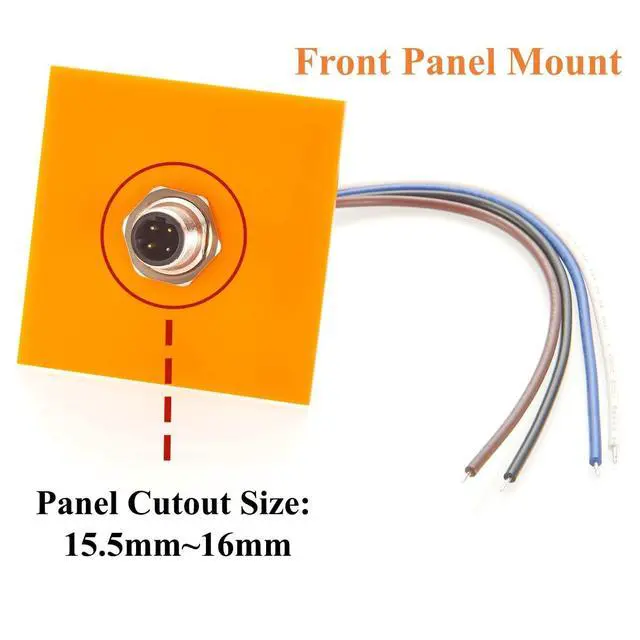

Cutout Size: 15.5 mm~16mm
Name: IP67 Waterproof M12 D Code 4Pin Connector Cable
Part No.: PCM-HD-0162
Connector Type: M12 D Code 4Pin Male
Panel Mount: Bulkhead Flush Front
Panel Mount Length: 20cm
Wire Gauge: UL1015 22AWG
OD: 2.4MM
Protection Class: IP67 Panel
Cutout Size: 15.5 mm~16mm
