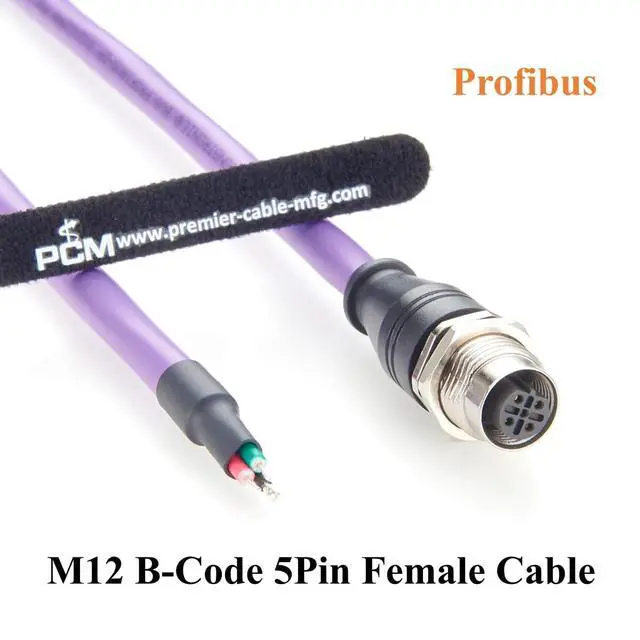

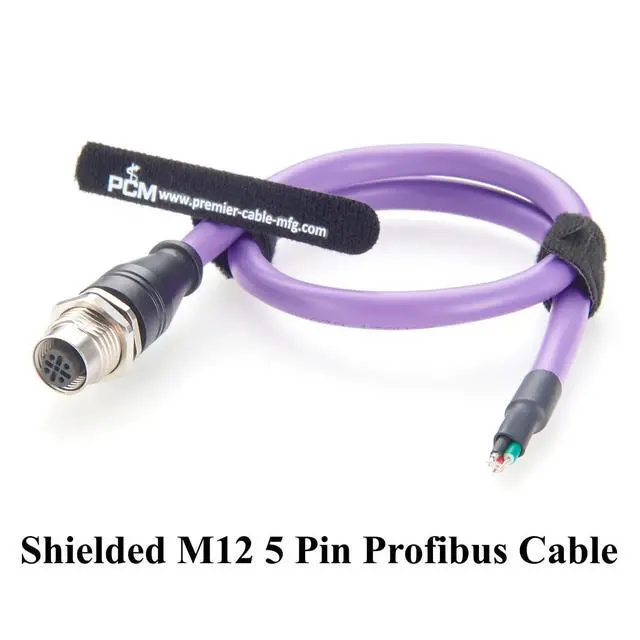

M12 B-Code 5 Pin Female Panel Mount Profibus Cable IP67 Shielded M12 to Open End Wire for Fieldbus Networks, Control Panels, Automation (Female, 0.5M/1.64FT)

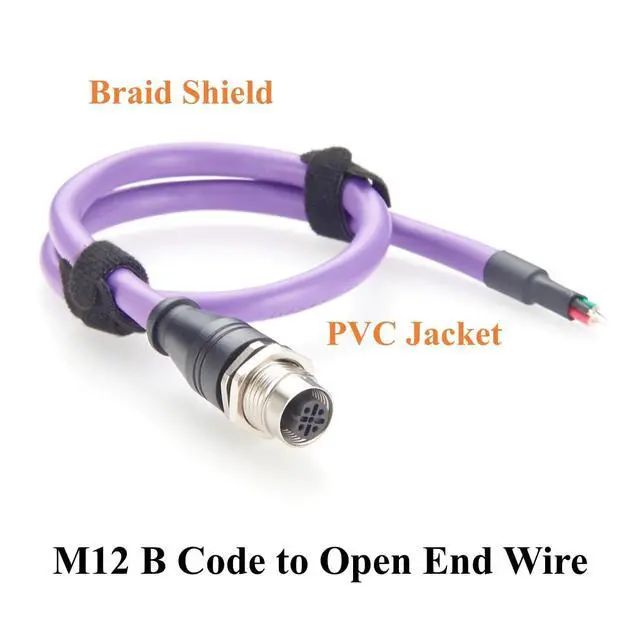

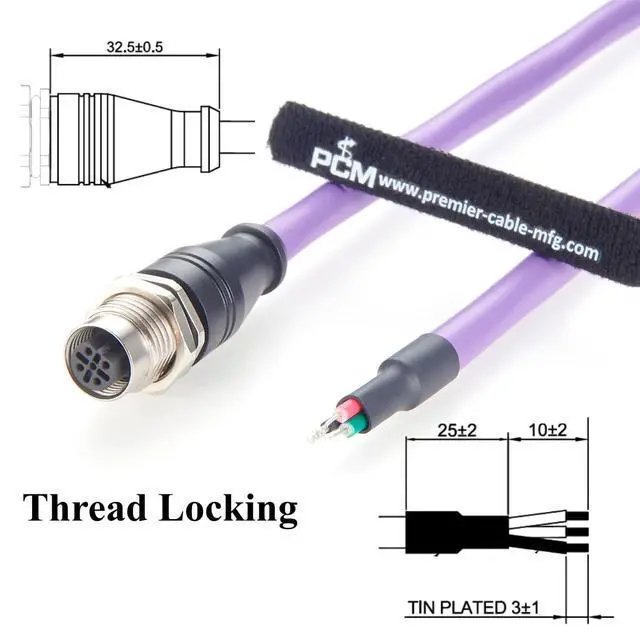

- IP67 M12 B-Code 5Pin Connector M12 B-Coding Bulkhead Panel Mount Cable, Designed with a standard M12 B-Code 5-Pin Female connector. It is Rated IP67 when mated, offering dustproof and waterproof protection for harsh industrial settings.; Open-End Wiring Shielded M12 5 Pin Profibus Cable, with Open-Ended Wires design, allows flexible wiring to terminal blocks, PLC controllers, junction boxes, and machine interfaces. for custom installations and field replacements.; Front Panel Mount M12 B Code 5 Pin Female to Open End Cable, With Front Panel Mount Bulkhead design, thread locking mechanism, Opening Size is 15.5~16mm, for installation on Control Cabinets, Equipment Enclosures, and Machine Panels.; High Quality & Shielded Profibus M12 5Pin Fieldbus Connector Cable, With Tin-Plated Copper Conductor, Braid Shield, for Superior EMI/RFI Protection. PVC Jacket, Wear Resistance, waterproof, oil-resistant, resistant to bending and wear for long-lasting performance.; Application M12 B Code Panel Mount Profibus Cable, for Profibus-DP, Interbus, PLC, Distributed I/O modules, Fieldbus Devices, Industrial Automation Networks, Factory Communication, Sensors, Process Control and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product

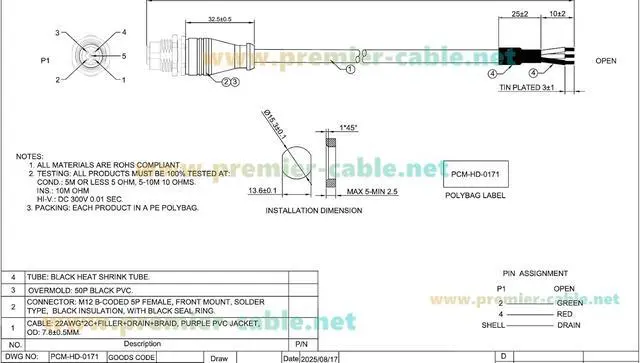

Name: M12 B-Coded 5Pin Female Panel Mount Profibus Cable DWG No.: PCM-HD-0171
Connector A: M12 B Code 5 Pin Female
Connector Connector B: Open
End Wire Length: 0.5M / 1.64FT

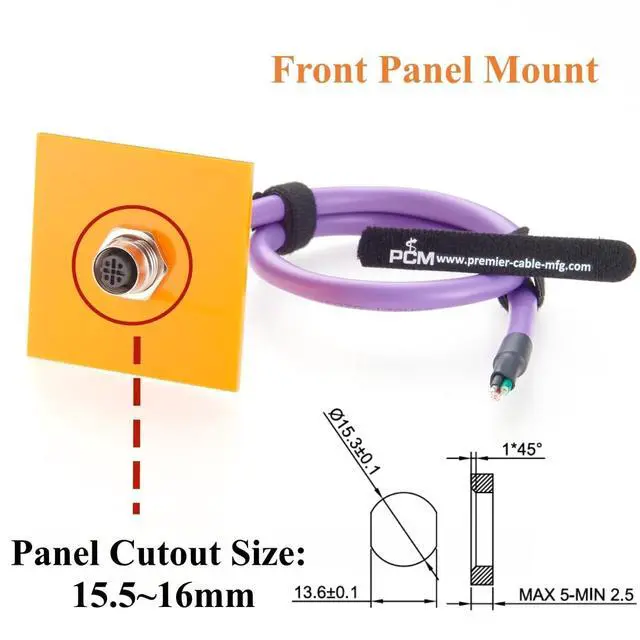

Panel Cutout Size: 15.5 ~16mm
Protection Class: IP67 (When Mated)
Wire Gauge: 22AWG*2C+FILLER+DRAIN+BRAID, PVC
Jacket OD: 7.8 + 0.2MM
Name: M12 B-Coded 5Pin Female Panel Mount Profibus Cable DWG No.: PCM-HD-0171
Connector A: M12 B Code 5 Pin Female
Connector Connector B: Open
End Wire Length: 0.5M / 1.64FT
Panel Cutout Size: 15.5 ~16mm
Protection Class: IP67 (When Mated)
Wire Gauge: 22AWG*2C+FILLER+DRAIN+BRAID, PVC
Jacket OD: 7.8 + 0.2MM
