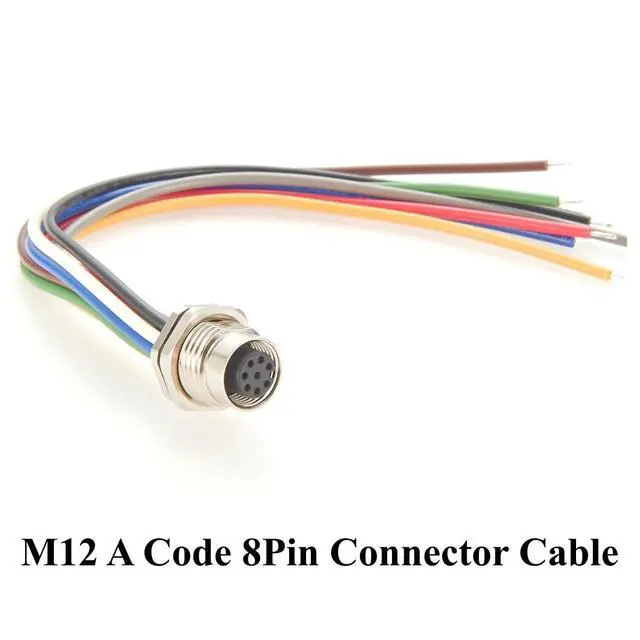

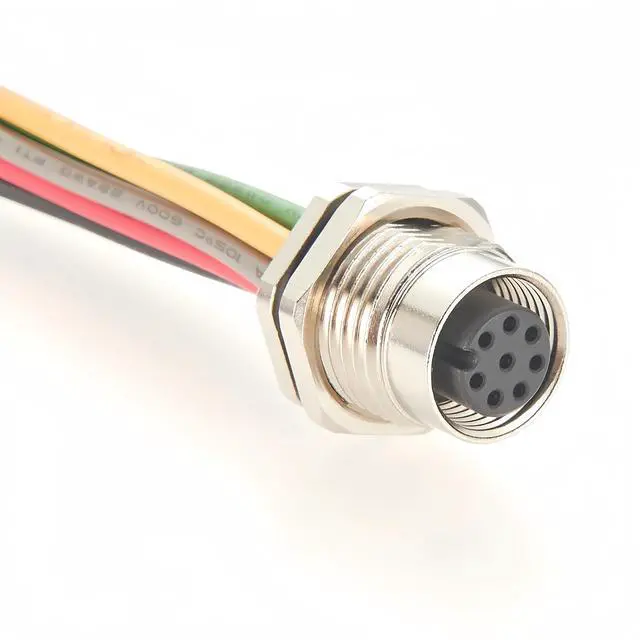

IP67 M12 8 Pin A Code Front Panel Mount Receptacle Cable Straight Bulkhead Socket Pre-Assembly Pigtail Wireable Electrical Cable for PLC, Sensor, I/O Modules (Female, 20cm)

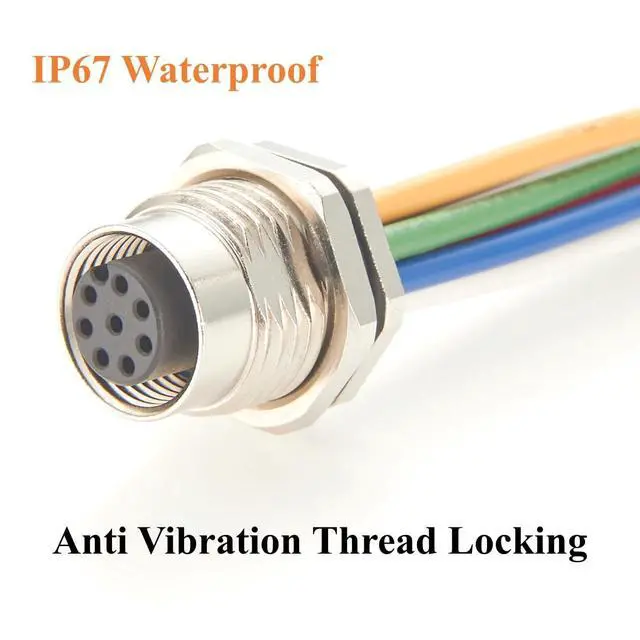

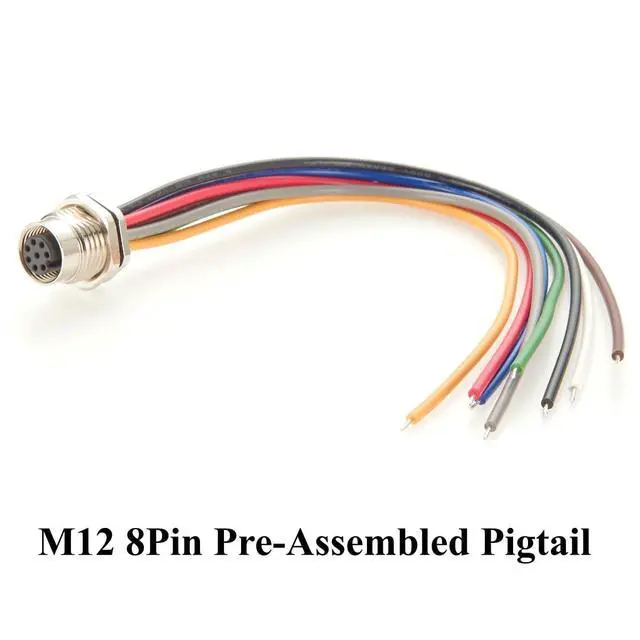

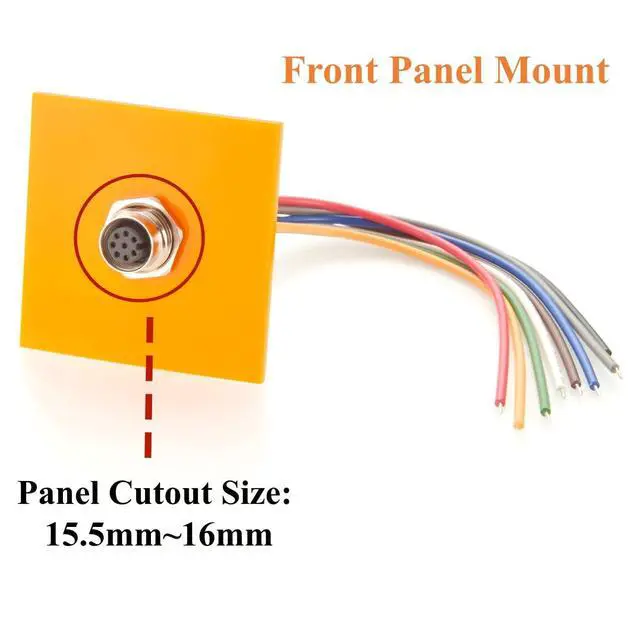

- Front Flush Panel Mount The M12 A Code 8Pin Female Connector is Bulkhead front panel mounting, Simply cut a 15.5mm~16mm hole in the board and secure with the nut. for control panels, automation systems, and industrial enclosures.; Threaded Connection M12 A Code 8 Pin Connector With thread locking mechanism, anti vibration locking design, 12mm thread joint can be easily connected to sensor and actuator devices and field bus components.; Pre-wired Cable M12 Circular Socket Receptacle Equipped with 20cm 22AWG Pre-attached Wires, simplifying installation by eliminating the need for additional wiring, for short-distance wiring in compact spaces.; IP67 Waterproof & Dustproof M12 Field Wireable Electrical Cable, Built with high-quality materials, with Seal Ring, IP67 Waterproof, providing excellent protection in harsh industrial environments.; Application M12 8Pin Front Panel Mount Cable Support CAN BUS, CANOpen, DeviceNet Protocols. Also for Industrial Automation, Sensors, PLCs, Actuators, Robotics, Industrial Switches, Remote I/O Modules, Control Systems and so on.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

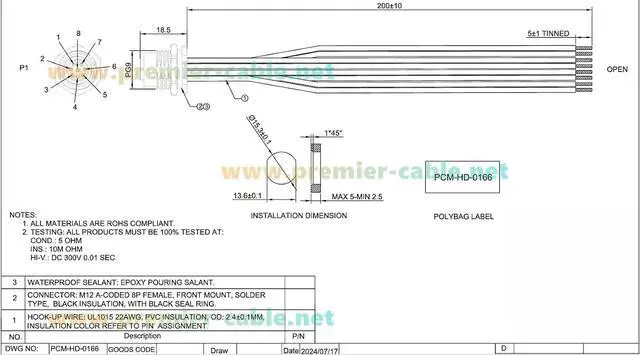

Specification: Product
Name: IP67 Waterproof M12 A Code 8Pin Connector Cable
Part No.: PCM-HD-0166
Connector Type: M12 A Code 8Pin Female
Panel Mount: Bulkhead Flush Front
Panel Mount Length: 20cm
Wire Gauge: UL1015 22AWG
OD: 2.4MM
Protection Class: IP67 Panel
Cutout Size: 15.5 mm~16mm
Name: IP67 Waterproof M12 A Code 8Pin Connector Cable
Part No.: PCM-HD-0166
Connector Type: M12 A Code 8Pin Female
Panel Mount: Bulkhead Flush Front
Panel Mount Length: 20cm
Wire Gauge: UL1015 22AWG
OD: 2.4MM
Protection Class: IP67 Panel
Cutout Size: 15.5 mm~16mm
