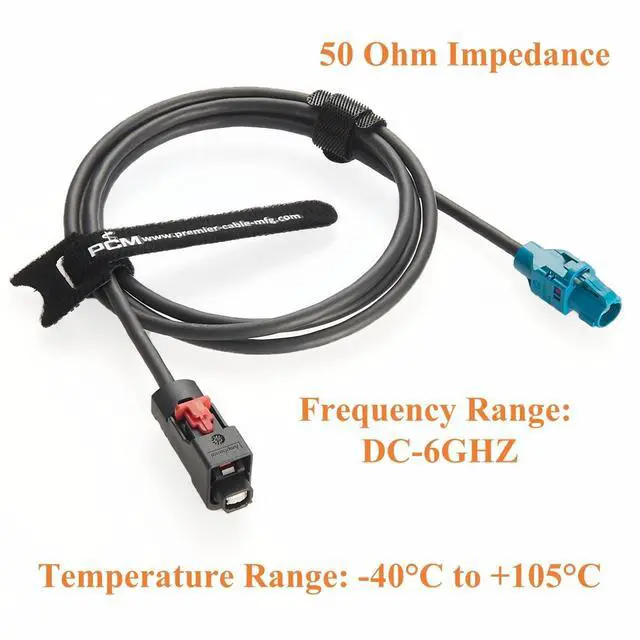

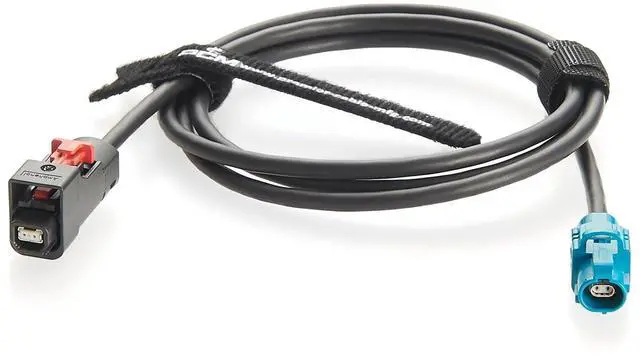

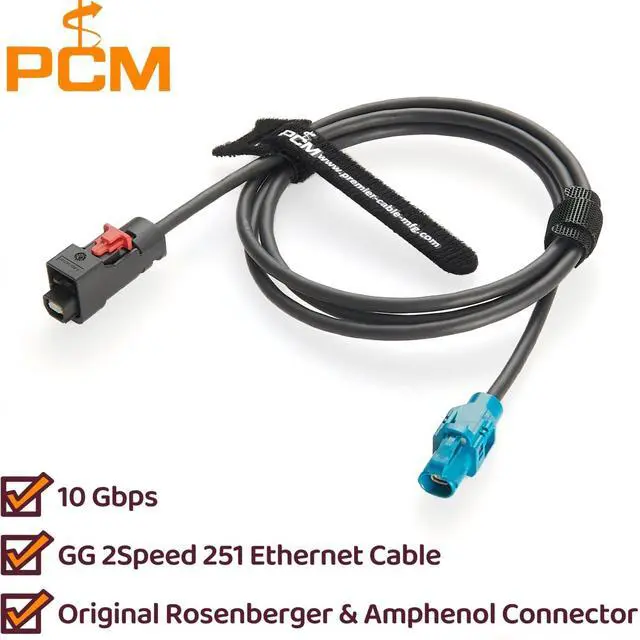

10Gbps NETBridge Female to H-MTD Female Automotive Ethernet Cable Amphenol NTHCF011A10S to Rosenberger E6K10A-1CAZ5-Z Car Wire Harness for ADAS, Camera, Infotainment, Telematics(1M/3.28FT)

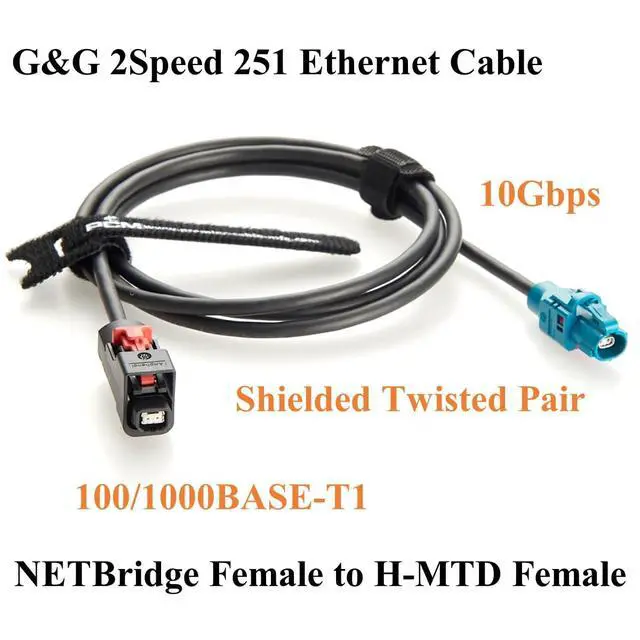

- Original Connector 10Gbps NETBridge to H-MTD Cable, Equipped with Original Amphenol NETBridge A Code Female Connector (NTHCF011A10S), and Original Rosenberger H-MTD Z Code Female Connector (E6K10A-1CAZ5-Z).; 10Gbps High Speed NETBridge To H-MTD Car Wire Harness, Compatible with 100BASE-T1 and 1000BASE-T1 Protocols, Support Data Transmission up to 10Gbps. Suitable for a variety of high-bandwidth applications, such as HD image and video transmission.; Shielded Cable The Vehicle Automotive Ethernet Harness utilizes the GG 2Speed 251 cable, Shielded twisted pair, 50 Impedance, DC-6GHZ Frequency, effectively preventing external electromagnetic interference (EMI) and radio frequency interference (RFI).operating temperatures ranging from -40°C to +105°C, withstand high and low temperatures, vibrations, bending and other harsh conditions.; Application High Speed NETBridge to H-MTD Vehicle Ethernet Cable, for ADAS, Autonomous Driving, In-Vehicle Infotainment, Telematics, In-Vehicle Networking (V2X), Sensor Modules, Radar, Cameras, GPS, BCU, ECU and so on.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

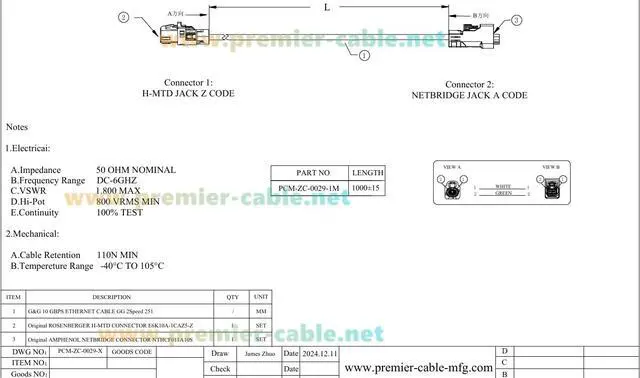

Specification: Connector

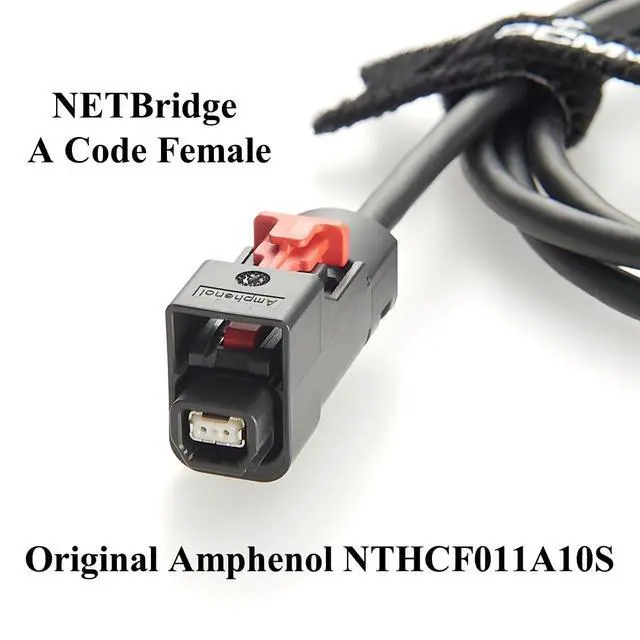

A: NET
Bridge A Code Female Connector, Amphenol NTHCF011A10S

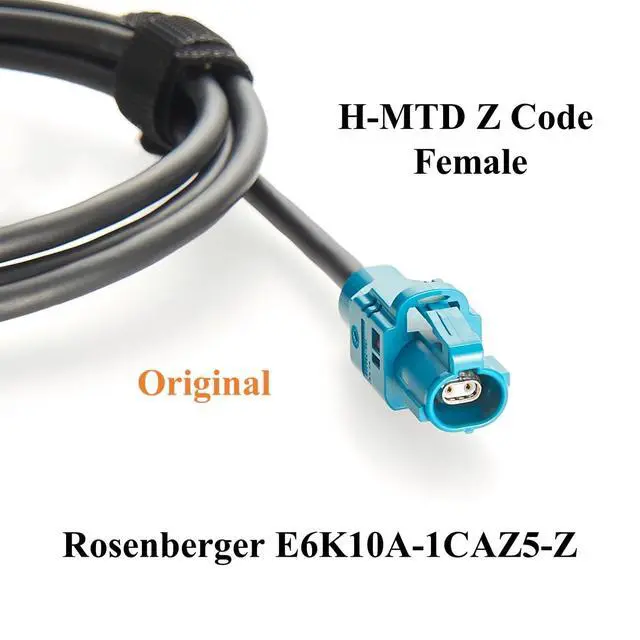

Connector B: H-MTD Z Code Female Connector, Water Blue, Rosenberger
E6K10A-1CAZ5-Z Wire: G&G 2Speed 251 Ethernet
Cable Transfer Speed: 10Gbps
Cable Length: 1m, Or
OEM Impedance: 50 Ohm
Frequency Range: DC-6GHZ
VSWR: 1.800
MAX Hi-Pot: 800 VRMS MIN
Temperature Range: -40°C to +105°C
A: NET
Bridge A Code Female Connector, Amphenol NTHCF011A10S
Connector B: H-MTD Z Code Female Connector, Water Blue, Rosenberger
E6K10A-1CAZ5-Z Wire: G&G 2Speed 251 Ethernet
Cable Transfer Speed: 10Gbps
Cable Length: 1m, Or
OEM Impedance: 50 Ohm
Frequency Range: DC-6GHZ
VSWR: 1.800
MAX Hi-Pot: 800 VRMS MIN
Temperature Range: -40°C to +105°C
