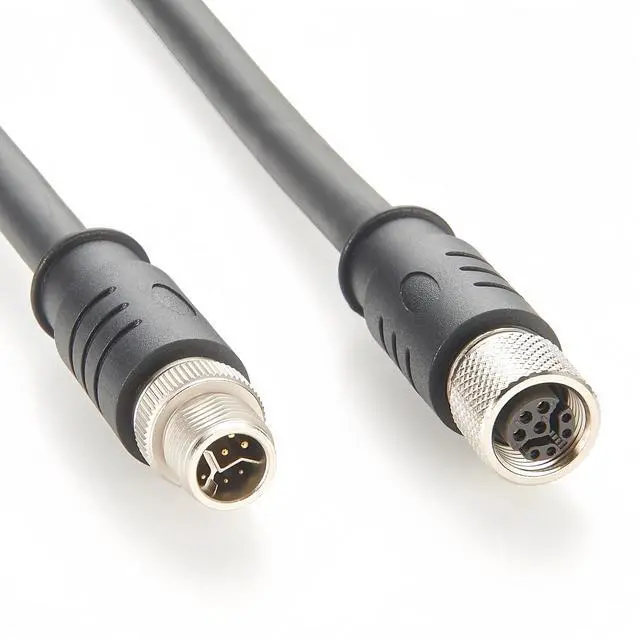

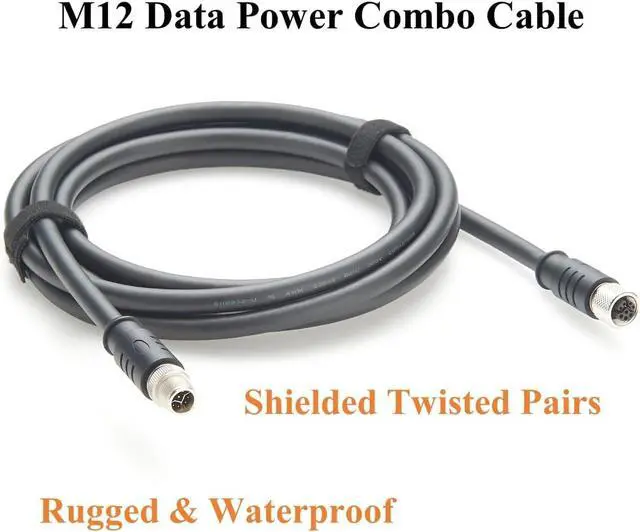

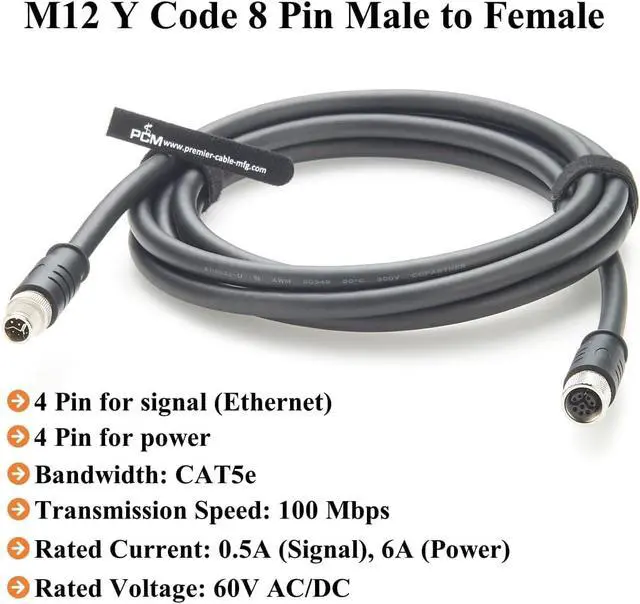

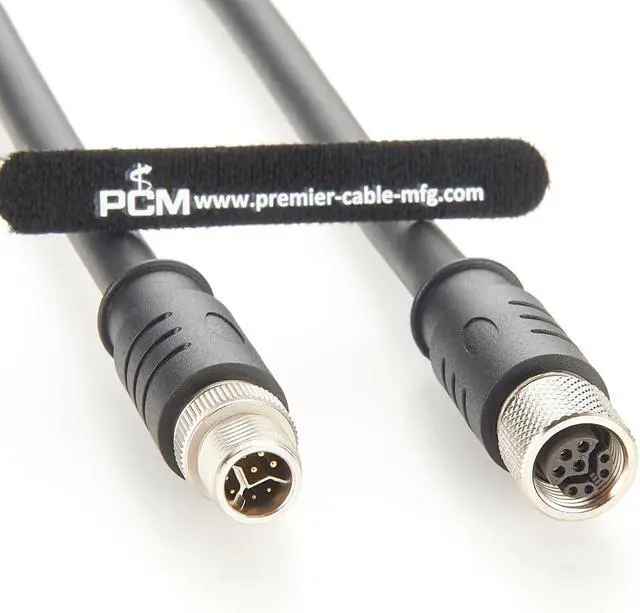

CAT5e Ethernet M12 Y Code 8 Pin Male to Female Extension Cable IP67 100Mbps Micro-Change Data & Power Cable for Profinet, EtherCAT, Fieldbus, I/O, Camera(3M/9.84FT)

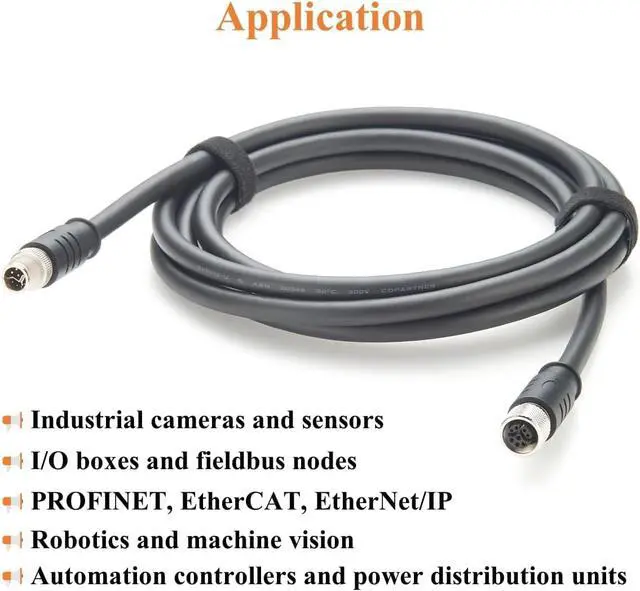

- Product Parameters Connector A: M12 Y-Code 8Pin Male; Connector B: M12 Y-code 8-pin Female; Rated Current: 0.5A (Signal), 6A (Power); Rated Voltage: 60V AC/DC; OD: 9.0MM; Length: 3M/9.84FT.; 2-in-1 Power & Ethernet M12 Y-Coded Power and Data Cable, 4 pin for signal (Ethernet), 4 pin for power.Supports 100 Mbps CAT5e Ethernet and 6A power transmission.; Rugged & Waterproof Micro-Change M12 Y Code Extension Cable, with nickel-plated housing, TPU Jacket and gold-plated contacts, IP67 waterproof, >500 mating cycles, ensure secure connections in harsh conditions.; Shielded Cable PROFINET M12 Extension Cable Constructed with shielded twisted pairs (26AWG*2P + FAB),minimize electromagnetic interference (EMI), ensure stable data transmission.; Application M12 Data Power Combo Cable for Industrial Cameras, PROFINET, EtherCAT, Fieldbus, EtherNet/IP, I/O boxes, Sensor, Robotics, Machine Vision and Automation Controls.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product
Name: M12 Y Code Male to Female Extension
Cable Connector A: M12 Y-code 8-pin Male
Connector B: M12 Y-code 8-pin
Female Length: 3M/ 9.84FT

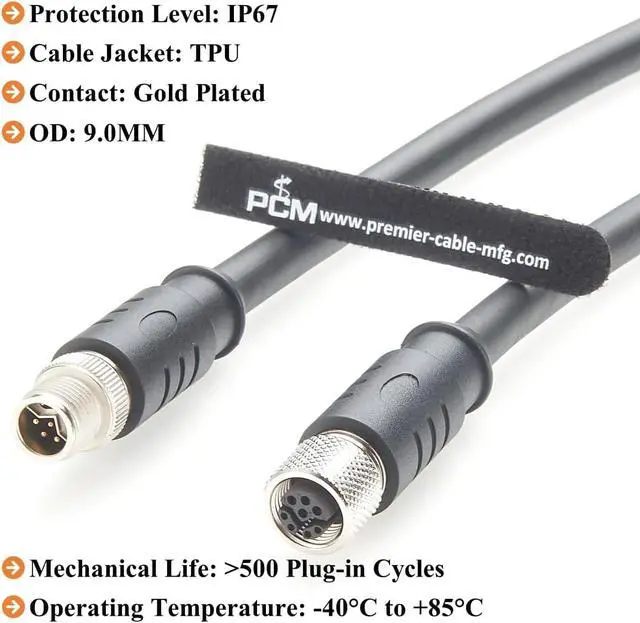

Protection Level: IP67
Bandwidth: CAT5e
Transmission Speed: 100 Mbps
Rated Current: 0.5A (Signal), 6A (Power)
Rated Voltage: 60V AC/DC
Connector Standard: IEC 61076-2-113
Mechanical Life: >500
Plug-in Cycles Wire: UL20549(26AWG*2P+FAB)*1C+20AWG*4C+FABP
Contact: Gold Plated
Cable Jacket: TPU
Jacket OD: 9.0MM
Operating Temperature: -40°C to +85°C
Name: M12 Y Code Male to Female Extension
Cable Connector A: M12 Y-code 8-pin Male
Connector B: M12 Y-code 8-pin
Female Length: 3M/ 9.84FT
Protection Level: IP67
Bandwidth: CAT5e
Transmission Speed: 100 Mbps
Rated Current: 0.5A (Signal), 6A (Power)
Rated Voltage: 60V AC/DC
Connector Standard: IEC 61076-2-113
Mechanical Life: >500
Plug-in Cycles Wire: UL20549(26AWG*2P+FAB)*1C+20AWG*4C+FABP
Contact: Gold Plated
Cable Jacket: TPU
Jacket OD: 9.0MM
Operating Temperature: -40°C to +85°C
