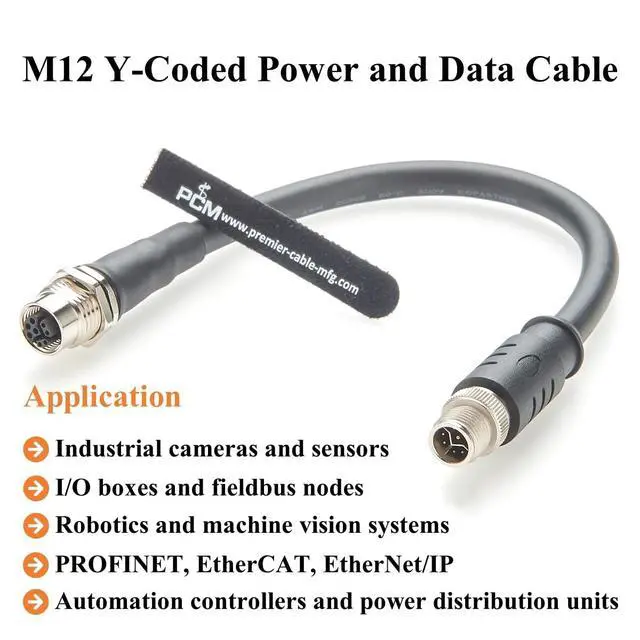

Panel Mount M12 Y Code Male to Female Extension Cable IP67 Micro-Change 100Mbps CAT5e Ethernet & Power Cable for Camera, Machine Vision, Profinet, Fieldbus, I/O, Robotic(0.3m)

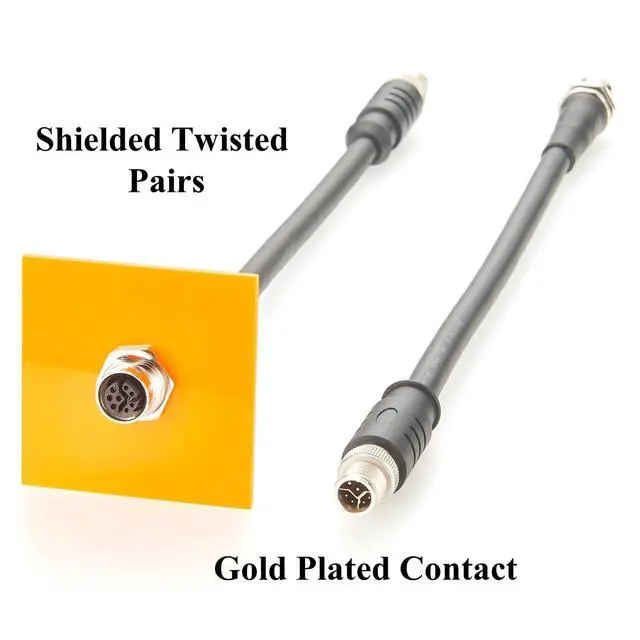

- 2-in-1 Power & Ethernet M12 Y-Coded Power and Data Cable, 4 pin for signal (Ethernet), 4 pin for power.Supports 100 Mbps CAT5e Ethernet and 6A power transmission.; Panel Mount The M12 Y-code 8-pin Female connector features Panel mount bulkhead design, The opening size is approximately 16.5mm.reducing the influence of external vibration, shocks.; Rugged & Waterproof Micro-Change M12 Y Code Extension Cable, with nickel-plated housing, TPU Jacket and gold-plated contacts, IP67 waterproof, >500 mating cycles, ensure secure connections in harsh conditions.; Shielded Cable PROFINET M12 Extension Cable Constructed with shielded twisted pairs (26AWG*2P + FAB),minimize electromagnetic interference (EMI), ensure stable data transmission.; Application M12 Data Power Combo Cable for Industrial Cameras, PROFINET, EtherCAT, Fieldbus, EtherNet/IP, I/O boxes, Sensor, Robotics, Machine Vision and Automation Controls.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

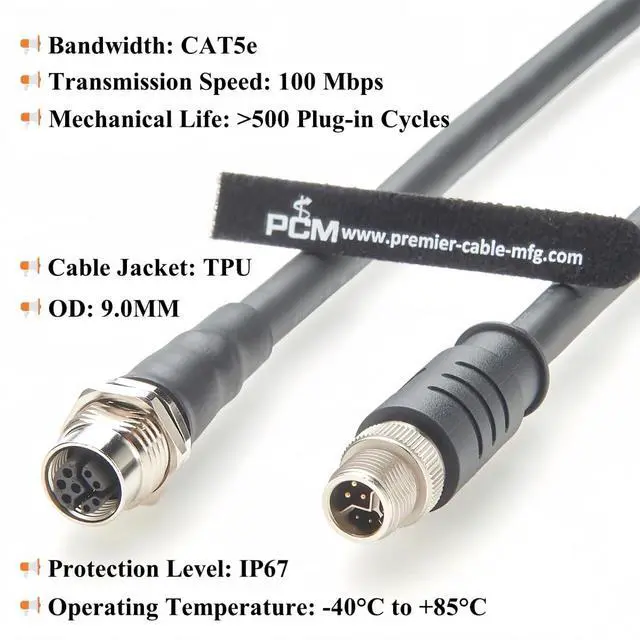

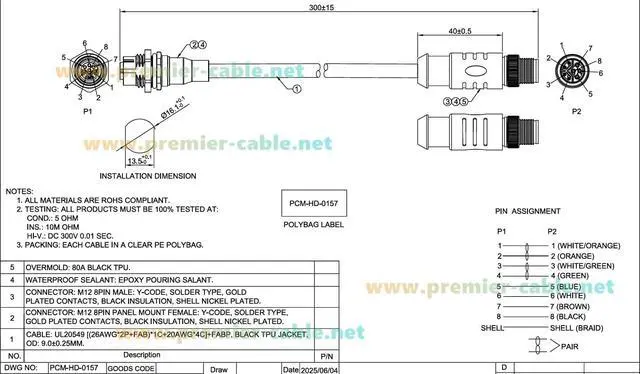

Specification: Product

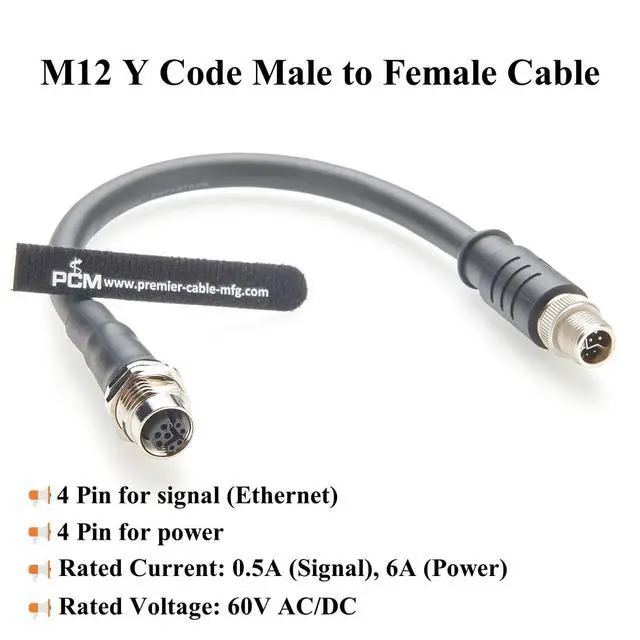

Name: M12 Y Code Male to Female Extension
Cable Connector A: M12 Y-code 8-pin Male
Connector B: M12 Y-code 8-pin Female,
Panel mount Length: 0.3M /1FT

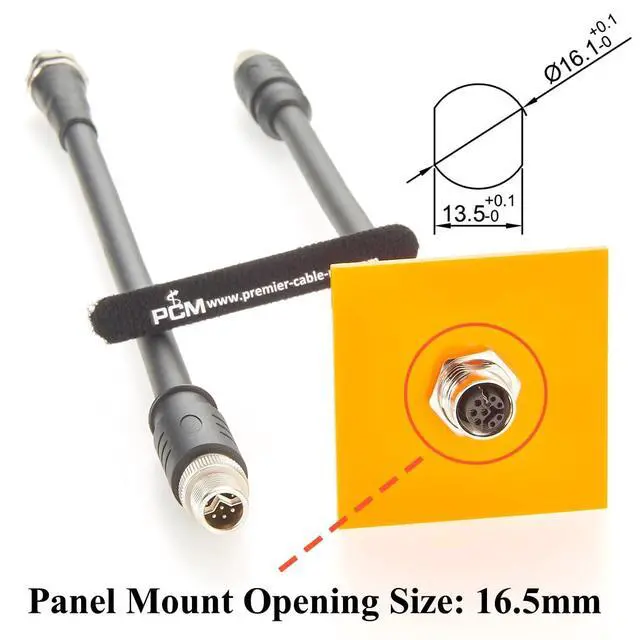

Opening Size: 16.5 mm
Protection Level: IP67
Bandwidth: CAT5e
Transmission Speed: 100 Mbps
Rated Current: 0.5A (Signal), 6A (Power)
Rated Voltage: 60V AC/DC
Connector Standard: IEC 61076-2-113
Mechanical Life: >500
Plug-in Cycles Wire: UL20549(26AWG*2P+FAB)*1C+20AWG*4C+FABP
Contact: Gold Plated
Cable Jacket: TPU
OD: 9.0MM
Operating Temperature: -40°C to +85°C
Name: M12 Y Code Male to Female Extension
Cable Connector A: M12 Y-code 8-pin Male
Connector B: M12 Y-code 8-pin Female,
Panel mount Length: 0.3M /1FT
Opening Size: 16.5 mm
Protection Level: IP67
Bandwidth: CAT5e
Transmission Speed: 100 Mbps
Rated Current: 0.5A (Signal), 6A (Power)
Rated Voltage: 60V AC/DC
Connector Standard: IEC 61076-2-113
Mechanical Life: >500
Plug-in Cycles Wire: UL20549(26AWG*2P+FAB)*1C+20AWG*4C+FABP
Contact: Gold Plated
Cable Jacket: TPU
OD: 9.0MM
Operating Temperature: -40°C to +85°C
