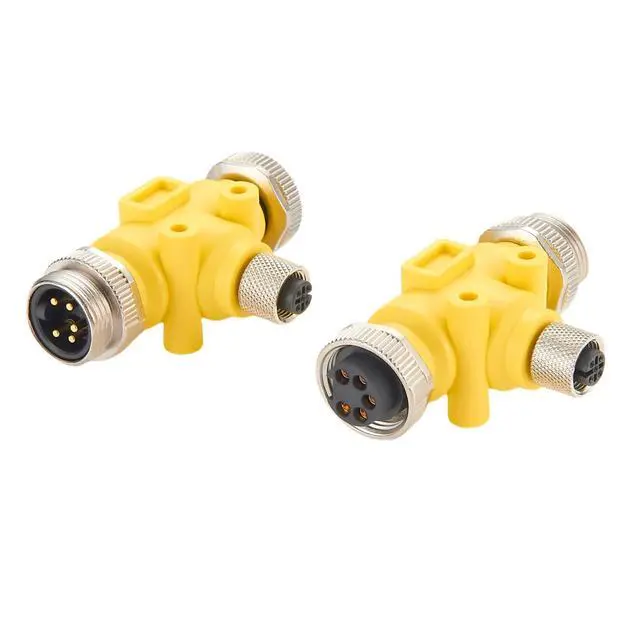

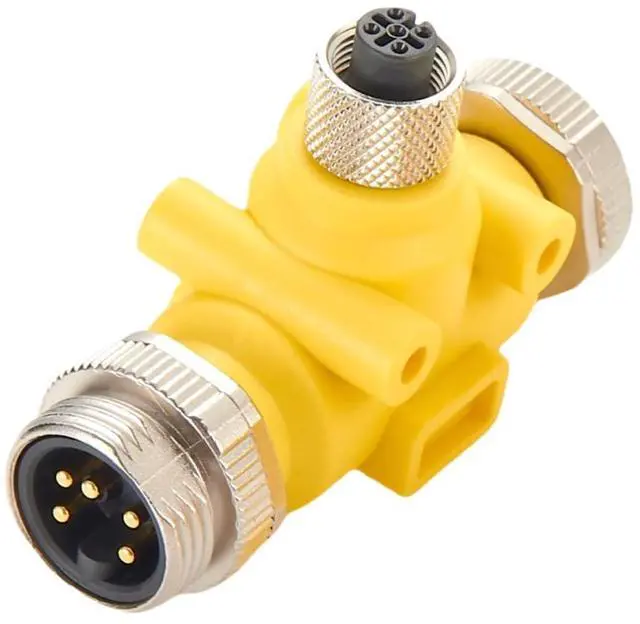

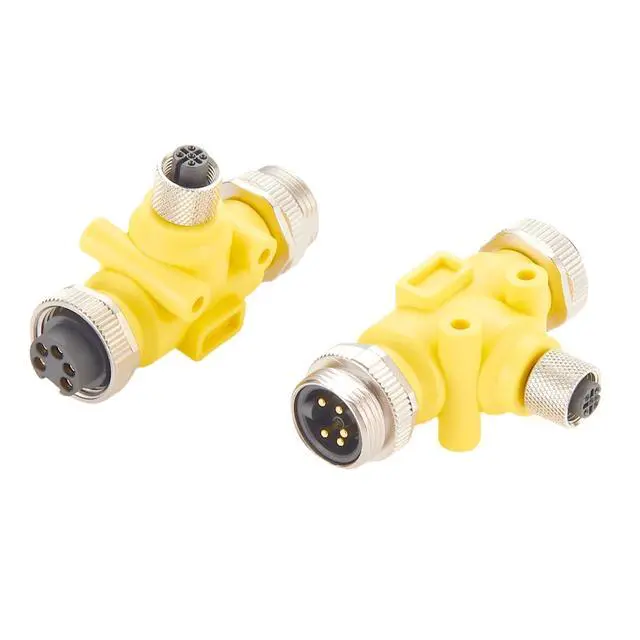

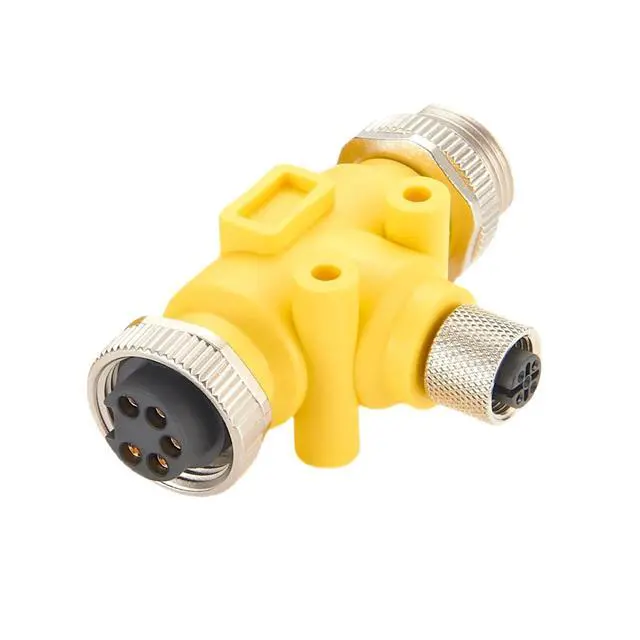

3 Way 7/8" Mini-Change to M12 Micro-Change Tee Connector Y Splitter 1 Male to 2 Female 5 Pin Circular Connector IP67 Backbone Trunk T Distributor for DeviceNet CANopen CANbus NMEA 2000
- Product ParametersConnector A: 7/8" Mini-Change 5 Poles Male; Connector B: 7/8" Mini-Change 5 Poles Female; Connector C: M12 Micro-Change 5 Pin Female; Shell Material: PVC; Contact: Gold Plated; Rated Voltage: 250V; Rated Current: 4A.; Multi-Interface DesignUses universal 7/8-inch UNF and M12 5Pin circular connector, Thread Locking Mechanism, Anti-vibration locking.compatible with a wide range of industrial equipment, suitable for branch connections such as sensors and actuators.; 3 Way T Distributor7/8" Male to 7/8" Female and M12 Female Tee Splitter, one-input and two-output configuration,7/8 inch interface connects to 16AWG cable, M12 interface connects to 20AWG cable.; IP67 WaterProofMini-Change and Micro-Change Connector, with high-quality PVC materials,IP67 Waterproof Rating,for stable connection in harsh environments.; Application3 Way 7/8" to M12 Circular Tee Connector for DeviceNet, NMEA 2000, CANopen,CAN Bus.For Sensor, PLC, IO Modules, Automation Systems, AGV, Industrial Automation and so on.; Custom CableWe are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

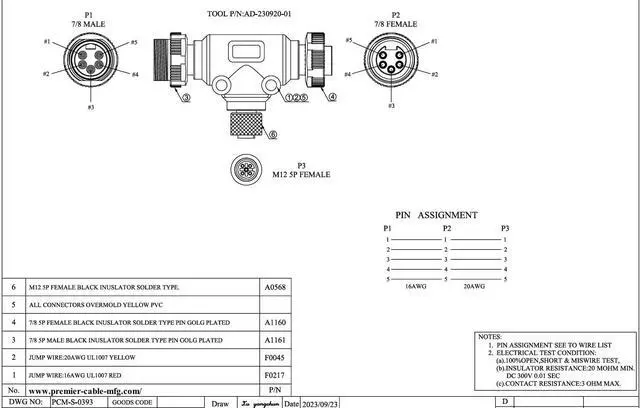

Technical: Connector
A: 7/8" Mini-Change 5 Poles Male
Connector B: 7/8" Mini-Change 5 Poles Female
Connector C: M12 Micro-Change 5 Pin Female
Waterproof level: IP67
Shell Material: PVC
Contact: Gold
Plated Rated Voltage: 250V
Rated Current: 4A for DeviceNet NMEA2000 CAN Bus CANopen
A: 7/8" Mini-Change 5 Poles Male
Connector B: 7/8" Mini-Change 5 Poles Female
Connector C: M12 Micro-Change 5 Pin Female
Waterproof level: IP67
Shell Material: PVC
Contact: Gold
Plated Rated Voltage: 250V
Rated Current: 4A for DeviceNet NMEA2000 CAN Bus CANopen
