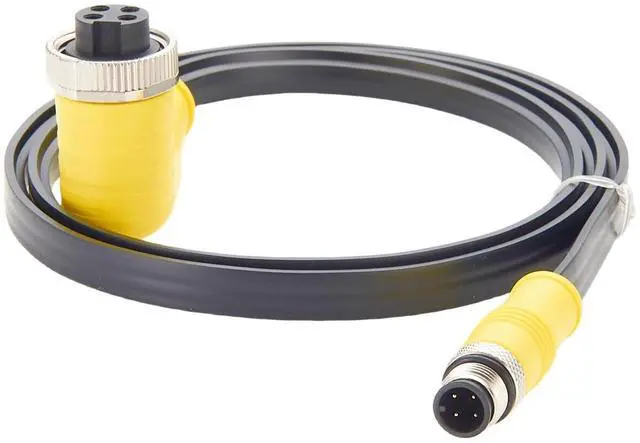

Right Angle Mini-Change 7/8" 4Pin Female to M12 Male ASI Protocol Network Bus Cable ASI Flat Power Distribution Flexible Actuator Sensor Interface Bus Cable for PLC Profibus Interbus(1M/3.28FT)
- Industrial-Grade AS-i Field Bus CableThis AS-i flat cable Designed for actuator-sensor interface systems, This cable is specifically designed for signal transmission and power delivery simultaneously, which eliminates the need for separate power cables.; 2-Conductor Flat DesignAS-i field bus cable Features a durable 2-wire yellow flat profile with 1.5mm² tinned copper cores, for quick, tool-less installation,no wire stripping required.; High QualityAS-i Network Cable adapt PVC jacket, offers excellent resistance to oil, wear. M12 connectors offer a compact design with a high level of environmental protection.7/8" connectors,often used in applications where high current or high voltage is required.; AdavantagesASi cables provide highly efficient energy supply.support a free topology structure, allowing easy implementation of branching anywhere.offers the simplest connection technology, with easy installation, replacement, movement, and addition of modules through piercing technology, which ensures maximum reliable contact.; Custom CableWe are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

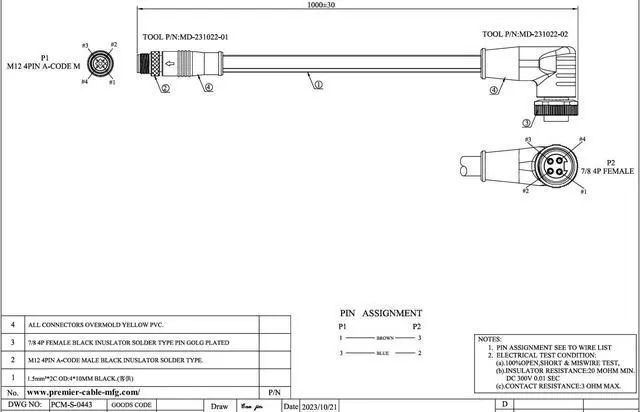

Technical: Connector
A: 7/8"-16UNF Mini-Change 4Pin Female
Connector B: M12 A Code 4Pin
Male Contact: Gold Plated
Shell Material: PVC
Length: 1M/ 3.28FT
OD: 4*10MM
Wire Wauge: 1.5 mm²
A: 7/8"-16UNF Mini-Change 4Pin Female
Connector B: M12 A Code 4Pin
Male Contact: Gold Plated
Shell Material: PVC
Length: 1M/ 3.28FT
OD: 4*10MM
Wire Wauge: 1.5 mm²
