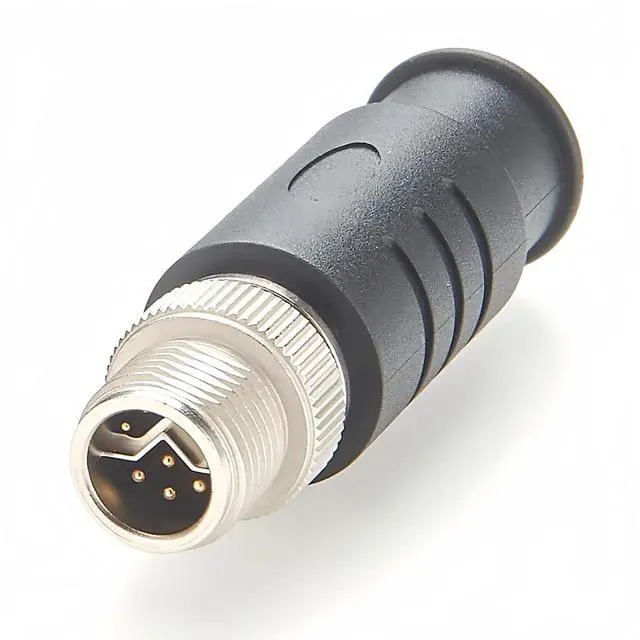

IP67 M12 Y Code 8Pin Male Terminator Plug 120/1000 Ohm Micro-Change M12 Termination Resistor for Industrial Ethernet & Power, Profinet, EtherCAT, Fieldbus, Automation, Sensor(1PCS)

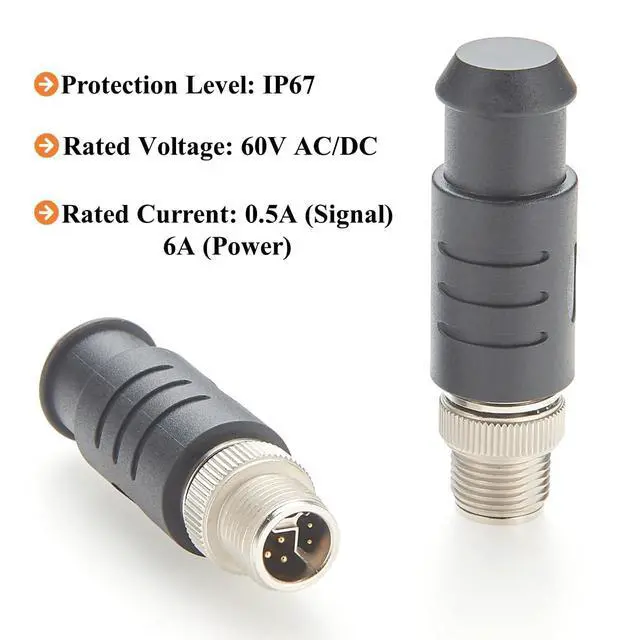

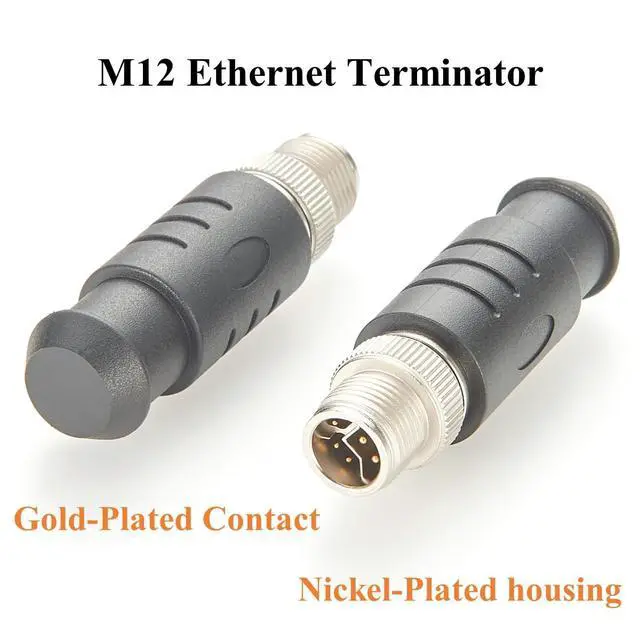

- Product Parameters Connector: M12 Y-Code 8Pin Male; Bandwidth: CAT5e; Transmission Speed: 100 Mbps; Rated Current: 0.5A (Signal), 6A (Power); Rated Voltage: 60V AC/DC; Mechanical Life: >500 Plug-in Cycles.; 2 Universe 120/1000 Ohm 0.5W Resistor M12 Y Code Terminator Plug Built-in 2 Universe Resistor, 120 Ohm between pins 1 and 2, 1000 Ohm between pins 5 and 6.reducing signal reflections and ensuring stable high-speed data transmission.; IP67 Waterproof Micro-Change M12 End Plug Terminal Resistor, with nickel-plated housing and gold-plated contacts, IP67 waterproof, resistant to dust, moisture, and vibration.; Application M12 Termination Plug for Sensors, Industrial Ethernet & Power, PROFINET, EtherCAT, Fieldbus, Automation, Robotics, Motor Drives, Vision Systems and so on.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications

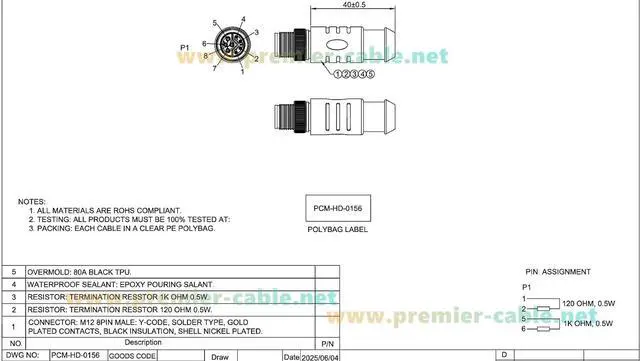

: ProductName: M12 Y-Code 8Pin

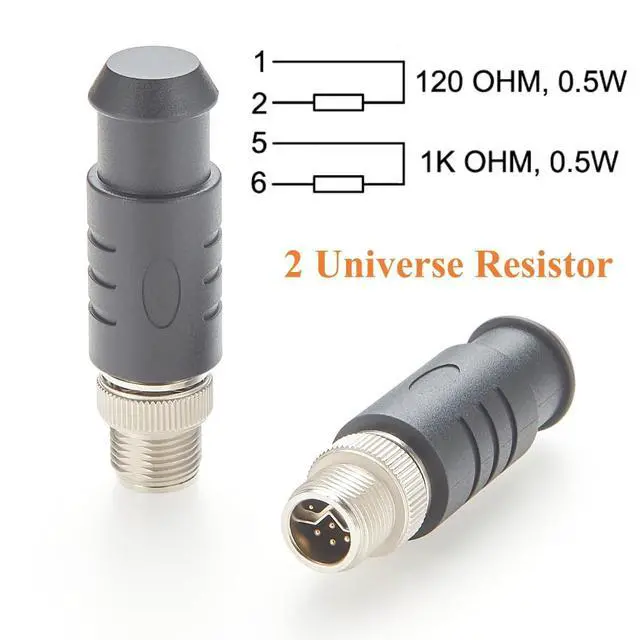

Male Terminator Resistors: 120 (Pin 12), 1k (Pin 56), 0.5W
Protection Level: IP67

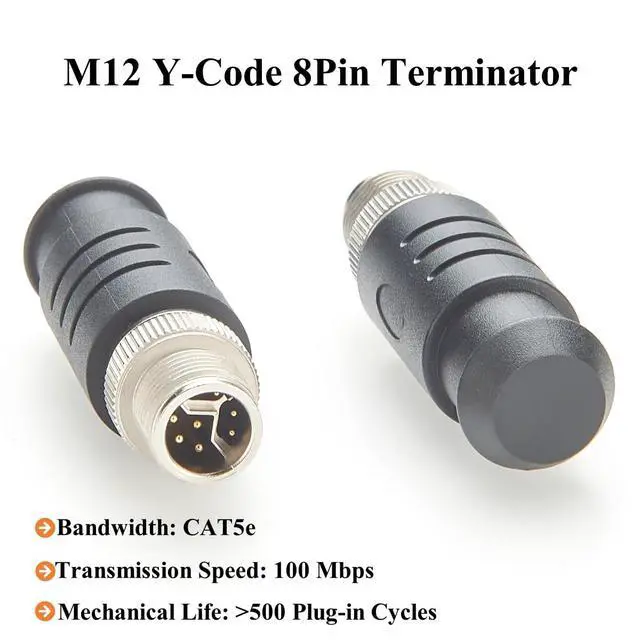

Bandwidth: CAT5e
Transmission Speed: Up to 100 Mbps
Rated Current: 0.5A (Signal), 6A (Power)
Rated Voltage: 60V AC/DC
Connector Standard: IEC 61076-2-113
Mechanical Life: >500 Plug-in Cycles
Operating Temperature: -40°C to +85°C
