1 Pair PoE Injector Splitter Kits with 5.5x2.5mm DC Connector Passive RJ45 Power Over Ethernet PoE Adapters 12V-48V for IP Camera, Non-PoE Devices (DC 5.5x2.5mm, 0.3M)
- Passive PoE KitPassive PoE Injector and Splitter Kit, With 5.5mm x 2.5mm DC Jack/Plug. Convert non-PoE devices to PoE-enabled, No need for separate power lines, simplifying installations and reducing cable clutter.; 12V to 48VPower Over Ethernet Adapter Supports input voltages from DC 12V to 48V, PoE splitter adapter input and output voltage are the same. Maximum of 2A per channel for optimal performance.; Transmission SpeedExperience blazing 10/100Mbps data transfer speeds over standard Network cables. Passive PoE utilizing pins 4/5 for positive power and 7/8 for ground. Remote power delivery via Ethernet cable.; Plug & PlayNo Configuration Needed, Just connect your power adapter and Ethernet cable, no software or network setup required.; Versatile ApplicationsPoE Adapter Injector Splitter Cable, for IP Cameras, Wireless Access Points (APs), VoIP phones, Network Monitoring, Non-POE Switch, CCTV Systems and other Non-POE Devices.; Custom CableWe are a professional cable manufacturer,please contact us for customised requirements. Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification:
Note: This kit need the external power adapter to power on the device!
Product Name: Passive PoE Adapter Injector Splitter Cable
Part No.: PCM-0156

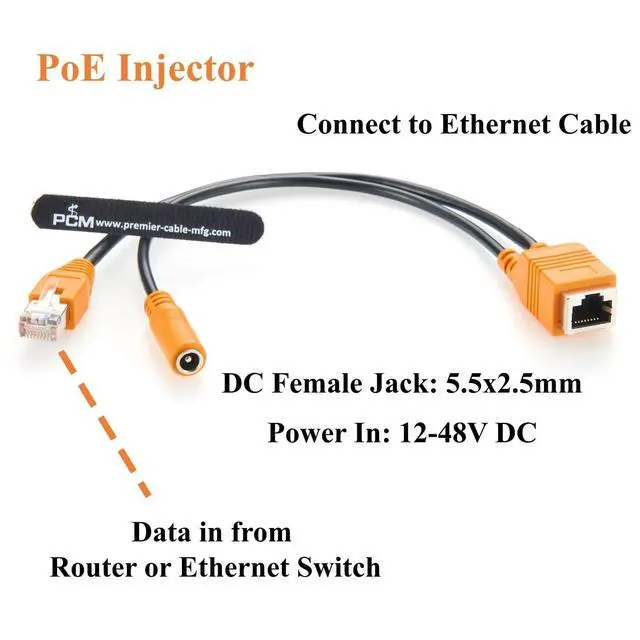

Injector: RJ45 Male and Power In to

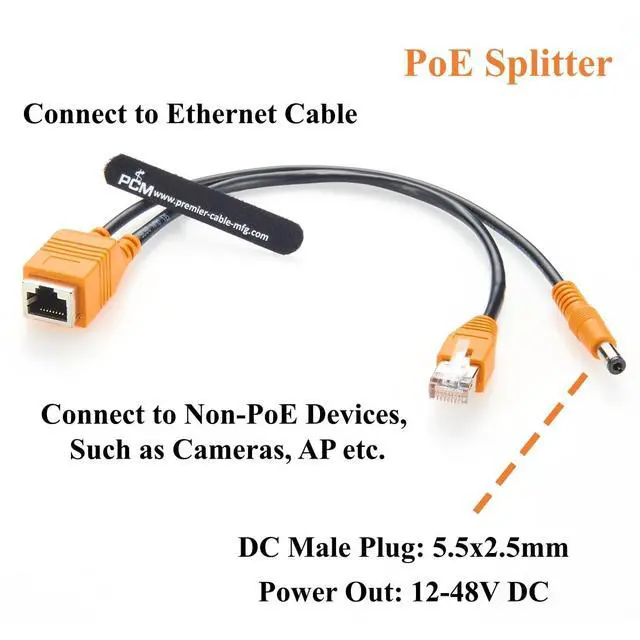

RJ45 Female Splitter: RJ45 Female to RJ45 Male and

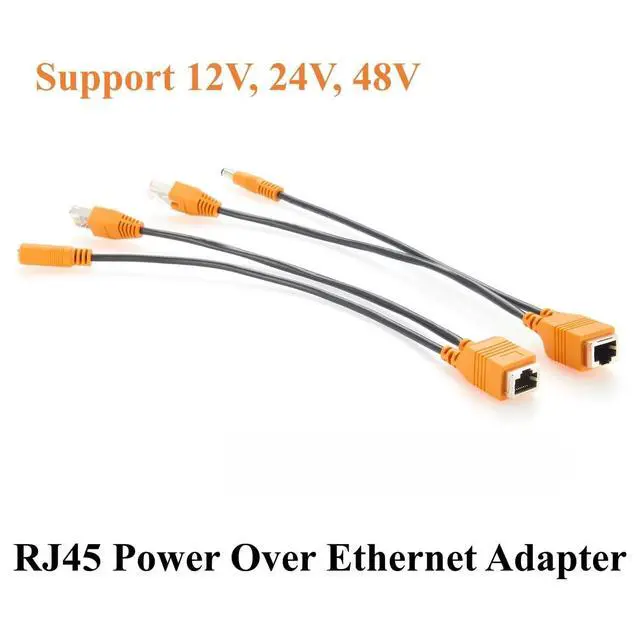

Power out Supports: 12V, 24V, 48V;

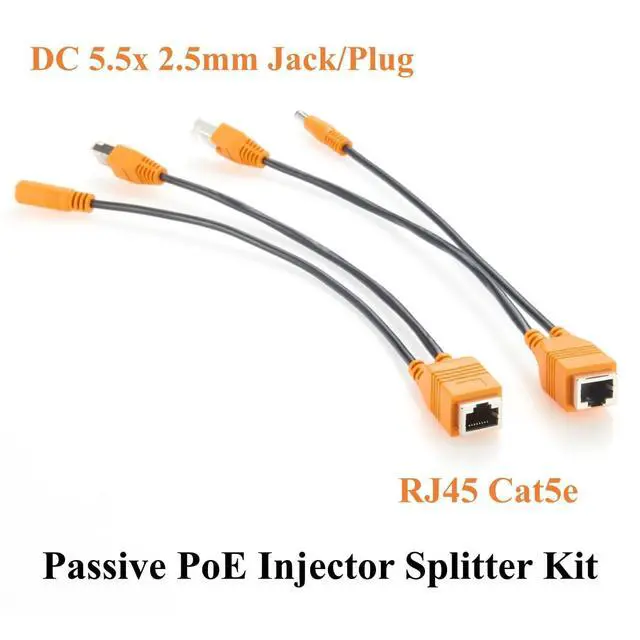

DC Jack/Plug: DC 2.5 mm x 5.5 mm;
Length: 0.3M / 0.98FT

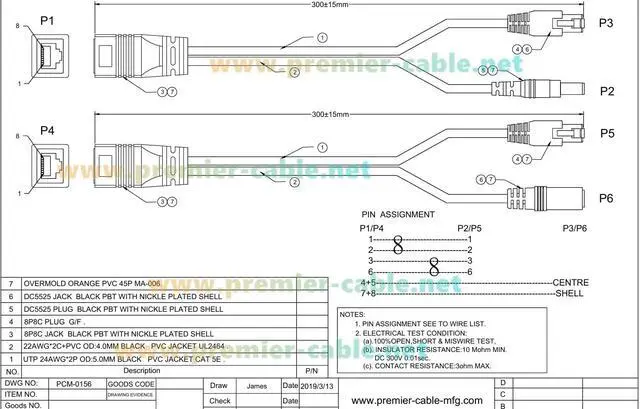

Power Pin: 4/5 (+), 7/8 (-)
Data Pin: 1, 2, 3, 6 Ethernet

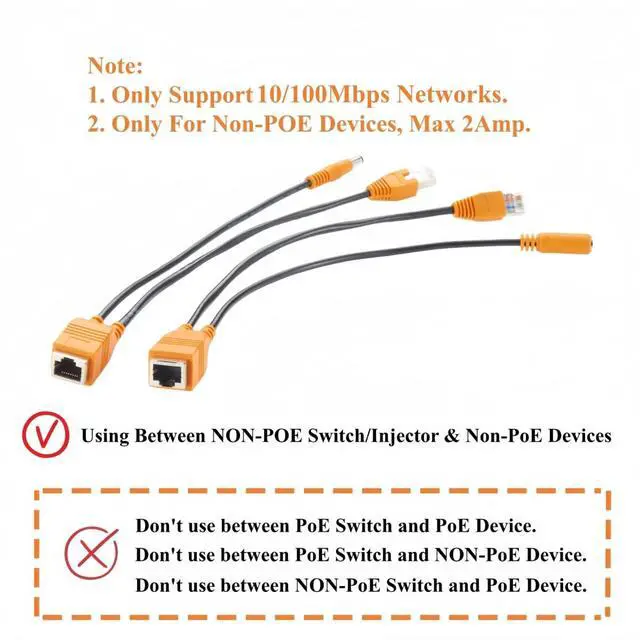

Cable Data Rate: 10/100Mbps Ethernet
Cable Connector: RJ45 Cat5E Plug and play, No
Configuration Required Application: WLAN, Routers, Switches, Internet Telephony, Security Monito.
Package Include: 1 * PoE Injector cable 1 * PoE Splitter cable
Note: This kit need the external power adapter to power on the device!
Product Name: Passive PoE Adapter Injector Splitter Cable
Part No.: PCM-0156
Injector: RJ45 Male and Power In to
RJ45 Female Splitter: RJ45 Female to RJ45 Male and
Power out Supports: 12V, 24V, 48V;
DC Jack/Plug: DC 2.5 mm x 5.5 mm;
Length: 0.3M / 0.98FT
Power Pin: 4/5 (+), 7/8 (-)
Data Pin: 1, 2, 3, 6 Ethernet
Cable Data Rate: 10/100Mbps Ethernet
Cable Connector: RJ45 Cat5E Plug and play, No
Configuration Required Application: WLAN, Routers, Switches, Internet Telephony, Security Monito.
Package Include: 1 * PoE Injector cable 1 * PoE Splitter cable
