$128^.08

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Sold by TERRA HAVEN

Shipped by TERRA HAVEN

Price alert

Add to Wish List

Meet Your Seller

TERRA HAVEN

See Seller Store

Main image of Rosenberger Quad HFM Mini FAKRA Z Code Female to FAKRA Female Four Ports Automotive RF Coaxial Cable 4-in-1 AMK12D-1M4Z5-Z to 59Z113-000-Z for ADAS Cameras, GMSL, FPD-Link III (0.15M/0.5FT)

Alt view image 2 of 7 - Rosenberger Quad HFM Mini FAKRA Z Code Female to FAKRA Female Four Ports Automotive RF Coaxial Cable 4-in-1 AMK12D-1M4Z5-Z to 59Z113-000-Z for ADAS Cameras, GMSL, FPD-Link III (0.15M/0.5FT)

Alt view image 3 of 7 - Rosenberger Quad HFM Mini FAKRA Z Code Female to FAKRA Female Four Ports Automotive RF Coaxial Cable 4-in-1 AMK12D-1M4Z5-Z to 59Z113-000-Z for ADAS Cameras, GMSL, FPD-Link III (0.15M/0.5FT)

Alt view image 4 of 7 - Rosenberger Quad HFM Mini FAKRA Z Code Female to FAKRA Female Four Ports Automotive RF Coaxial Cable 4-in-1 AMK12D-1M4Z5-Z to 59Z113-000-Z for ADAS Cameras, GMSL, FPD-Link III (0.15M/0.5FT)

Alt view image 5 of 7 - Rosenberger Quad HFM Mini FAKRA Z Code Female to FAKRA Female Four Ports Automotive RF Coaxial Cable 4-in-1 AMK12D-1M4Z5-Z to 59Z113-000-Z for ADAS Cameras, GMSL, FPD-Link III (0.15M/0.5FT)

Alt view image 6 of 7 - Rosenberger Quad HFM Mini FAKRA Z Code Female to FAKRA Female Four Ports Automotive RF Coaxial Cable 4-in-1 AMK12D-1M4Z5-Z to 59Z113-000-Z for ADAS Cameras, GMSL, FPD-Link III (0.15M/0.5FT)

Alt view image 7 of 7 - Rosenberger Quad HFM Mini FAKRA Z Code Female to FAKRA Female Four Ports Automotive RF Coaxial Cable 4-in-1 AMK12D-1M4Z5-Z to 59Z113-000-Z for ADAS Cameras, GMSL, FPD-Link III (0.15M/0.5FT)

Shop All Colorfire Products | Visit TERRA HAVEN Store

Rosenberger Quad HFM Mini FAKRA Z Code Female to FAKRA Female Four Ports Automotive RF Coaxial Cable 4-in-1 AMK12D-1M4Z5-Z to 59Z113-000-Z for ADAS Cameras, GMSL, FPD-Link III (0.15M/0.5FT)

Be the first to review this product...

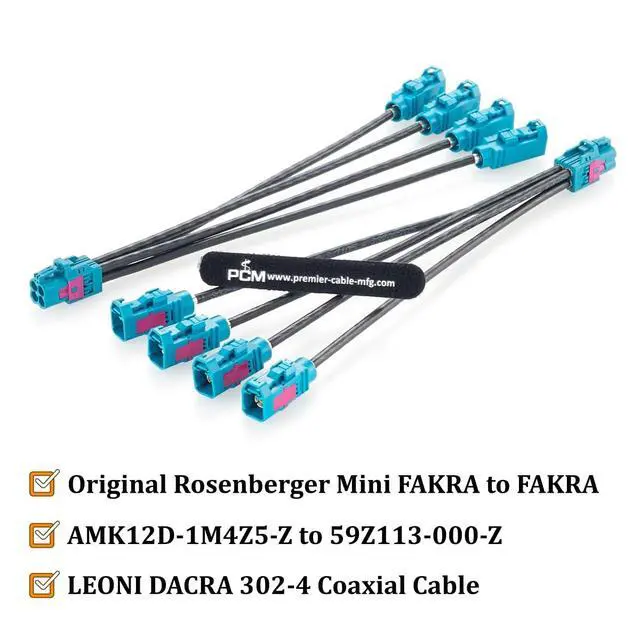

Original Connector 4 In 1 Rosenberger Mini FAKRA to Four Ports FAKRA Cable, Equipped with Original Rosenberger Quad HFM Mini Fakra Z Code Female Connectors (AMK12D-1M4Z5-Z), and Original Rosenberger Fakra Z Code Female Connectors (59Z113-000-Z).; 50 Ohm & DC3GHz The Rosenberger Mini FAKRA to FAKRA RF Coaxial Cable, Support 50 Ohm Impedance and DC-3GHZ Frequency, ensuring low-loss, high-integrity RF signal transmission. for including video, GNSS, radar, wireless communication, and sensor data links.; Shielded Cable The Vehicle Car Automotive Coaxial Cable, Built with LEONI DACAR 302-4 coaxial shielded cable, providing excellent shielding, low attenuation, and superior EMI/RFI resistance.; Application The Mini FAKRA Z Code Female to Fakra FAKRA RF Coaxial Cable for ADAS, In-Vehicle Infotainment (IVI), FPD-Link GMSL Cameras, Surround-View and Parking Assistance, Automotive Camera, Vehicle Telematics, Robotaxi, TCU, V2X, GPS Navigation, Autonomous Driving and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

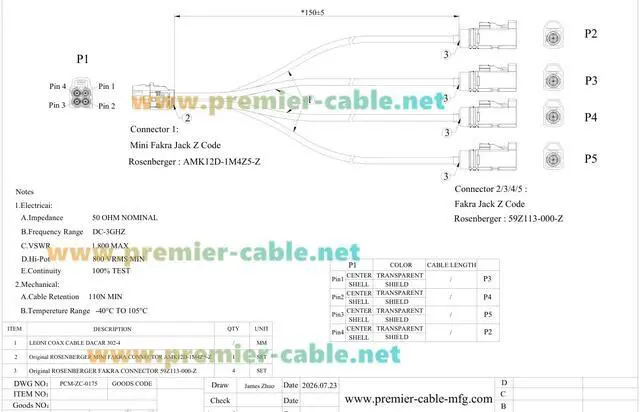

Specification: Connector

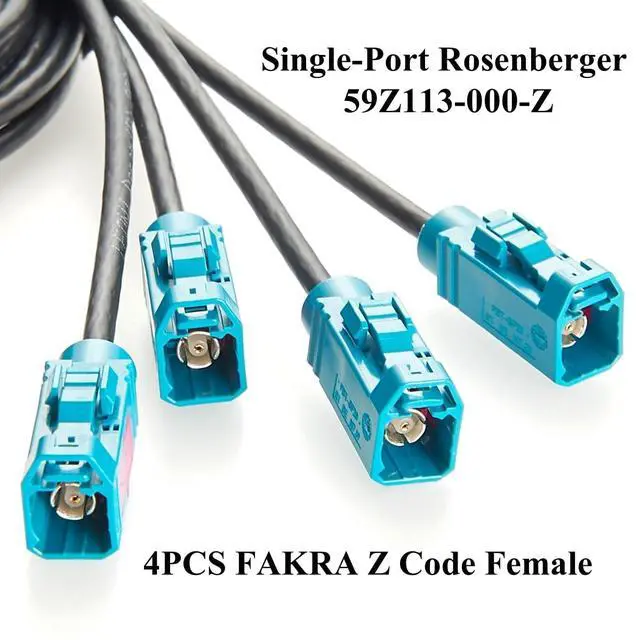

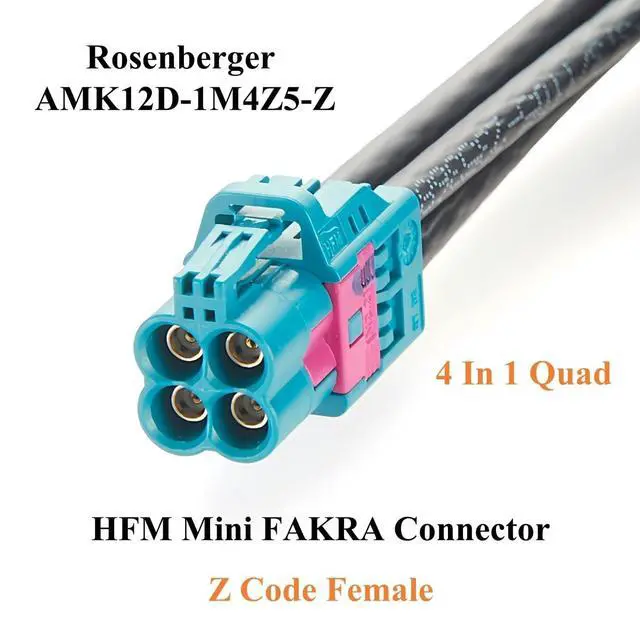

1: Quad HFM Mini FAKRA Connector, Z Code Female Jack, Rosenberger AMK12D-1M4Z5-Z Connector 2: 4 PCS X FAKRA Connector, Single-Port, Z Code Female Jack, Rosenberger 59Z113-000-Z
Part No.: PCM-ZC-0101
Cable Length: 0.15M / 0.5M /1M/2M/10M, Or OEM
Connector Orientation: Straight

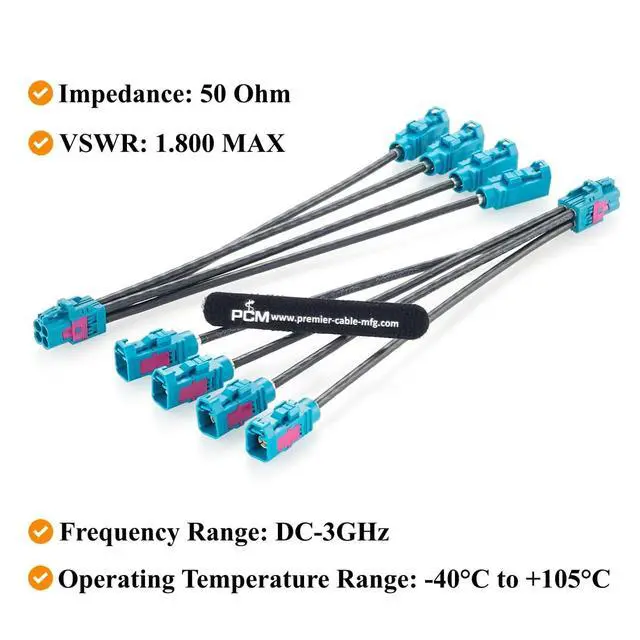

Impedance: 50 Ohm
Frequency Range: DC-3GHz
Hi-Pot: 800 VRMS MIN
Operating Temperature Range: -40°C to +105°C

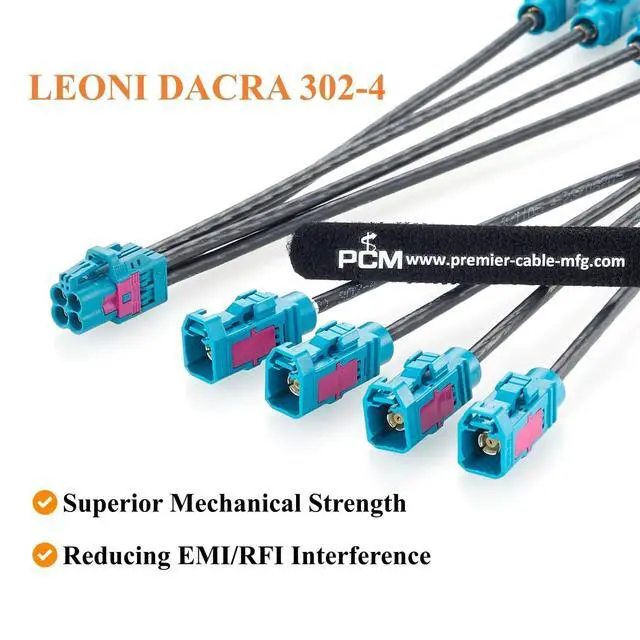

Wire: LEONI DACRA 302-4 Coaxial Cable

Additional Information
First Listed on Newegg	August 24, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by TERRA HAVEN Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIC6T1M570816
