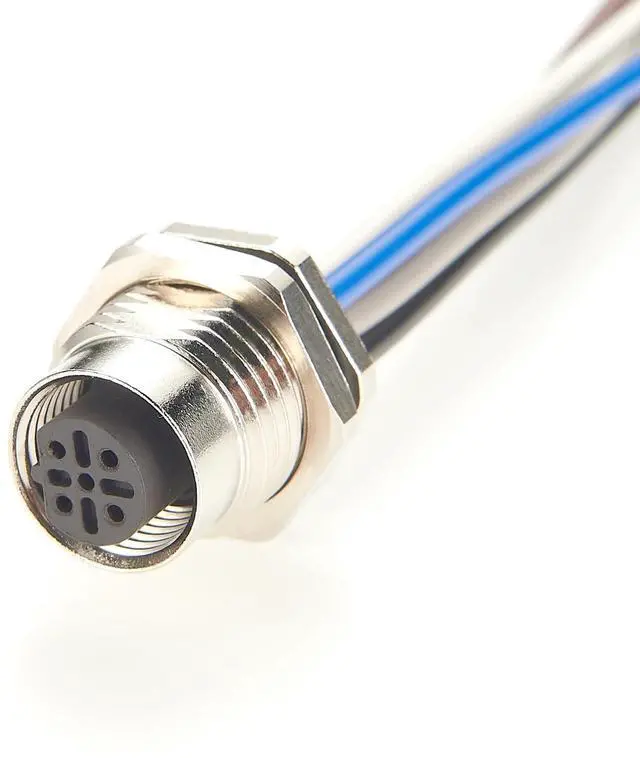

Main image of M12 B Code 5Pin Female Front Panel Mount Cable IP67 M12 Power Connector with Pre-Assembled Wires Bulkhead Chassis Electrical Cable Sensor Receptacle for NMEA2000 CAN BUS(0.2M/0.66FT) (Female)

Alt view image 2 of 6 - M12 B Code 5Pin Female Front Panel Mount Cable IP67 M12 Power Connector with Pre-Assembled Wires Bulkhead Chassis Electrical Cable Sensor Receptacle for NMEA2000 CAN BUS(0.2M/0.66FT) (Female)

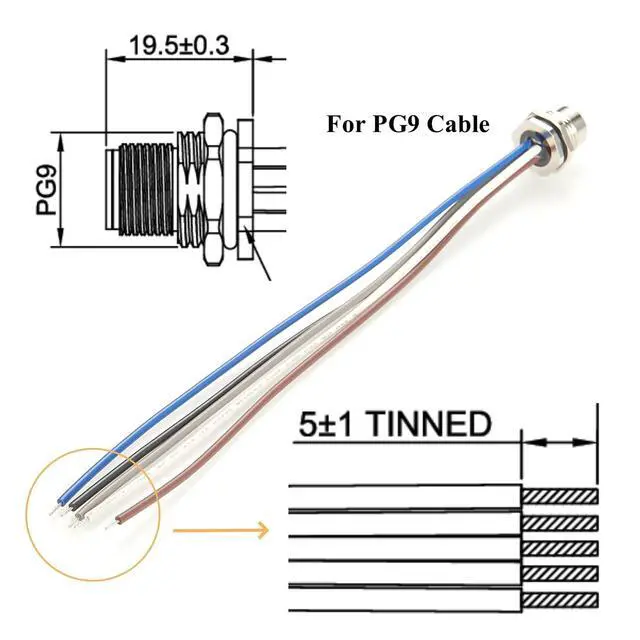

Alt view image 3 of 6 - M12 B Code 5Pin Female Front Panel Mount Cable IP67 M12 Power Connector with Pre-Assembled Wires Bulkhead Chassis Electrical Cable Sensor Receptacle for NMEA2000 CAN BUS(0.2M/0.66FT) (Female)

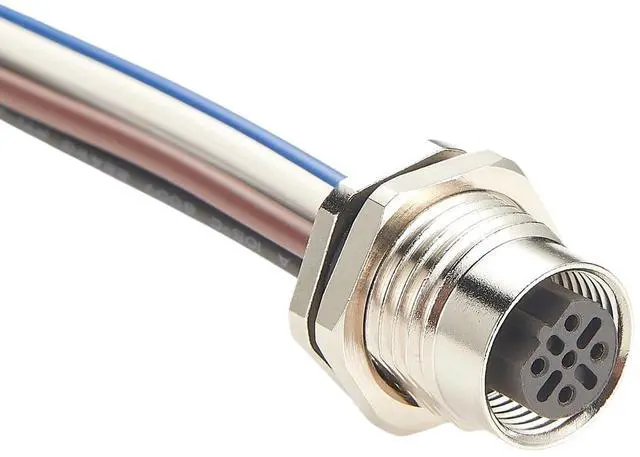

Alt view image 4 of 6 - M12 B Code 5Pin Female Front Panel Mount Cable IP67 M12 Power Connector with Pre-Assembled Wires Bulkhead Chassis Electrical Cable Sensor Receptacle for NMEA2000 CAN BUS(0.2M/0.66FT) (Female)

Alt view image 5 of 6 - M12 B Code 5Pin Female Front Panel Mount Cable IP67 M12 Power Connector with Pre-Assembled Wires Bulkhead Chassis Electrical Cable Sensor Receptacle for NMEA2000 CAN BUS(0.2M/0.66FT) (Female)

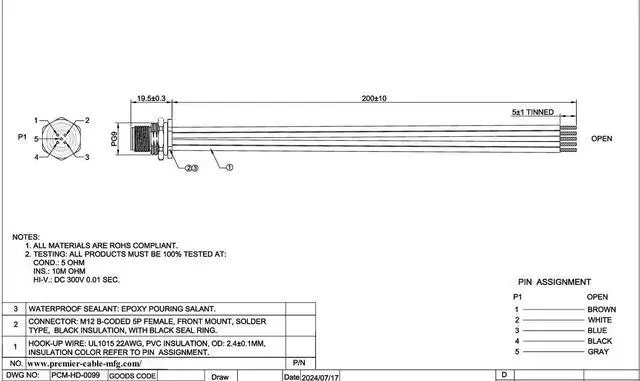

Alt view image 6 of 6 - M12 B Code 5Pin Female Front Panel Mount Cable IP67 M12 Power Connector with Pre-Assembled Wires Bulkhead Chassis Electrical Cable Sensor Receptacle for NMEA2000 CAN BUS(0.2M/0.66FT) (Female)

Shop All Colorfire Products | Visit TERRA HAVEN Store

M12 B Code 5Pin Female Front Panel Mount Cable IP67 M12 Power Connector with Pre-Assembled Wires Bulkhead Chassis Electrical Cable Sensor Receptacle for NMEA2000 CAN BUS(0.2M/0.66FT) (Female)

Be the first to review this product...

Product Parameter Connector A: M12 B-Coded 5Pin Female; Cable Length: 0.2M/0.66FT; Wire Gauge: 22AWG; Material: PVC; Protection Class: IP67; Panel Cutout Size: 15.5 ~ 16mm.; Threaded Connection thread locking mechanism, anti vibration locking design, 12mm thread joint can be easily connected to sensor devices and ctuator devices and field bus components.For PG9 Cable.; Front Panel Mount Simply cut a 15.5mm ~ 16 mm hole in the board and secure with the nut,Eesy to install.making it suitable for control panels, automation systems, and industrial enclosures.; Pre-wired Convenience Comes with 20cm pre-attached wires, simplifying installation by eliminating the need for additional wiring, perfect for quick and efficient setups.; Application for NMEA2000, CAN BUS, CANOpen, Profibus, Profinet, CC-Link , DeviceNet,also for PLCS, sensors, actuators, machine equipment,industrial automation, industrial network transmission, ships, security and other fields.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Specification: Connector
A: M12 B-Coded 5Pin
Connector A Gender: Female
Panel Mount: Bulkhead Thread Chassis Front
Panel Mount Length: 0.2M / 0.66FT
Wire gauge: 22AWG
OD: 2.4MM
Protection Class: IP67 Panel
Cutout Size: 15.5 mm ~ 16 mm
