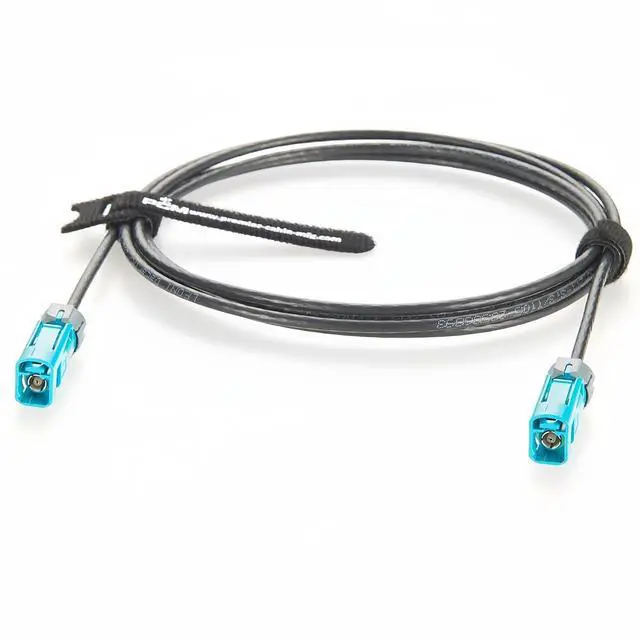

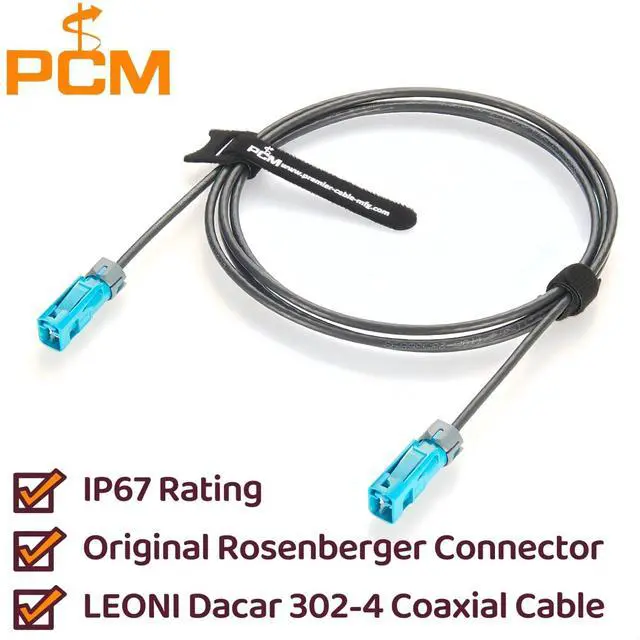

IP67 Waterproof Rosenberger Fakra Z Female to Female RF Coaxial Cable 59Z163-003-Z Vehicle GPS Antenna Cable for GMSL2 & FPD-Link III Camera, ADAS, Embedded Vision Cameras, Infotainment (10M/32.8FT)

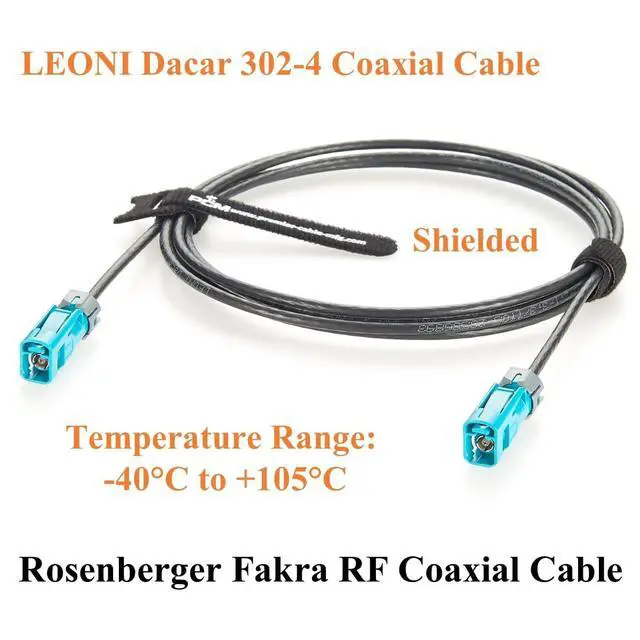

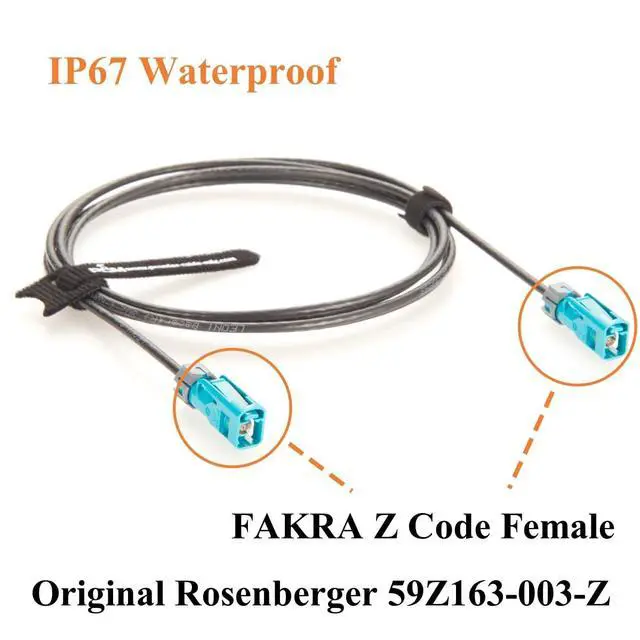

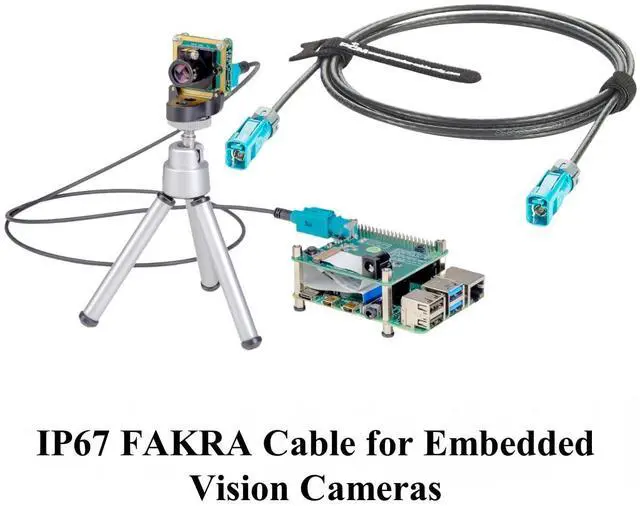

- Original Connector IP67 Waterproof FAKRA Z Female to Female Extension Cable, Both ends are Equipped with Original Rosenberger Fakra Z Code Female Connector (59Z163-003-Z).features latch-locking mechanism, effectively preventing loosening or disconnection caused by vibration or external mechanical pressure.; IP67 Waterproof & Shielded Cable The FAKRA Z Code Female Connector Rated for IP67, preventing water, dust from entering. The Vehicle Car GPS Antenna Extension Cable With LEONI DACRA 302-4 Coaxial shielded cable,50 Impedance, DC-6GHZ Frequency, and minimizing electromagnetic interference (EMI) and radio frequency interference (RFI).; Durability FPD-Link III GMSL2 FAKRA Extension Cable, operating temperatures ranging from -40°C to +105°C, ensuring long-term, stable performance in extreme conditions.; Applications Rosenberger Fakra Z RF Coaxial Cable, for ADAS,In-Vehicle Infotainment (IVI), FPD-Link/GMSL Cameras, Telematics, GPS Navigation, Embedded Vision Cameras, Video Surveillance Systems, Back Camera, Machine Vision, Satellite Radio Antenna, V2X, Wireless Communication Systems, In-Vehicle Monitoring Systems (IVMS), AM/FM Radio, DAB, 4G LTE, Bluetooth Module, DAB, Radar Systems and so on.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

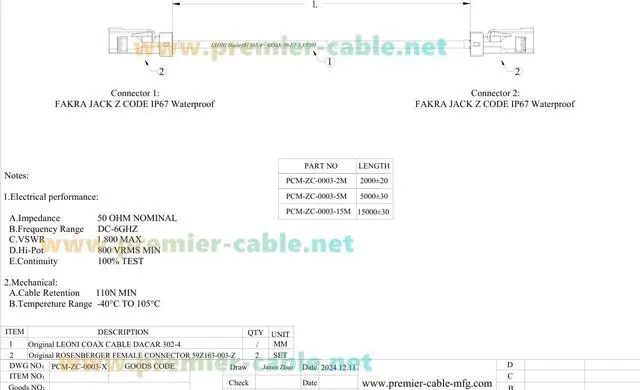

Specification: Part No.: PCM-ZC-0003
Connector: FAKRA Z Code Female Connector, Rosenberger 59Z163-003-Z
Waterproof Rating: IP67
Cable Length: 1m/2m/3m/5m/10m/15m
Optional Wire: LEONI Dacar 302-4 Coaxial

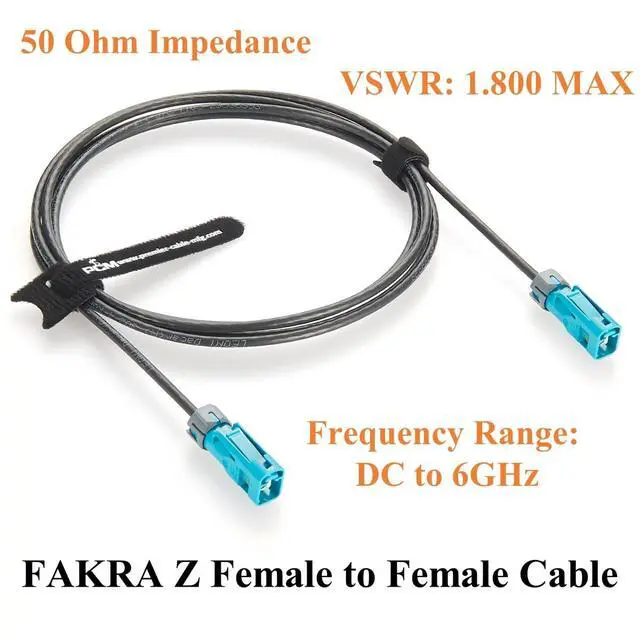

Cable Electrical Impedance: 50 Ohm
Frequency Range: DC to 6GHz
VSWR: 1.800
MAX Hi-Pot: 800 VRMS MIN
Temperature Range: -40°C to +105°C
Connector: FAKRA Z Code Female Connector, Rosenberger 59Z163-003-Z
Waterproof Rating: IP67
Cable Length: 1m/2m/3m/5m/10m/15m
Optional Wire: LEONI Dacar 302-4 Coaxial
Cable Electrical Impedance: 50 Ohm
Frequency Range: DC to 6GHz
VSWR: 1.800
MAX Hi-Pot: 800 VRMS MIN
Temperature Range: -40°C to +105°C
