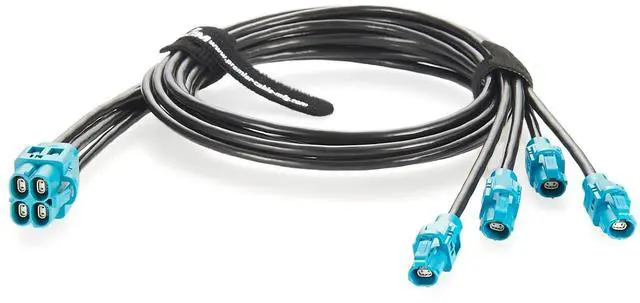

Rosenberger H-MTD Four-Cavity to Four Single-Port Automotive Ethernet Cable 10Gbps E6K10D-1CAZ5-Z to E6K10A-1CAZ5-Z H-MTD 4-In-1 Splitter Wire for NVIDIA DRIVE AGX Thor, ADAS, Robotaxi (0.5M/1.64FT)

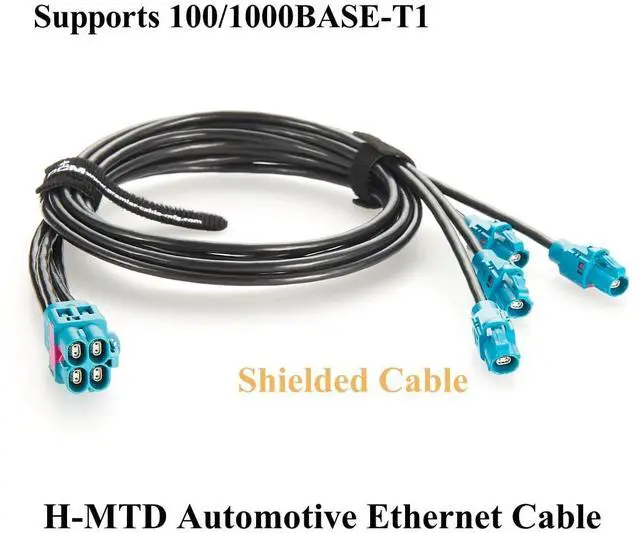

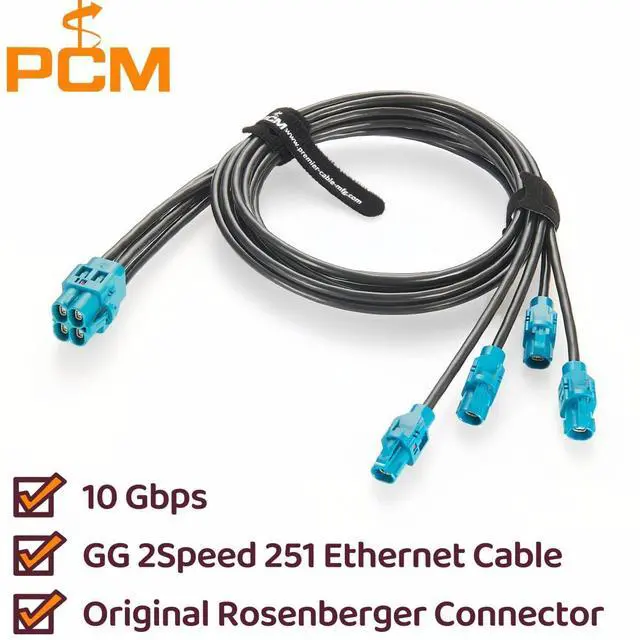

- H-MTD Automotive Ethernet Cable The H-MTD E6K10D-1CAZ5-Z to E6K10A-1CAZ5-Z Ethernet Cable, Equipped with Original Rosenberger E6K10D four-cavity to E6K10A single-port connector.; 10Gbps High Speed The H-MTD 4 Cavity Female to 4 Port Female Ethernet Cable, Supports Transmission Rates of up to 10Gbps,enabling real-time data exchange and efficient communication between in-vehicle devices.; Shielded Cable The Vehicle Automotive Ethernet Harness utilizes the GG 2Speed 251 shielded cable,100 Impedance, effectively preventing external electromagnetic interference (EMI) and radio frequency interference (RFI).; Supported Protocols The H-MTD E6K10D to E6K10A Cable Supports 100BASE-T1, 1000BASE-T1, 2.5/5/10GBASE-T1, APIX, FPD-Link, GMSL, MIPI A-PHY, PCIe, USB, GVIF, HDBase-T, and ASA Motion Link, facilitating high-speed data transmission between different devices and systems.; Application Rosenberger H-MTD 10Gbps Ethernet Cable for NVIDIA DRIVE AGX Thor, Bench DevKit, In-Vehicle DevKit, ADAS, Camera, ECU, Autonomous Driving, In-Vehicle Infotainment Systems, Telematics, GPS Navigation, High-Resolution Displays 4K, High-Speed Data (H-MTD) Switch, Enhanced Ethernet Switch H-MTD, 100/1000BASE-T1 Media Converter.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

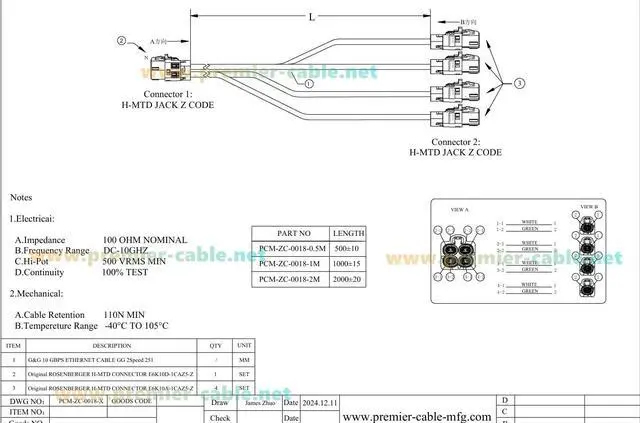

Specification: Interface

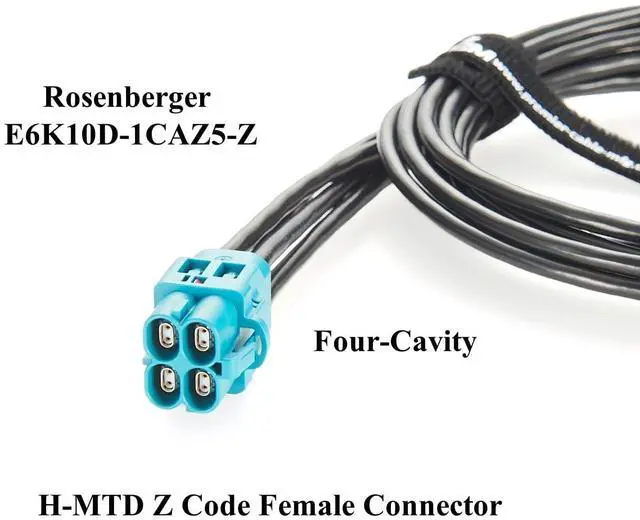

A: H-MTD Female Connector, Four-Cavity, E6K10D-1CAZ5-Z

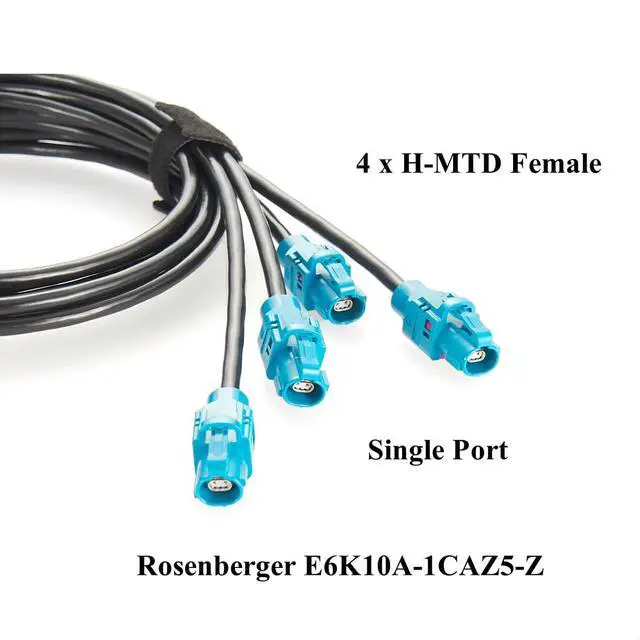

Interface B: 4PCS X H-MTD Connector, Single Port, E6K10A-1CAZ5-Z
Coding: Z Coding (Universal)
Color / RAL: Water Blue / 5021
Cable Length: 0.5 m, 1m, 2m
Transmission Rate: Up to 10
Gbps Wire: GG 2Speed 251

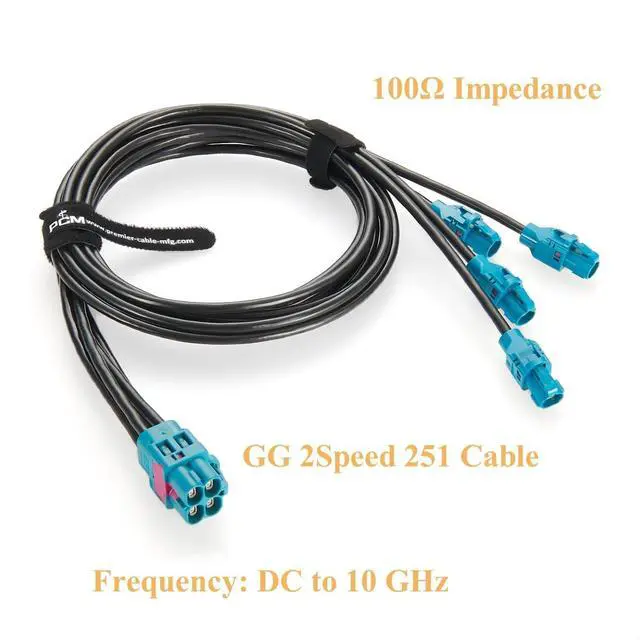

Impedance: 100
Frequency: DC to 10
GHz Shielded: Yes
Temperature Range: -40 °C to +105 °C
A: H-MTD Female Connector, Four-Cavity, E6K10D-1CAZ5-Z
Interface B: 4PCS X H-MTD Connector, Single Port, E6K10A-1CAZ5-Z
Coding: Z Coding (Universal)
Color / RAL: Water Blue / 5021
Cable Length: 0.5 m, 1m, 2m
Transmission Rate: Up to 10
Gbps Wire: GG 2Speed 251
Impedance: 100
Frequency: DC to 10
GHz Shielded: Yes
Temperature Range: -40 °C to +105 °C
