USB C Hub, 4-in-1 Screw Panel Mount Multiport Adapter, RS232 DB9, Gigabit Ethernet, 10Gbps USB-A & USB-C Data Ports, for Control Panel, Windows, macOS, Linux (1.5M)
- 4-in-1 USB C Expansion Hub This 4-in-1 USB-C hub expands one USB-C port into DB9 RS232, 10Gbps USB-C & USB-A Ports, RJ45 Gigabit RJ45 Ethernet. No Driver Required, Plug and Play. Compatible with Windows, macOS, Linux, Android and most USB-C laptops.; Screw Panel Mount The USB C Multiport Hub Designed with #4-40UNC Dual Screw Holes, for Fixed Installation On Control Cabinets, Enclosures, Equipment Panels, Desks. for Industrial Equipment, Industrial PC, Office Workstations.; RS232 DB9 Serial Integrated DB9 RS-232 serial port powered by FT232RNL chipset, providing stable and reliable communication for PLCs, industrial equipment, POS systems, serial printers, and device debugging.; Gigabit Ethernet The RJ45 port supports 10/100/1000 Mbps, providing a fast and stable wired network for video conferencing, online meetings, and large file downloads.; SuperSpeed 10Gbps USB-A & USB-C The USB-C and USB-A ports Both support USB 3.2 Gen 2, delivering data transfer speeds up to 10Gbps for fast and stable performance. The USB-A provides 5V/0.9A Power Output, and USB-C port provides 5V/3A power output for connected external SSDs, flash drives, keyboards, mice, and other USB peripherals.(Note: These ports support data transfer and power output only and Do NOT Support PD Fast Charging or Video Output.); High Quality & Durable The 4 in 1 Panel Mount USB C Hub uses multi-core copper wire conductors, offers excellent conductivity. Aluminum foil + Metal braid shielding to effect
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

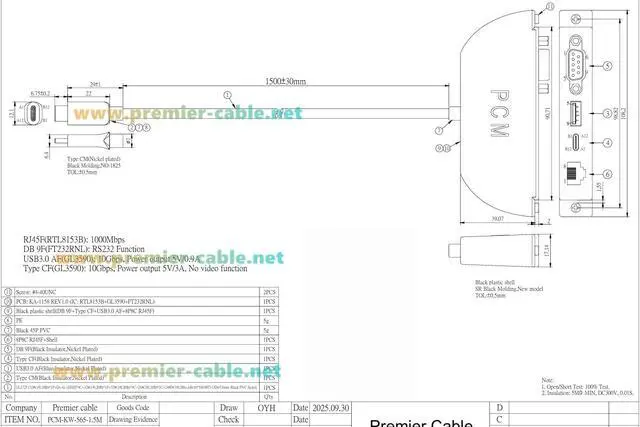

Specification: Product
Name: 4 in 1 Panel Mount USB C Hub Multiport Adapter
Part No.: PCM-KW-565
Length: 0.3 m/ 1.5 m
Optional Mounting Method: Dual Screw
Panel Mount Screw: #4-40UNC
Input Interface: USB-C Male (Connects to Host Device)
RJ45 Ethernet Port: 10/100/1000Mbps, Gigabit
Ethernet DB9 Port: RS232 Serial, With
FT232RNL Chip USB-A Port: Up to 10Gbps, Power Output 5V/ 0.9A, USB 3.2 Gen 2
USB-C Port: Up to 10Gbps, Power Output 5V/3A, USB 3.2 Gen 2, *Does NOT Support Video Output or Power Delivery Fast Charging*.
Name: 4 in 1 Panel Mount USB C Hub Multiport Adapter
Part No.: PCM-KW-565
Length: 0.3 m/ 1.5 m
Optional Mounting Method: Dual Screw
Panel Mount Screw: #4-40UNC
Input Interface: USB-C Male (Connects to Host Device)
RJ45 Ethernet Port: 10/100/1000Mbps, Gigabit
Ethernet DB9 Port: RS232 Serial, With
FT232RNL Chip USB-A Port: Up to 10Gbps, Power Output 5V/ 0.9A, USB 3.2 Gen 2
USB-C Port: Up to 10Gbps, Power Output 5V/3A, USB 3.2 Gen 2, *Does NOT Support Video Output or Power Delivery Fast Charging*.
