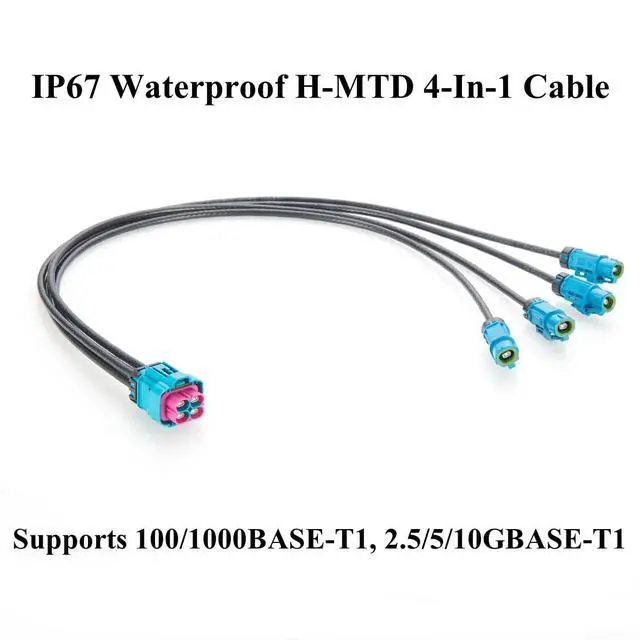

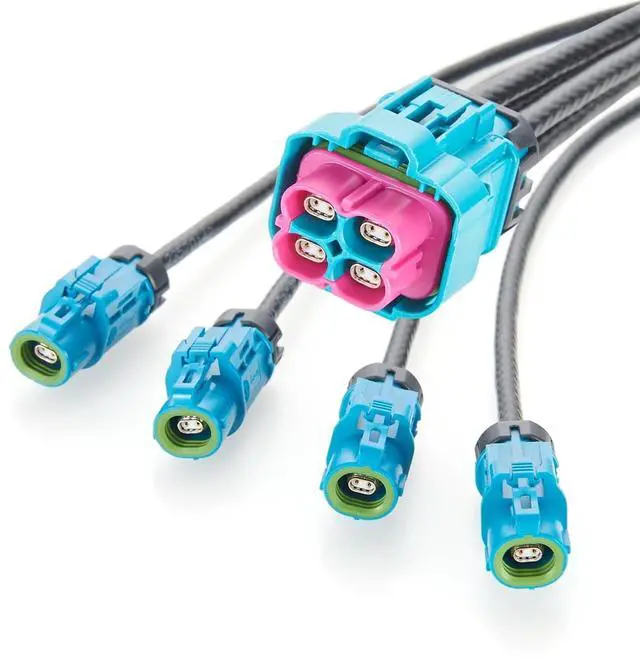

IP67 Waterproof 4-in-1 H-MTD Z Code Female to Female Automotive Ethernet Breakout Cable E6K14D-1CAZ5-Z to E6K14A-1CAZ5-Z for ADAS, Camera, LiDAR (0.5M/1.64FT)

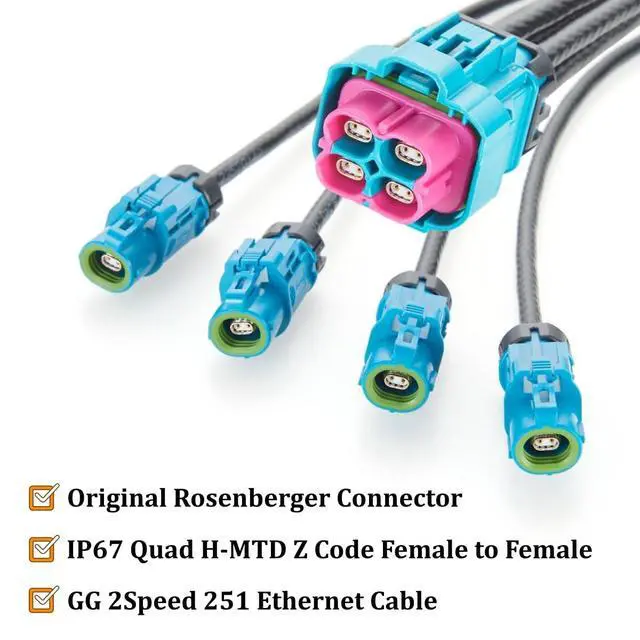

- Original H-MTD Connector Quad H-MTD Automotive Ethernet Cable, equipped with Waterproof Rosenberger Quad H-MTD Z Code Female Connector (E6K14D-1CAZ5-Z), and 4 Ports Individual H-MTD Z Code Female Connector (E6K14A-1CAZ5-Z). Universal Z coding design to prevent mis-mating.; IP67 Waterproof 4-in-1 H-MTD Z Code Female connector ends feature sealed waterproof construction, providing IP67 protection against dust and water ingress. for demanding vehicle environments, with an operating temperature range of -40°C to +105°C.; 10Gbps High Speed IP67 Waterproof Quad H-MTD Z Code Female to Female Vehicle Network Cable, supports up to 10Gbps high-speed data transmission with 100/1000BASE-T1 compatibility, ensuring ultra-low latency and stable communication for ADAS, autonomous driving, and ECU systems.; Supported Protocols The H-MTD 4-In-1 Splitter Harness Supports 100BASE-T1, 1000BASE-T1, 2.5/5/10GBASE-T1, APIX, FPD-Link, GMSL, MIPI A-PHY, PCIe, USB, GVIF, HDBase-T, and ASA Motion Link, facilitating high-speed data transmission between different devices and systems.; 100 Ohm & DC10GHz The Four Cavity H-MTD Vehicle Ethernet Harness, Built with GG 2Speed 251 shielded twisted-pair cable, Support 100 Ohm Impedance and DC-10GHZ Frequency, resist electromagnetic interference (EMI/RFI). features 800 VRMS dielectric strength and 110N cable retention, providing superior resistance to vibration and mechanical stress.; Wide Applications 10Gbps High-Speed Data Harness, ideal fo
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product
Name: IP67 Waterproof 4-In-1 H-MTD Z Code Female to Female Automotive Ethernet Breakout Cable
Part No.: PCM-ZC-0034
Cable Length: 0.5M / 1.64FT

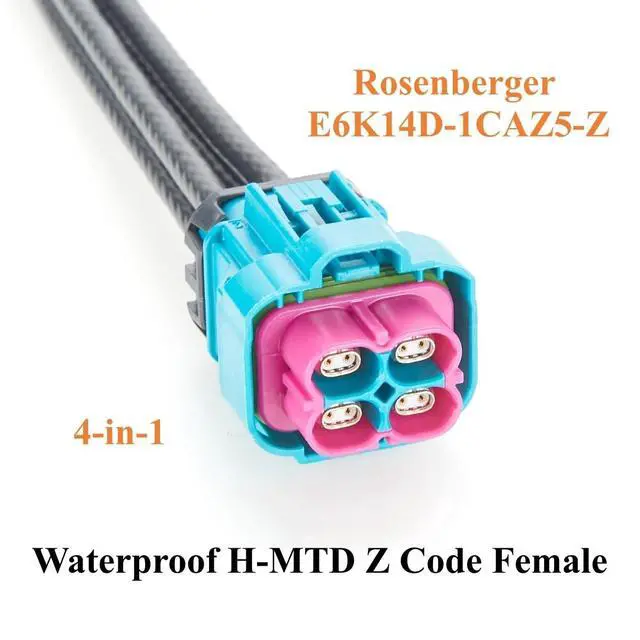

Connector A: 4-in-1 H-MTD Z Code Female Connector, Four-Cavity, IP67 Waterproof, Rosenberger E6K14D-1CAZ5-Z

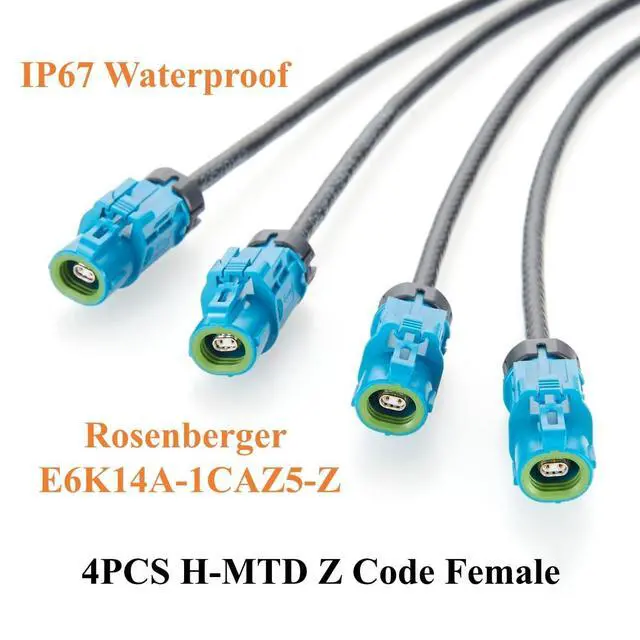

Connector B: 4PCS X H-MTD Z Code Female Connector, Single Port, IP67 Waterproof, Rosenberger

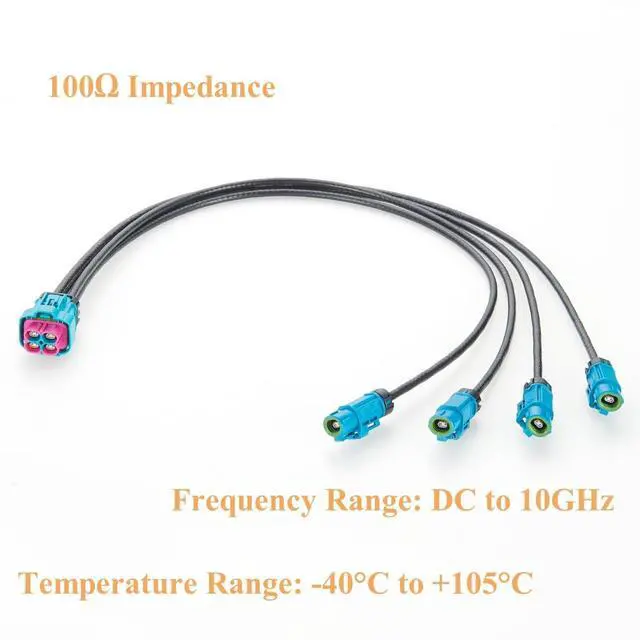

E6K14A-1CAZ5-Z Impedance: 100 Ohm
Frequency Range: DC-10GHz
Hi-Pot: 500 VRMS MIN
Cable Retention: 110N MIN
Operating Temperature Range: -40°C to +105°C

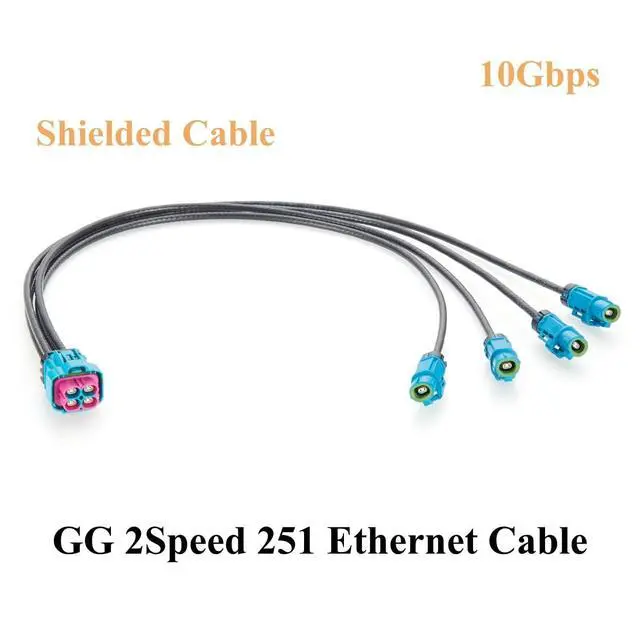

Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
Name: IP67 Waterproof 4-In-1 H-MTD Z Code Female to Female Automotive Ethernet Breakout Cable
Part No.: PCM-ZC-0034
Cable Length: 0.5M / 1.64FT
Connector A: 4-in-1 H-MTD Z Code Female Connector, Four-Cavity, IP67 Waterproof, Rosenberger E6K14D-1CAZ5-Z
Connector B: 4PCS X H-MTD Z Code Female Connector, Single Port, IP67 Waterproof, Rosenberger
E6K14A-1CAZ5-Z Impedance: 100 Ohm
Frequency Range: DC-10GHz
Hi-Pot: 500 VRMS MIN
Cable Retention: 110N MIN
Operating Temperature Range: -40°C to +105°C
Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
