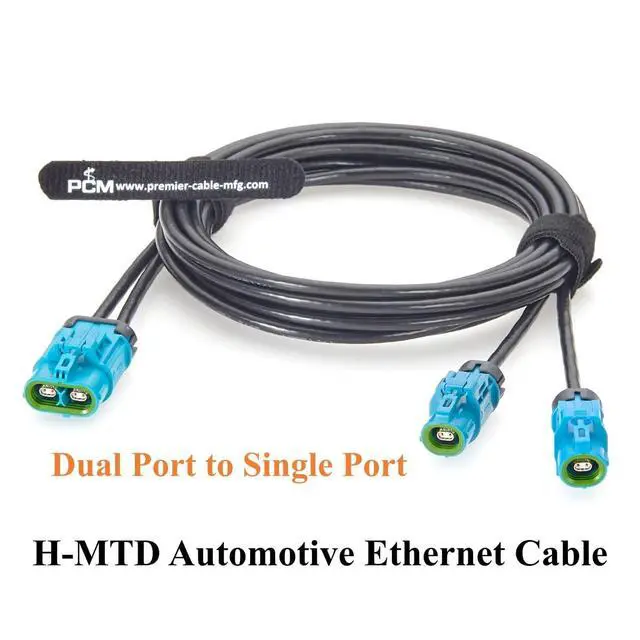

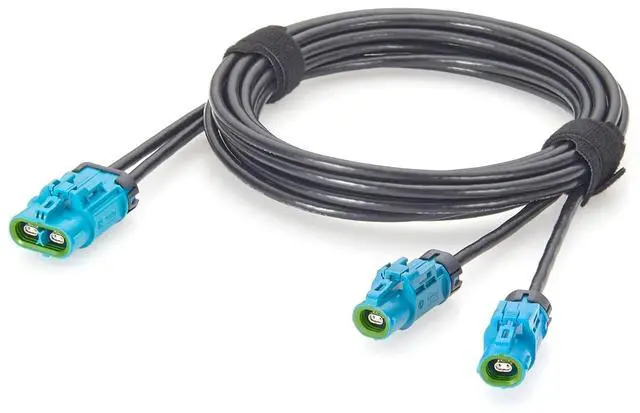

IP67 Waterproof Rosenberger 2-in-1 H-MTD Automotive Ethernet Cable Dual-Port Female to H-MTD Female E6K14B-1CAZ5-Z to E6K14A-1CAZ5-Z 10Gbps Vehicle Network Cable for ADAS, ECU, LiDAR (2M/6.6FT)

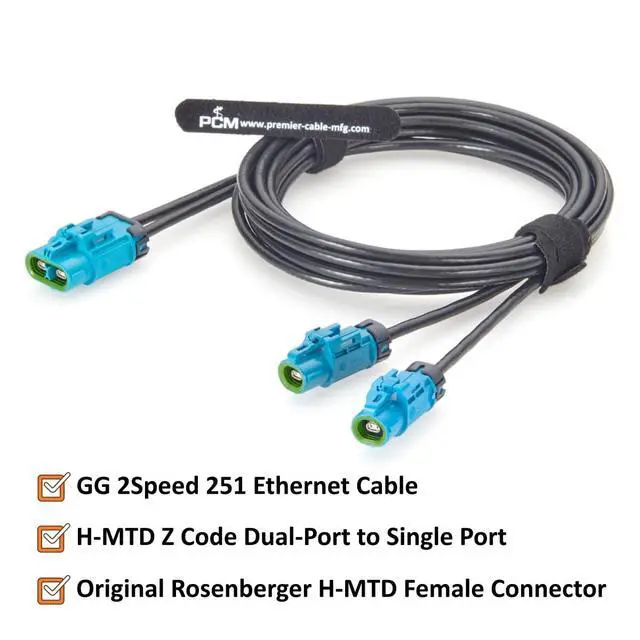

- Original Rosenberger H-MTD Connector 2-in-1 H-MTD Z Code Automotive Ethernet Cable, Equipped with Rosenberger Dual-Port H-MTD Z Code Female Connector (E6K14B-1CAZ5-Z), and 2*Rosenberger H-MTD Z Code Female Connector (E6K14A-1CAZ5-Z). Universal Z coding design to prevent mis-mating.; 10Gbps High Speed Rosenberger H-MTD Vehicle Network Cable, supports up to 10Gbps high-speed data transmission with 100/1000BASE-T1 compatibility, ensuring ultra-low latency and stable communication for ADAS, autonomous driving, and ECU systems.; IP67 Waterproof & Automotive-Grade 2-in-1 H-MTD Automotive Ethernet Breakout Cable, designed with sealed connector structure and rugged shielding, delivers IP67 level protection against water, dust, vibration, and harsh environmental conditions.; 100 Ohm & DC10GHz The Waterproof Rosenberger H-MTD Vehicle Ethernet Harness, Built with GG 2Speed 251 shielded twisted-pair cable, Support 100 Ohm Impedance and DC-10GHZ Frequency, resist electromagnetic interference (EMI/RFI).; Applications The H-MTD Dual Port to Single Port Automotive Ethernet Cable, Ideal for ADAS cameras, LiDAR sensors, ECU communication, LiDAR, domain controllers, Robotaxi platforms, telematics systems, autonomous driving, in-vehicle infotainment, and GPS Navigation.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems prop
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

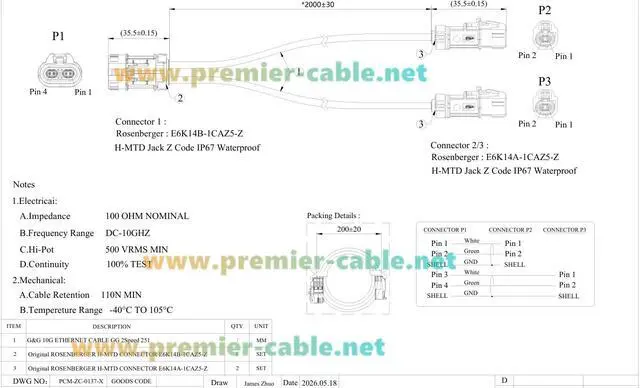

Specification: Product
Name: Rosenberger 2-in-1 H-MTD Automotive Ethernet Cable, Waterproof Dual-Port Female to H-MTD Female
Part No.: PCM-ZC-0137

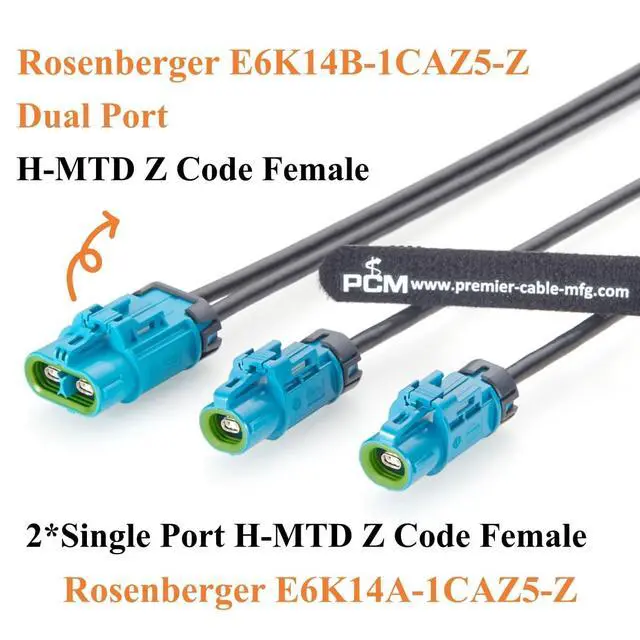

Connector A: Original Rosenberger Waterproof H-MTD Z Code Female Connector, Dual Port, E6K14B-1CAZ5-Z
Connector B: 2*Original Rosenberger Waterproof H-MTD Z Code Female Connector, E6K14A-1CAZ5-Z
Coding: Coding Z (Universal)
Cable Length: 2M/ 6.6FT
Waterproof Rating: IP67

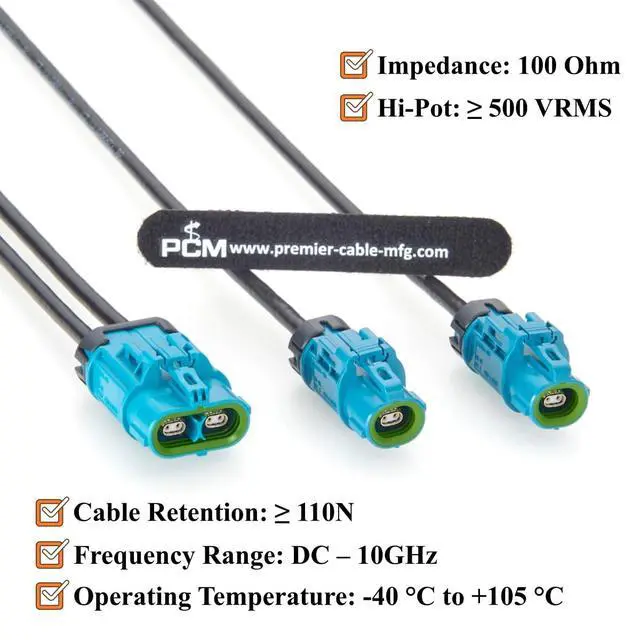

Impedance: 100 Ohm
Frequency Range: DC 10GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C

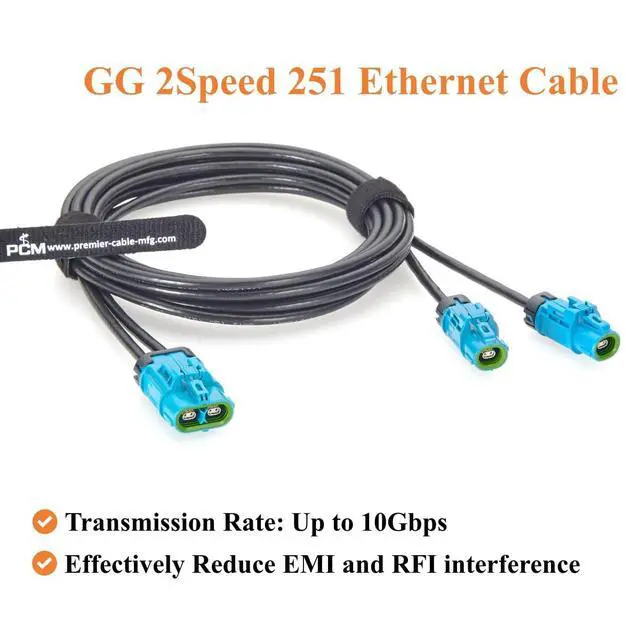

Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
Name: Rosenberger 2-in-1 H-MTD Automotive Ethernet Cable, Waterproof Dual-Port Female to H-MTD Female
Part No.: PCM-ZC-0137
Connector A: Original Rosenberger Waterproof H-MTD Z Code Female Connector, Dual Port, E6K14B-1CAZ5-Z
Connector B: 2*Original Rosenberger Waterproof H-MTD Z Code Female Connector, E6K14A-1CAZ5-Z
Coding: Coding Z (Universal)
Cable Length: 2M/ 6.6FT
Waterproof Rating: IP67
Impedance: 100 Ohm
Frequency Range: DC 10GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C
Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
