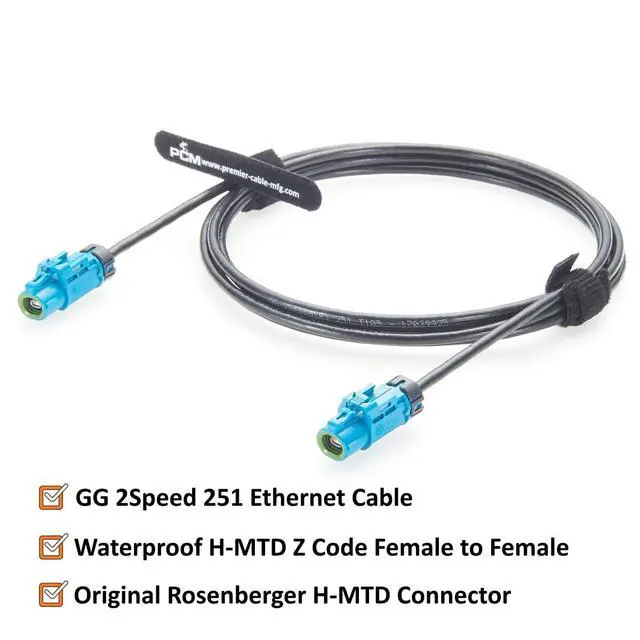

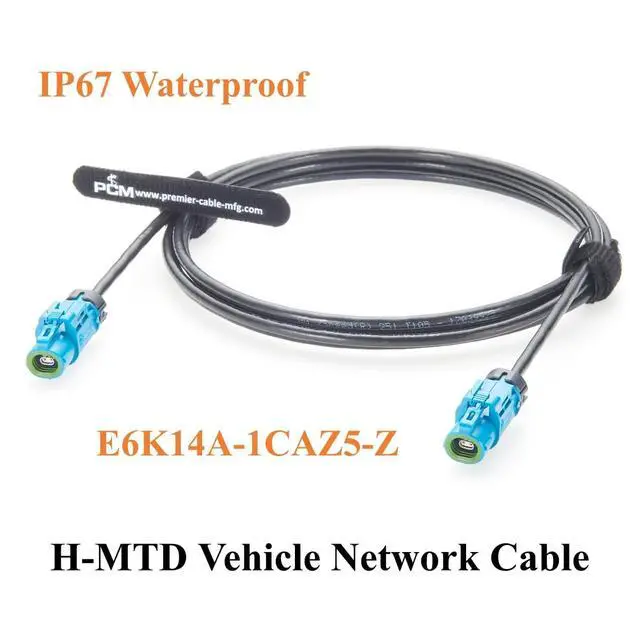

IP67 Waterproof H-MTD Female to Female Automotive Ethernet Cable Rosenberger E6K14A-1CAZ5-Z 10Gbps 100/1000BASE-T1 Vehicle Network Cable for ADAS Camera, Robotaxi, ECU, Radar, Telematics (2M/6.6FT)
- Original Rosenberger H-MTD Connector H-MTD Z Code Female to Female Ethernet Cable, Equipped with Rosenberger H-MTD Z Code Female Connector (E6K14A-1CAZ5-Z). Universal Z coding design to prevent mis-mating.; 10Gbps High Speed Rosenberger H-MTD Vehicle Network Cable, supports up to 10Gbps high-speed data transmission with 100/1000BASE-T1 compatibility, ensuring ultra-low latency and stable communication for ADAS, autonomous driving, and ECU systems.; IP67 Waterproof & Automotive-Grade H-MTD Automotive Ethernet Cable, designed with sealed connector structure and rugged shielding, delivers IP67 level protection against water, dust, vibration, and harsh environmental conditions.; 100 Ohm & DC10GHz The Waterproof Rosenberger H-MTD Vehicle Ethernet Harness, Built with GG 2Speed 251 shielded twisted-pair cable, Support 100 Ohm Impedance and DC-10GHZ Frequency, resist electromagnetic interference (EMI/RFI).; Applications The H-MTD Gigabit Automotive Ethernet Cable, Ideal for ADAS cameras, LiDAR sensors, ECU communication, domain controllers, Robotaxi platforms, telematics systems, autonomous Driving, in-vehicle infotainment, and GPS Navigation.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

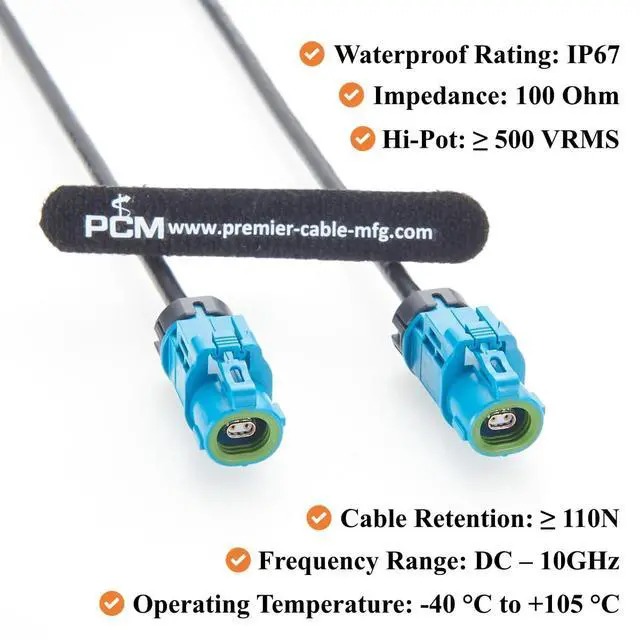

Specification: Product
Name: Waterproof Rosenberger H-MTD Female to Female Automotive Ethernet Cable
Part No.: PCM-ZC-0097

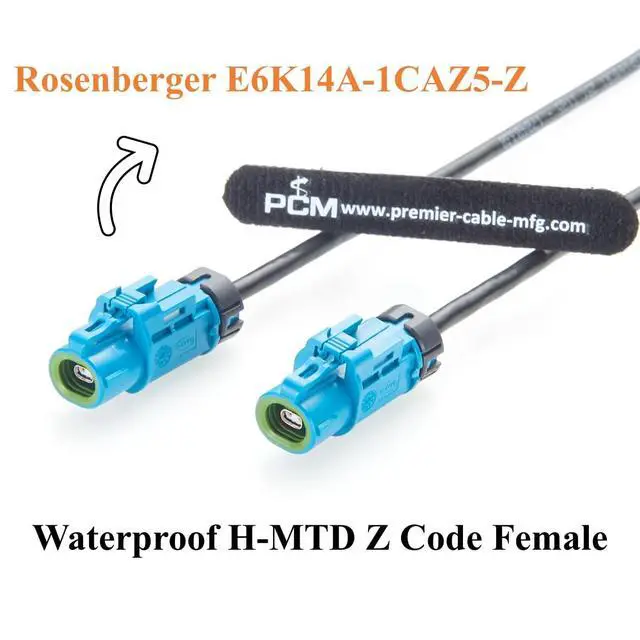

Connector Type: Original Rosenberger Waterproof H-MTD Z Code Female Connector, E6K14A-1CAZ5-Z
Coding: Coding Z (Universal)
Cable Length: 2M/5M/10M Optional
Waterproof Rating: IP67
Impedance: 100 Ohm
Frequency Range: DC 10GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C

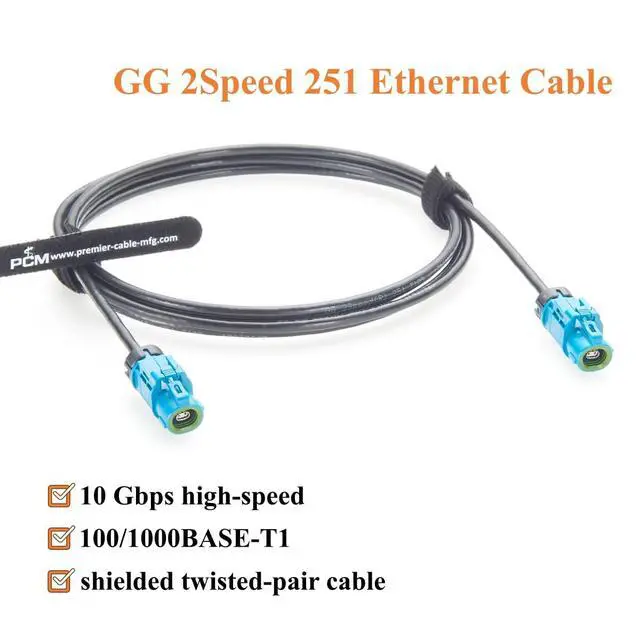

Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
Name: Waterproof Rosenberger H-MTD Female to Female Automotive Ethernet Cable
Part No.: PCM-ZC-0097
Connector Type: Original Rosenberger Waterproof H-MTD Z Code Female Connector, E6K14A-1CAZ5-Z
Coding: Coding Z (Universal)
Cable Length: 2M/5M/10M Optional
Waterproof Rating: IP67
Impedance: 100 Ohm
Frequency Range: DC 10GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C
Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
