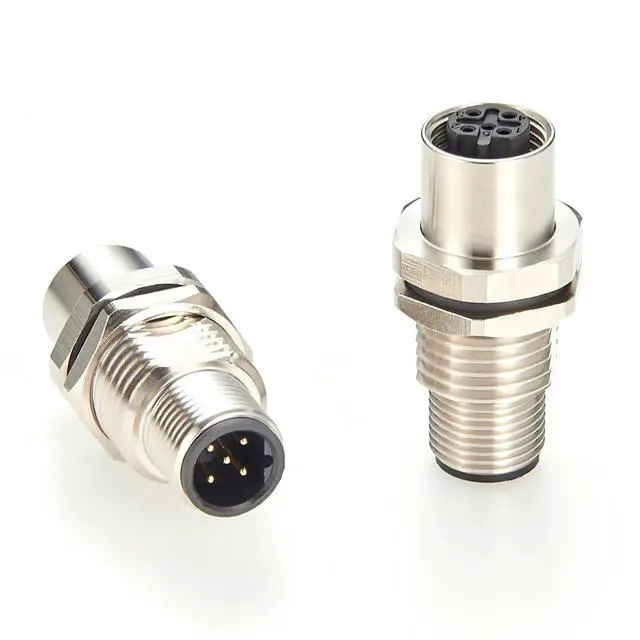

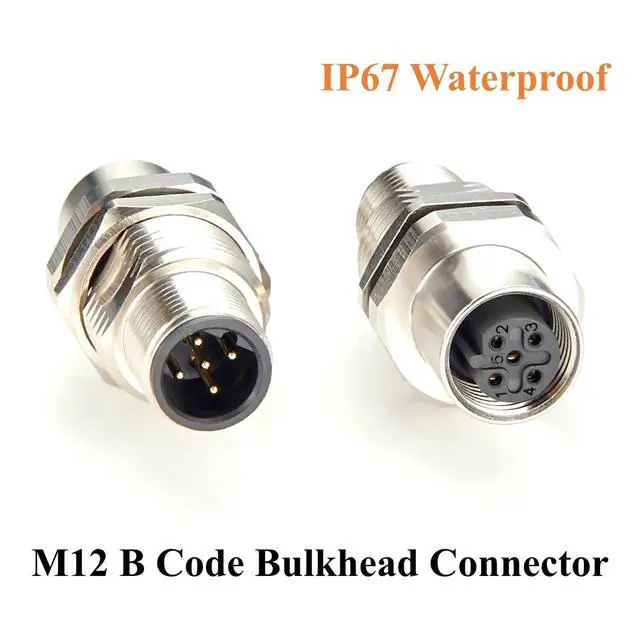

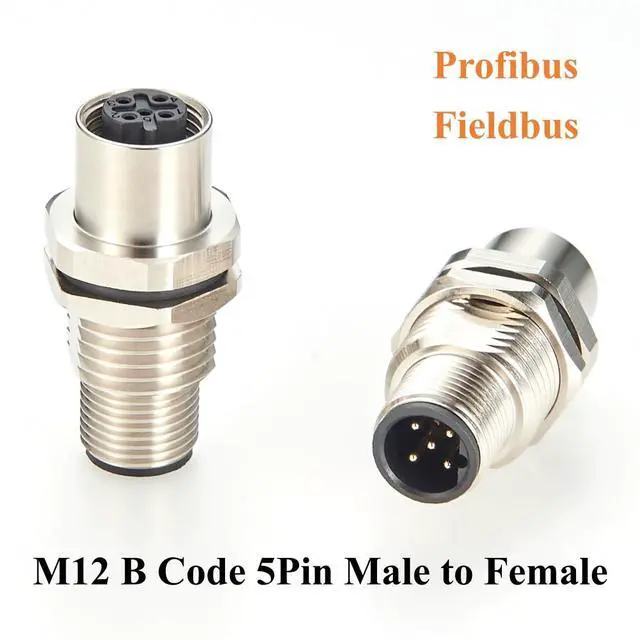

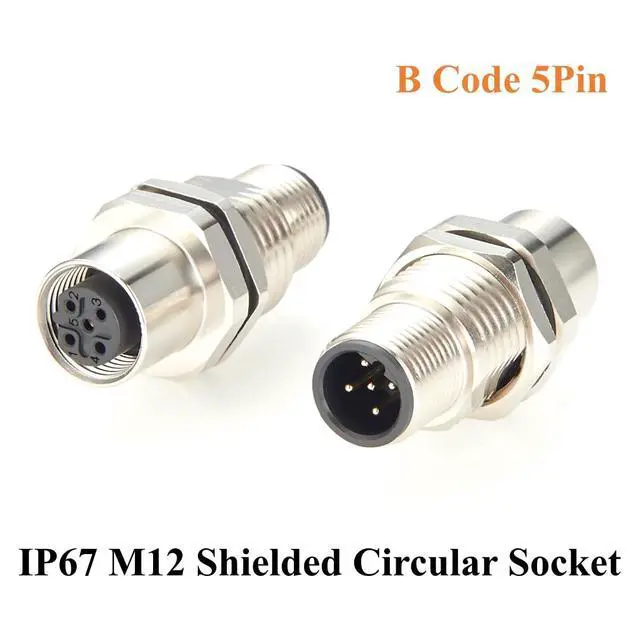

M12 B Code 5Pin Male to Female Feedthrough Bulkhead Connector IP67 Panel Mount Profibus Pass-Thru Adapter Shielded M12 Circular Socket for Industrial Automation, Control Cabinets (2PCS)
- Industrial M12 B-Code M12 B Code 5Pin Male to Female Bulkhead Connector, Designed with a B-coded 5-pin configuration for PROFIBUS and industrial fieldbus applications. Ensures reliable signal transmission.; Panel Mount M12 B Code Male to Female Bulkhead Connector is thread locking mechanism, Simply cut 16.5mm hole in the board and secure with the nut, Eesy to install. for control cabinet panels, automation systems, junction boxes, and industrial enclosures.; IP67 Waterproof & Dustproof When the M12 B Code 5Pin Feedthrough Receptacle is locked correctly, With O-ring Sealing, IP67 Waterproof Shielded Socket, for EMI protection. Rugged Copper shell, corrosion resistance, providing excellent protection in harsh industrial environments.; Application IP67 M12 B Code Shielded Industrial Circular Connector for PROFIBUS, fieldbus, sensors, actuators, motion controllers, PLC systems, Industrial automation, Control Cabinet, control panels, communication gateways, Robotics and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product

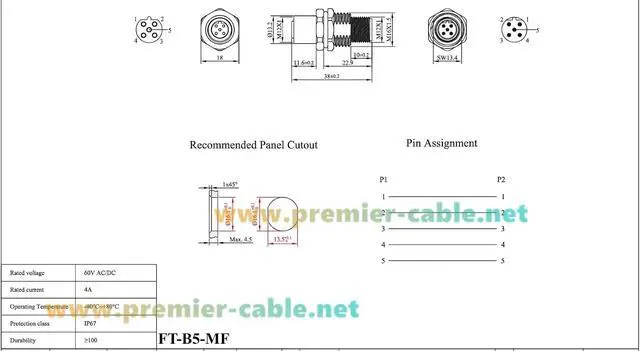

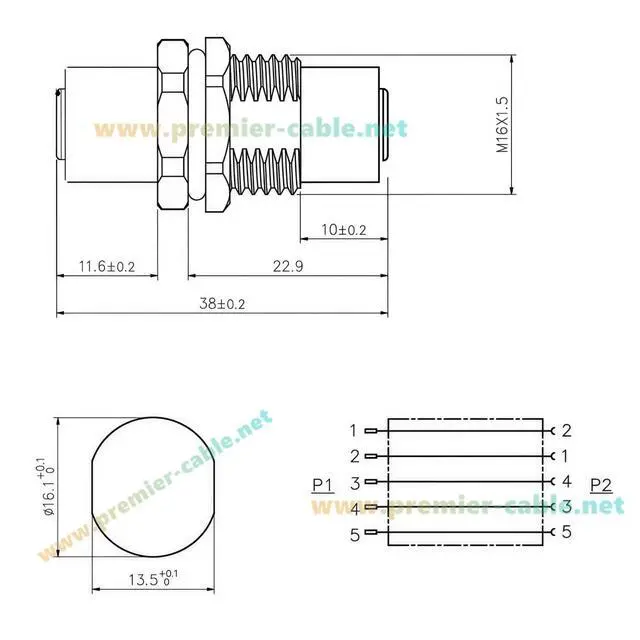

Name: M12 B Code 5Pin Male to Female Connector DWG No.: FT-B5-MF
Connector A: M12 B-Coded 5Pin Male
Connector B: M12 B-Coded 5Pin Female
Panel Mount: Bulkhead PassThrough Panel
Mount Protection Class: IP67 Panel

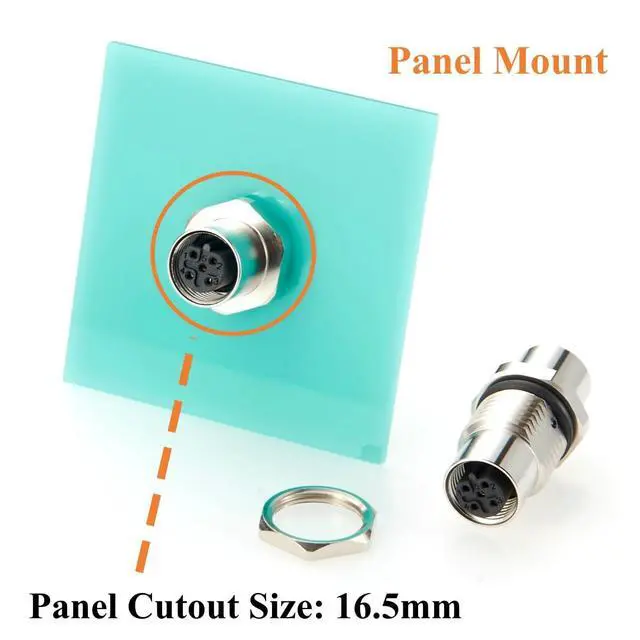

Cutout Size: 16.5 mm
Sealing: O-ring
Sealing Contact: Cooper
Alloy Shielding: Full
Shielded Rated voltage: 60V
AC/DC Rated current: 4A
Hexagonal nut: M16 X 1.5
Name: M12 B Code 5Pin Male to Female Connector DWG No.: FT-B5-MF
Connector A: M12 B-Coded 5Pin Male
Connector B: M12 B-Coded 5Pin Female
Panel Mount: Bulkhead PassThrough Panel
Mount Protection Class: IP67 Panel
Cutout Size: 16.5 mm
Sealing: O-ring
Sealing Contact: Cooper
Alloy Shielding: Full
Shielded Rated voltage: 60V
AC/DC Rated current: 4A
Hexagonal nut: M16 X 1.5
