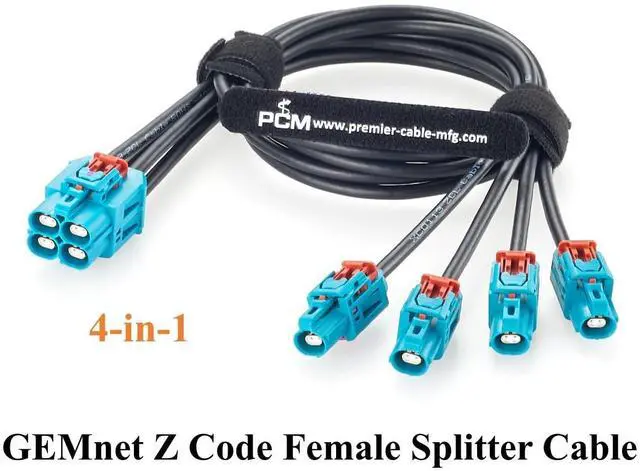

TE 4-in-1 GEMnet Z Code Female Automotive Ethernet Cable(0.5M/1.64FT)

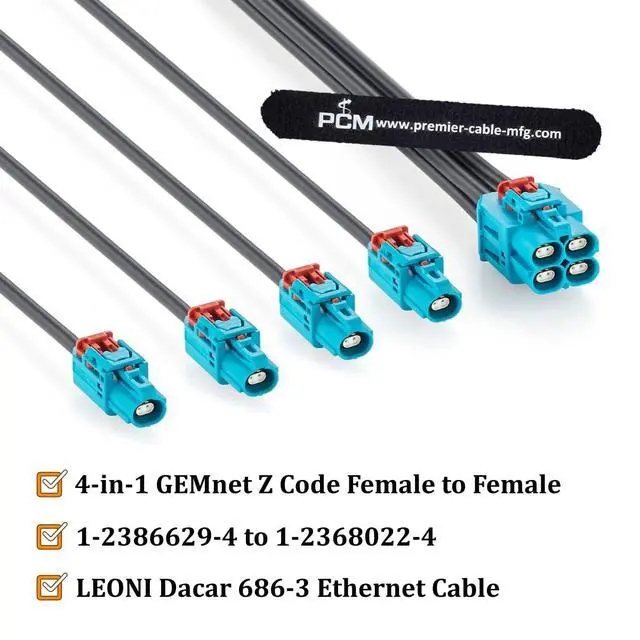

- Original TE GEMnet Connector 4-in-1 GEMnet Z Code Female to 4 Port Female Cable, Equipped with TE Connectivity Quad GEMnet Z Code Female Connector (1-2386629-4), and 4 Ports Individual GEMnet Z Code Female Connector (1-2368022-4). providing secure locking, vibration resistance and dependable automotive-grade connectivity.; 10Gbps High Speed TE GEMnet Vehicle Network Cable, supports up to 10Gbps high-speed data transmission with 100/1000BASE-T1 compatibility, ensuring ultra-low latency and stable communication for ADAS, autonomous driving, and ECU systems.; LEONI Dacar 686-3 Ethernet Cable The TE GEMnet Automotive Ethernet Breakout Cable, Built with LEONI Dacar 686-3 automotive Ethernet cable, Support 100 Ohm Impedance and DC-10GHZ Frequency, shielded twisted pair design, low insertion loss, excellent EMI/RFI protection, and stable high-frequency signal transmission.; Rugged & Durable The Four Cavity GEMnet Car Ethernet Harness with operating temperatures from -40°C to +105°C, 500 VRMS dielectric strength, and 110N cable retention force, ensuring long-term durability, secure installation, and stable operation under vibration and extreme conditions.; Wide Applications The Quad GEMnet Female to 4 Port Female Car Network Cable, Ideal for Automotive Ethernet networks, ADAS cameras, surround-view systems, LiDAR and radar modules, vehicle gateways, ECU, domain controllers, Robotaxi, telematics, autonomous Driving networks, in-vehicle infotainment, digital cockpit,
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product
Name: TE Quad GEMnet Z Code Female to 4 Port Female Automotive Ethernet Cable
Part No.: PCM-ZC-0185

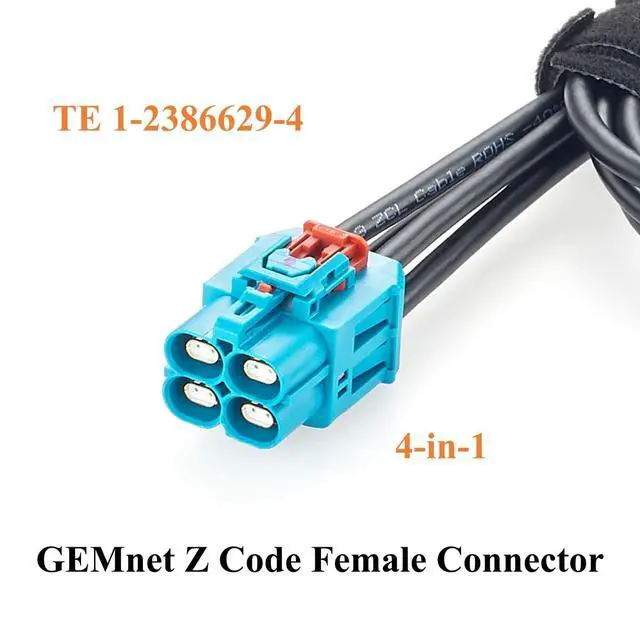

Connector A: 4-in-1 GEMnet Z Code Female Connector, TE 1-2386629-4

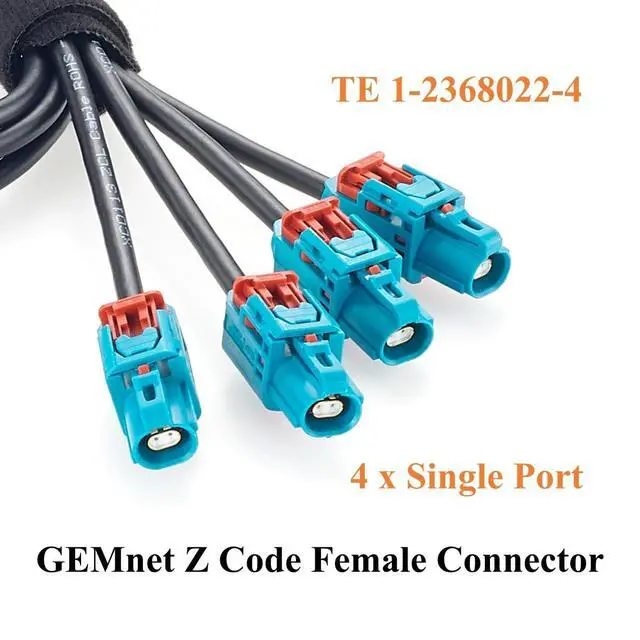

Connector B: 4PCS X GEMnet Z Code Female Connector, Single Port, TE 1-2368022-4
Cable Length: 0.5M / 1.64FT

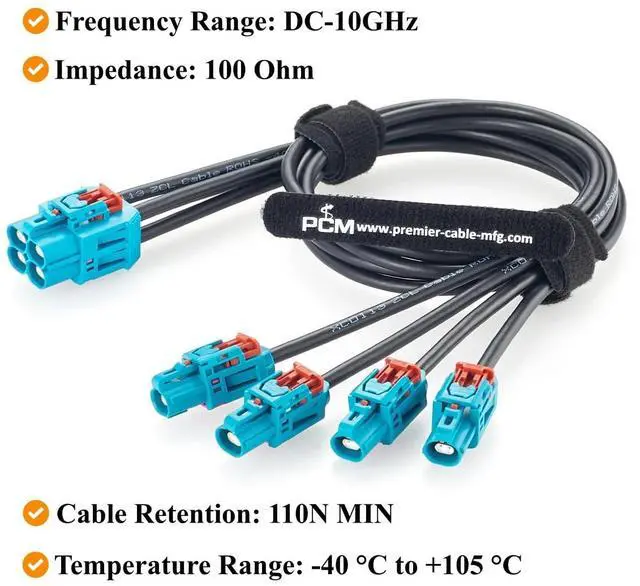

Impedance: 100 Ohm
Frequency Range: DC 10GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C

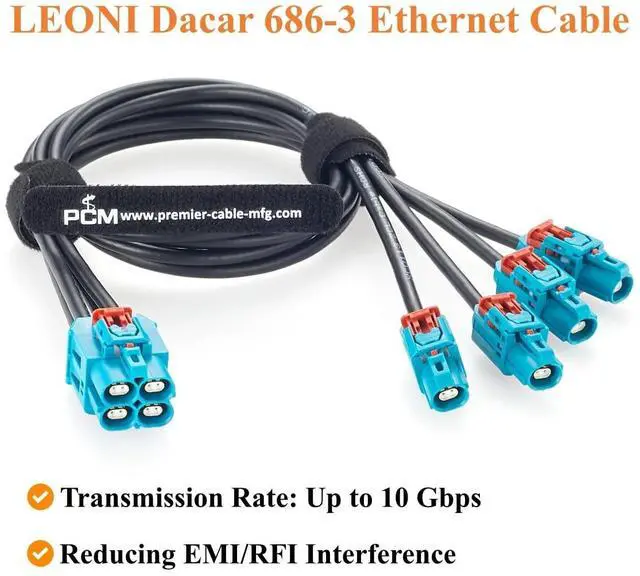

Wire: LEONI Dacar 686-3 Ethernet
Cable Transmission Rate: 100BASE-T1, 1000BASE-T1, 10Gbps
Name: TE Quad GEMnet Z Code Female to 4 Port Female Automotive Ethernet Cable
Part No.: PCM-ZC-0185
Connector A: 4-in-1 GEMnet Z Code Female Connector, TE 1-2386629-4
Connector B: 4PCS X GEMnet Z Code Female Connector, Single Port, TE 1-2368022-4
Cable Length: 0.5M / 1.64FT
Impedance: 100 Ohm
Frequency Range: DC 10GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C
Wire: LEONI Dacar 686-3 Ethernet
Cable Transmission Rate: 100BASE-T1, 1000BASE-T1, 10Gbps
