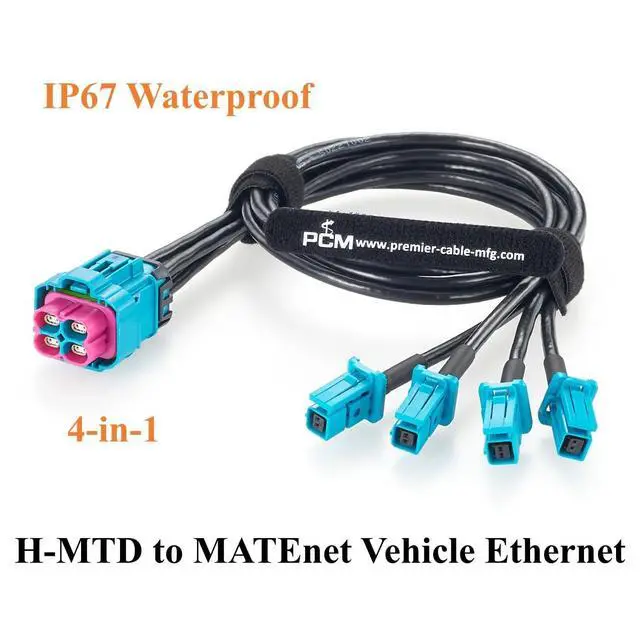

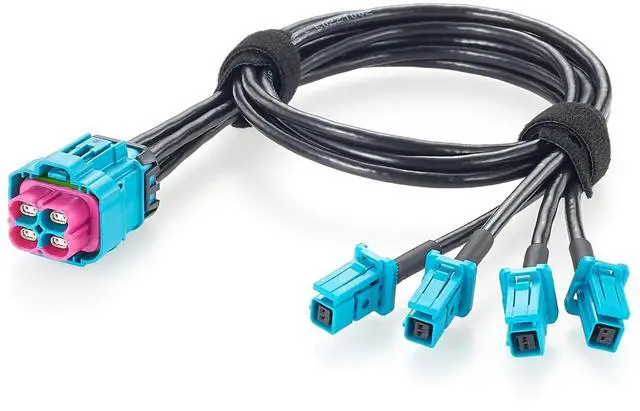

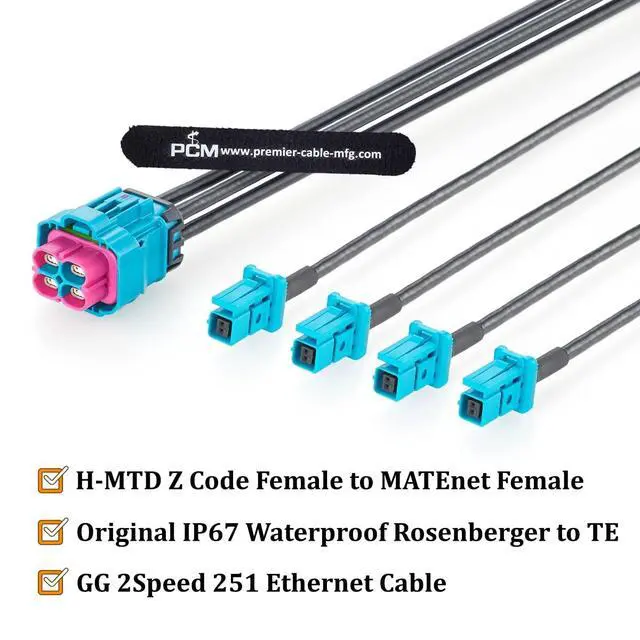

IP67 Waterproof 4-in-1 H-MTD Z Code Female to MATEnet Female Automotive Ethernet Cable 10Gbps E6K14D-1CAZ5-Z to 2302454-9
- Original H-MTD & MATEnet Connector H-MTD to MATEnet Automotive Ethernet Cable, equipped with Waterproof Rosenberger Quad H-MTD Z Code Female Connector (E6K14D-1CAZ5-Z), and 4 Ports Individual TE MATEnet Z Code Female Connector (2302454-9). Universal Z coding design to prevent mis-mating.; IP67 Waterproof 4-in-1 H-MTD Z Code Female connector ends feature sealed waterproof construction, providing IP67 protection against dust and water ingress. for demanding vehicle environments, with an operating temperature range of -40°C to +105°C.; 10Gbps High Speed IP67 Waterproof Quad H-MTD Z Code to MATEnet Vehicle Network Cable, supports up to 10Gbps high-speed data transmission with 100/1000BASE-T1 compatibility, ensuring ultra-low latency and stable communication for ADAS, autonomous driving, and ECU systems.; 100 Ohm & DC10GHz The Four Cavity H-MTD Vehicle Ethernet Harness, Built with GG 2Speed 251 shielded twisted-pair cable, Support 100 Ohm Impedance and DC-10GHZ Frequency, resist electromagnetic interference (EMI/RFI). features 800 VRMS dielectric strength and 110N cable retention, providing superior resistance to vibration and mechanical stress.; Wide Applications 10Gbps High-Speed Data Harness, ideal for Automotive Ethernet, ADAS, Robotaxi, autonomous driving platforms, vehicle networking, ECU, automotive cameras, Domain Controllers, Automotive Sensor Networks, LiDAR, Radar, NVIDIA DRIVE AGX Thor, Infotainment, Telematics, zonal architectures and other high-spe
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product
Name: IP67 Waterproof 4-In-1 H-MTD Z Code Female to MAT
Enet Female Automotive Ethernet Breakout Cable
Part No.: PCM-ZC-0177
Cable Length: 0.5M / 1.64FT

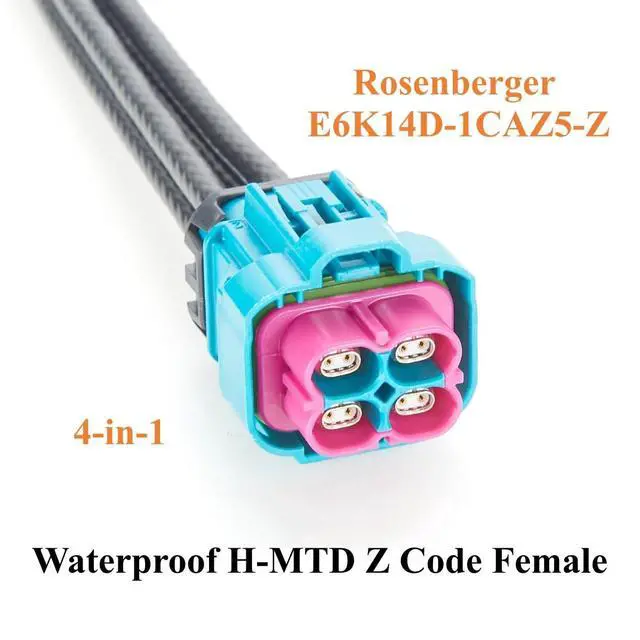

Connector A: 4-in-1 H-MTD Z Code Female Connector, Four-Cavity, IP67 Waterproof, Rosenberger E6K14D-1CAZ5-Z

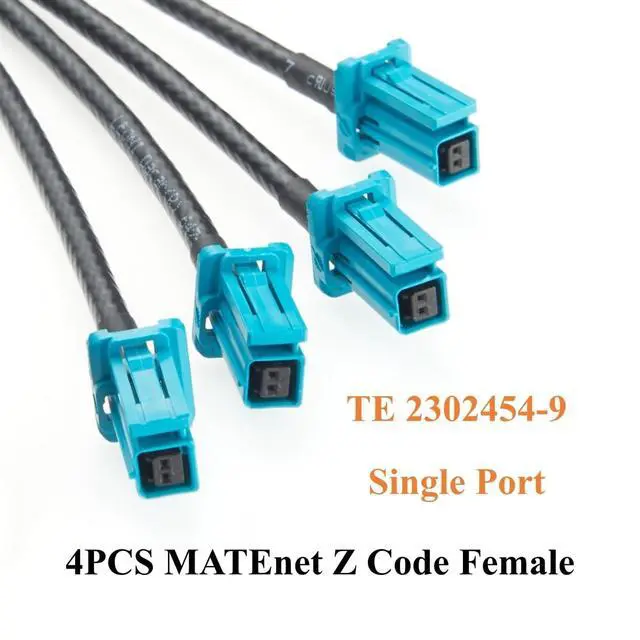

Connector B: 4PCS X MAT
Enet Z Code Female Connector, Single Port, TE 2302454-9

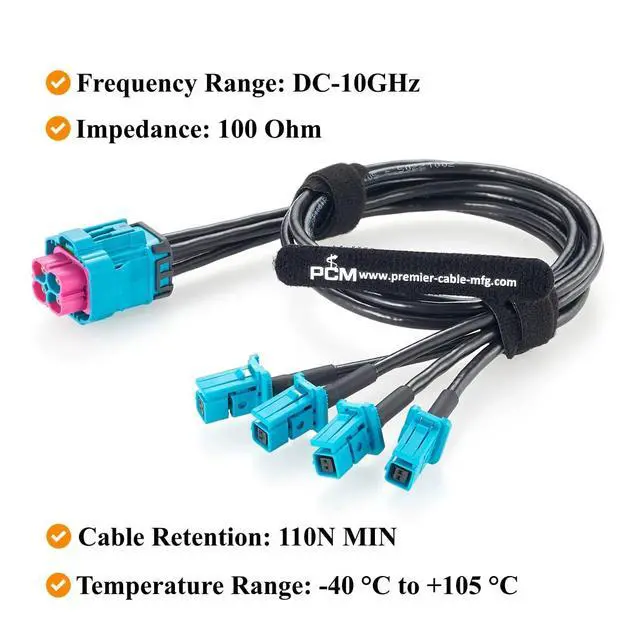

Impedance: 100 Ohm
Frequency Range: DC-10GHz
Hi-Pot: 500 VRMS MIN
Cable Retention: 110N MIN
Operating Temperature Range: -40°C to +105°C

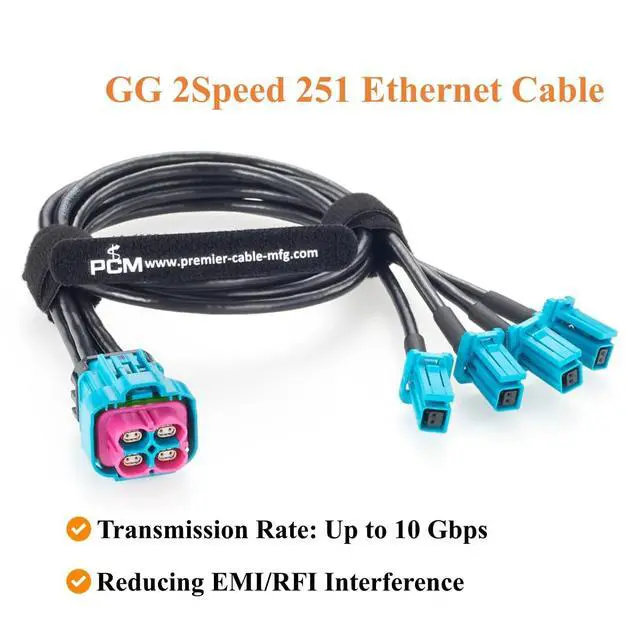

Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
Name: IP67 Waterproof 4-In-1 H-MTD Z Code Female to MAT
Enet Female Automotive Ethernet Breakout Cable
Part No.: PCM-ZC-0177
Cable Length: 0.5M / 1.64FT
Connector A: 4-in-1 H-MTD Z Code Female Connector, Four-Cavity, IP67 Waterproof, Rosenberger E6K14D-1CAZ5-Z
Connector B: 4PCS X MAT
Enet Z Code Female Connector, Single Port, TE 2302454-9
Impedance: 100 Ohm
Frequency Range: DC-10GHz
Hi-Pot: 500 VRMS MIN
Cable Retention: 110N MIN
Operating Temperature Range: -40°C to +105°C
Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
