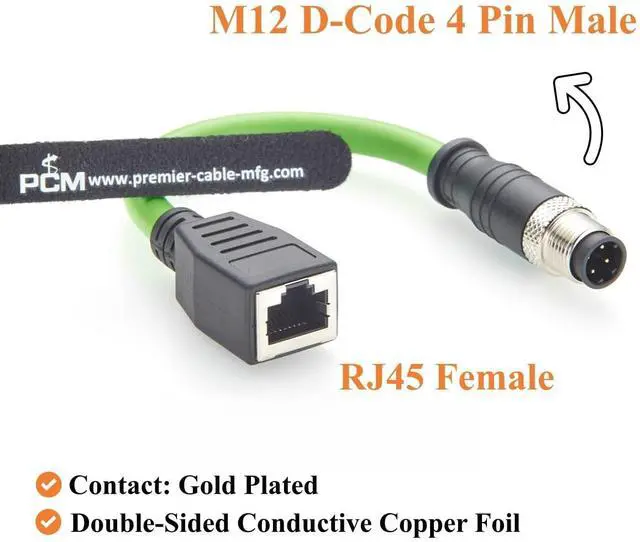

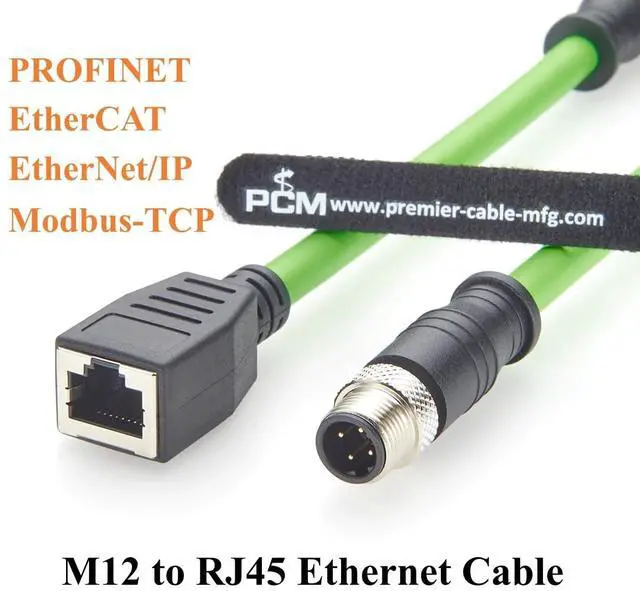

PROFINET M12 D-Code 4 Pin Male to RJ45 Female Industrial Ethernet Cable CAT5e SFTP Shielded IP67 100Mbps High Flex Cable for EtherCAT, EtherNet/IP, PLC, Robot, Sensor, Automation Systems(0.2m/0.66FT)
- Industrial M12 D-Code to RJ45 This M12 D-Code 4 Pin Male to RJ45 Female Industrial Ethernet Cable, Fully compatible with PROFINET, EtherCAT, EtherNet/IP, and Modbus-TCP Networks.; High-Speed 100Mbps CAT5e M12 D-Code 4Pin to RJ45 Cable, Built with CAT5e SFTP shielded cable, Support up to 100Mbps Data Transmission.; High Quality & Shielded M12 D-Coded 4 Pin ethernet cable, built with 22AWG*4C Twisted Pairs, aluminum foil and braided shielding to effectively reduce electromagnetic interference (EMI/RFI).; IP67 Waterproof & High Flex The M12 D Code connector offers IP67-rated waterproof and dustproof protection when properly mated. Flexible PUR jacket provides outstanding resistance to oil, abrasion, bending, Rated for up to 5 million drag chain cycles and 3 million torsion cycles, ideal for robots, moving automation equipment.; Wide Compatibility IP67 M12 D Code to RJ45 Cable, Compatible with industrial automation systems from IFM, Turck, Phoenix Contact, HARTING, Binder, Belden, and Murrelektronik. Ideal for PLC, industrial cameras, robotics, AGV, motion control, Machine Vision, industrial Switches, I/O Modules, and sensor networks.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product

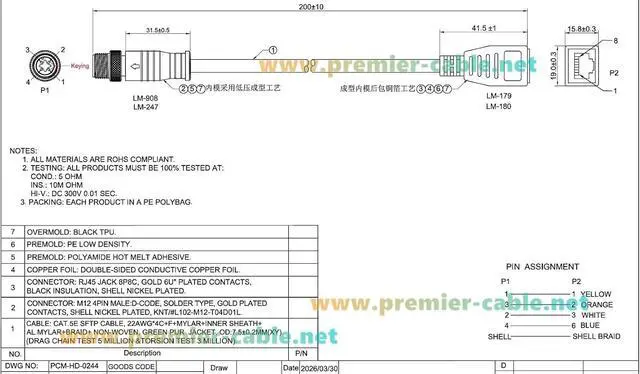

Name: M12 D-Code 4 Pin to RJ45 Industrial Ethernet Cable DWG No.: PCM-HD-0244
Connector A: M12 D-Code 4 Pin Male
Connector Connector B: RJ45 8P8C Female
Connector Length: 0.2M / 0.66FT

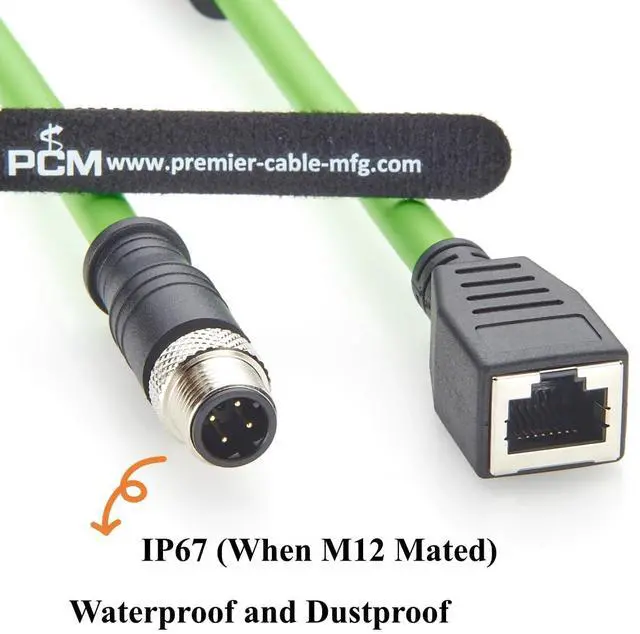

Protection Class: IP67 (When M12 Mated)

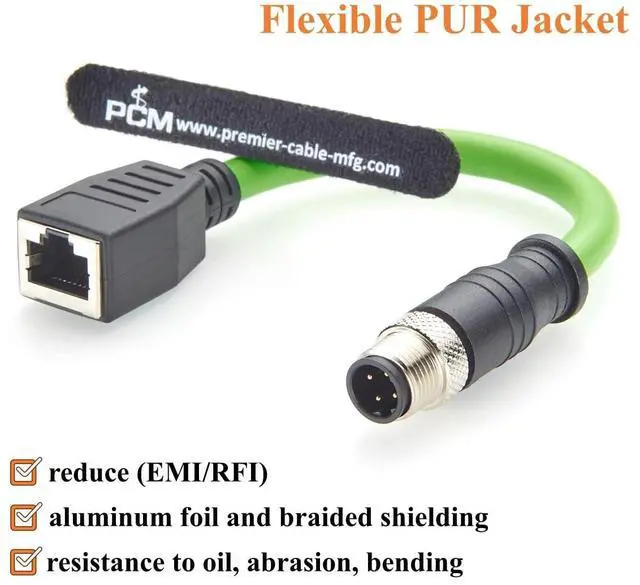

Wire Gauge: CAT. 5E SFTP, 22AWG*4C+F+MYLAR+INNER SHEATH+AL. MYLAR+BRAID+ NON-WOVEN, PUR Jacket, OD: 7.5 + 0.2MM
Contact: Gold

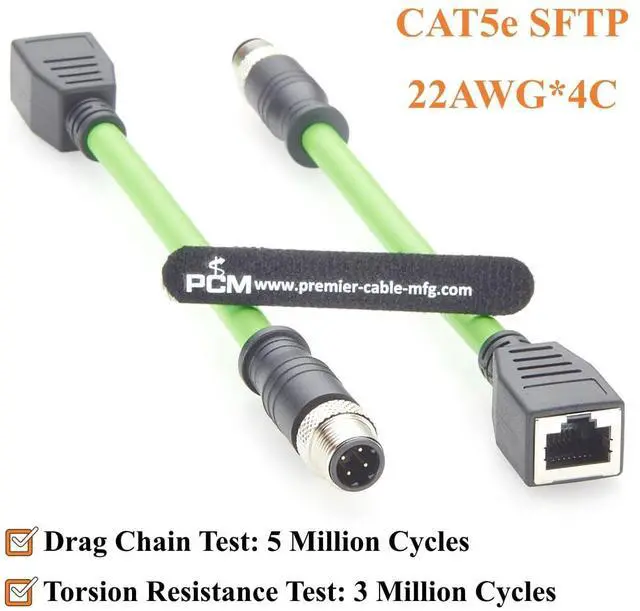

Plated Copper Foil: Double-Sided Conductive Copper Foil Drag Chain Test: 5 Million Cycles Torsion
Resistance Test: 3 Million Cycles
Transmission Rate: 100Mbps
Name: M12 D-Code 4 Pin to RJ45 Industrial Ethernet Cable DWG No.: PCM-HD-0244
Connector A: M12 D-Code 4 Pin Male
Connector Connector B: RJ45 8P8C Female
Connector Length: 0.2M / 0.66FT
Protection Class: IP67 (When M12 Mated)
Wire Gauge: CAT. 5E SFTP, 22AWG*4C+F+MYLAR+INNER SHEATH+AL. MYLAR+BRAID+ NON-WOVEN, PUR Jacket, OD: 7.5 + 0.2MM
Contact: Gold
Plated Copper Foil: Double-Sided Conductive Copper Foil Drag Chain Test: 5 Million Cycles Torsion
Resistance Test: 3 Million Cycles
Transmission Rate: 100Mbps
