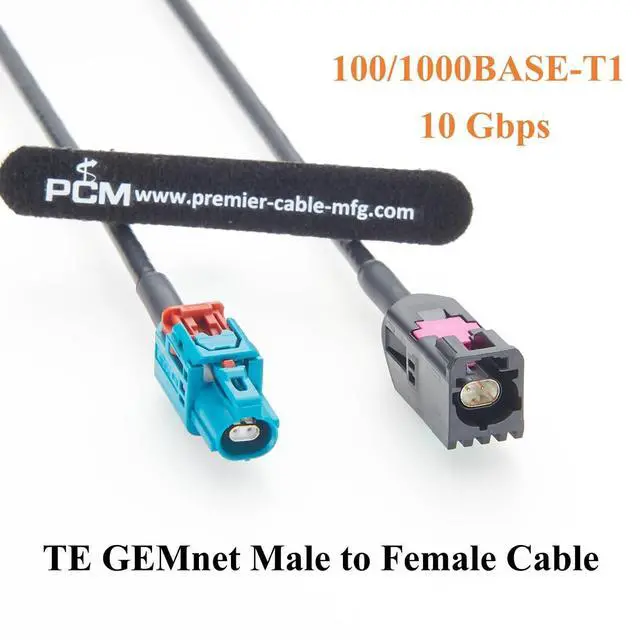

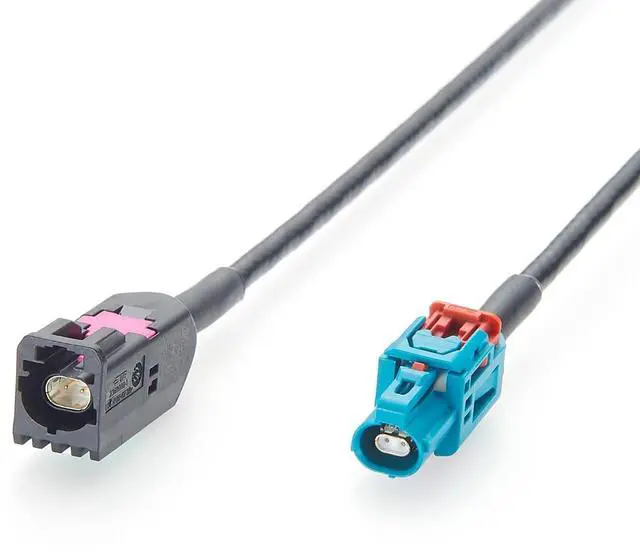

TE GEMnet Male to Female Automotive Ethernet Cable 10Gbps 100/1000BASE-T1 Vehicle Network Cable 2368003-1 to 1-2368022-4 for ADAS Camera, ECU, Domain Controller, Robotaxi (1M/3.28FT)
- Original TE GEMnet Connector GEMnet Male to Female Extension Cable, Equipped with TE Connectivity GEMnet A Code Male Connector (2368003-1), and TE GEMnet Z Code Female Connector (1-2368022-4). providing secure locking, vibration resistance and dependable automotive-grade connectivity.; LEONI Dacar 686-3 Ethernet Cable The TE GEMnet Vehicle Ethernet Harness, Built with LEONI Dacar 686-3 automotive Ethernet cable, Support 100 Ohm Impedance and DC-10GHZ Frequency, shielded twisted pair design, low insertion loss, excellent EMI/RFI protection, and stable high-frequency signal transmission.; 10Gbps High Speed TE GEMnet Vehicle Network Cable, Supports 100/1000BASE-T1, 10Gbps and multi-gig automotive Ethernet communication, ensuring ultra-low latency and stable communication for ADAS, autonomous driving, and ECU systems.; Rugged & Durable GEMnet Automotive Ethernet Cable with operating temperatures from -40°C to +105°C, 500 VRMS dielectric strength, and 110N cable retention force, ensuring long-term durability, secure installation, and stable operation under vibration and extreme conditions.; Applications The TE GEMnet Automotive Ethernet Cable, Ideal for ADAS cameras, surround-view systems, LiDAR/radar modules, ECU communication, domain controllers, Robotaxi platforms, telematics systems, autonomous Driving networks, in-vehicle infotainment, digital cockpit, and GPS Navigation.; Custom Cable We are a professional cable manufacturer, please contact us for custom
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

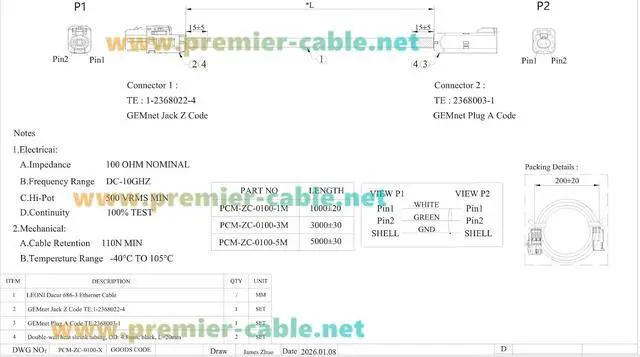

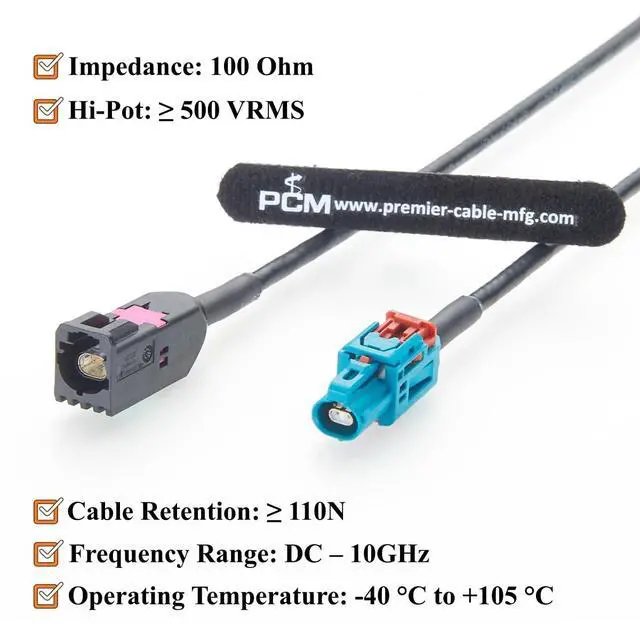

Specification: Product
Name: TE GEMnet Male to Female Automotive Ethernet Cable
Part No.: PCM-ZC-0100
Connector A: Original TE GEMnet A Code Male Connector, 2368003-1
Connector B: Original TE GEMnet Z Code Female Connector, 1-2368022-4
Cable Length: 1M/3M/5M
Optional Impedance: 100 Ohm
Frequency Range: DC 10GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C

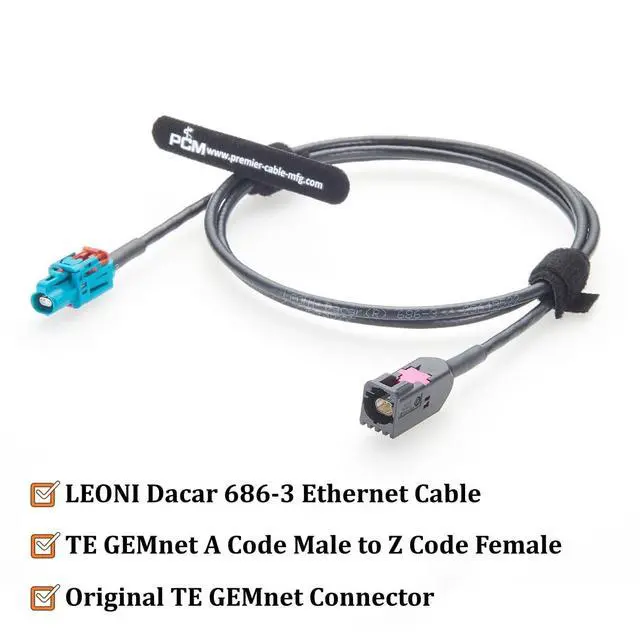

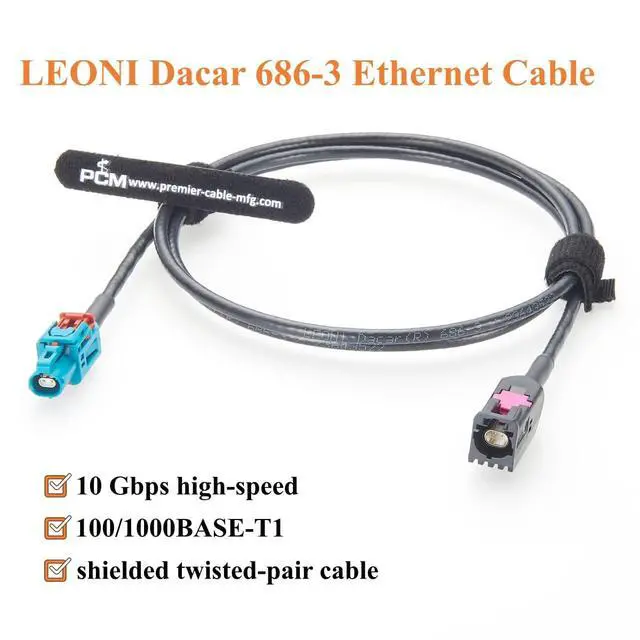

Wire: LEONI Dacar 686-3 Ethernet
Cable Transmission Rate: 100BASE-T1, 1000BASE-T1, 10 Gbps
Name: TE GEMnet Male to Female Automotive Ethernet Cable
Part No.: PCM-ZC-0100
Connector A: Original TE GEMnet A Code Male Connector, 2368003-1
Connector B: Original TE GEMnet Z Code Female Connector, 1-2368022-4
Cable Length: 1M/3M/5M
Optional Impedance: 100 Ohm
Frequency Range: DC 10GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C
Wire: LEONI Dacar 686-3 Ethernet
Cable Transmission Rate: 100BASE-T1, 1000BASE-T1, 10 Gbps
