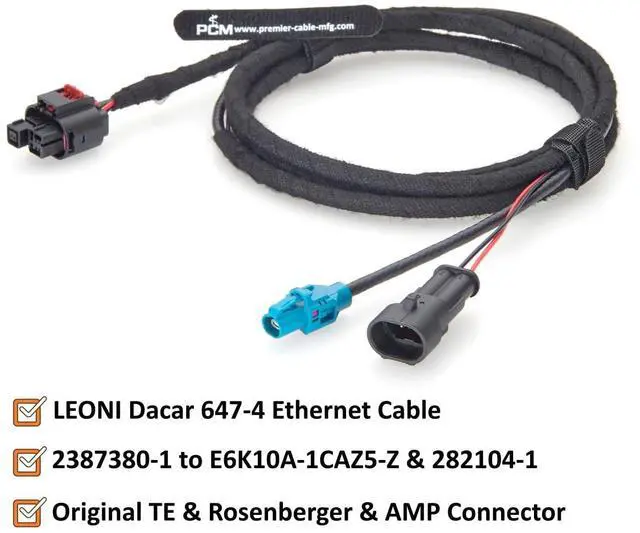

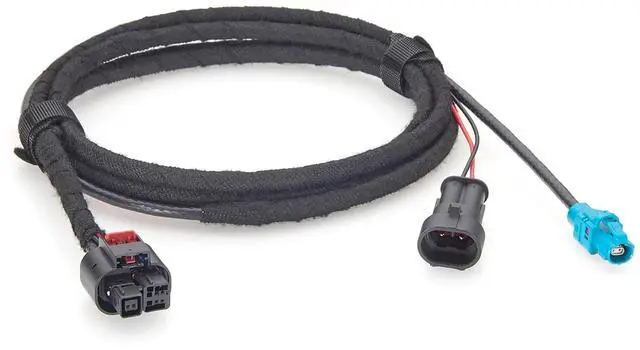

TE MATEnet LiDAR Automotive Ethernet Breakout Cable 2387380-1 to H-MTD E6K10A-1CAZ5-Z & AMP Superseal 282104-1 Sensor Harness for ADAS, ECU, Domain Controller, NVIDIA Drive AGX Thor (2M/6.6FT)
- Original Connector TE MATEnet LiDAR Automotive Ethernet Cable, equipped with MATEnet A Code 2+6 Pin Female (2387380-1), AMP Superseal 2Pin (282104-1), and Rosenberger H-MTD Z Code Female (E6K10A-1CAZ5-Z).; Hybrid LiDAR Sensor Breakout Designed with TE MATEnet A Code 2+6 Pin connector (2387380-1), this breakout harness separates high-speed automotive Ethernet and auxiliary circuits into independent outputs for LiDAR systems, ADAS, and autonomous driving platforms.; Independent Power Breakout The 2 auxiliary conductors from the MATEnet A Code interface are routed to a TE AMP Superseal 2-pin sealed connector (282104-1), providing a dedicated automotive-grade power interface for sensor and LiDAR applications.; 1000BASE-T1 Automotive Ethernet The 2-pin differential pair from the MATEnet A Code interface are routed to a Rosenberger H-MTD Z Code connector (E6K10A-1CAZ5-Z), supporting 100BASE-T1 and 1000BASE-T1 in-vehicle Ethernet communication.; Automotive-Grade Construction The TE MATEnet Vehicle Ethernet Harness, Built with LEONI Dacar 647-4 Ethernet Cable, Support 100 Ohm Impedance and DC-2GHZ Frequency, resist electromagnetic interference (EMI/RFI). 500VRMS dielectric withstand voltage, 110N retention force, and an operating temperature range of -40°C to +105°C.; Applications TE MATEnet LiDAR Automotive Ethernet Breakout Harness, Ideal for ADAS cameras, LiDAR systems, NVIDIA DRIVE AGX Thor platforms, Bench DevKit, In-Vehicle DevKit, ECU communication, domain
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product
Name: TE MAT
Enet LiDAR Automotive Ethernet Cable
Part No.: PCM-XQD-0001
Connector A: TE MAT

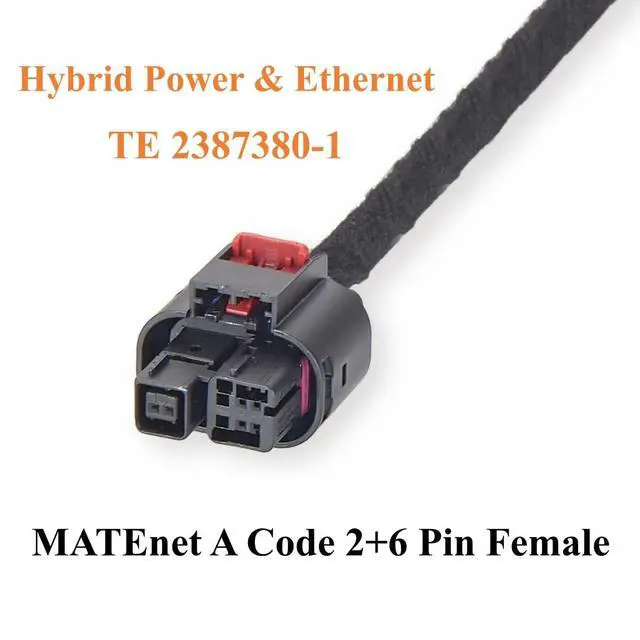

Enet A Code 2+6 Pin Female, 2387380-1

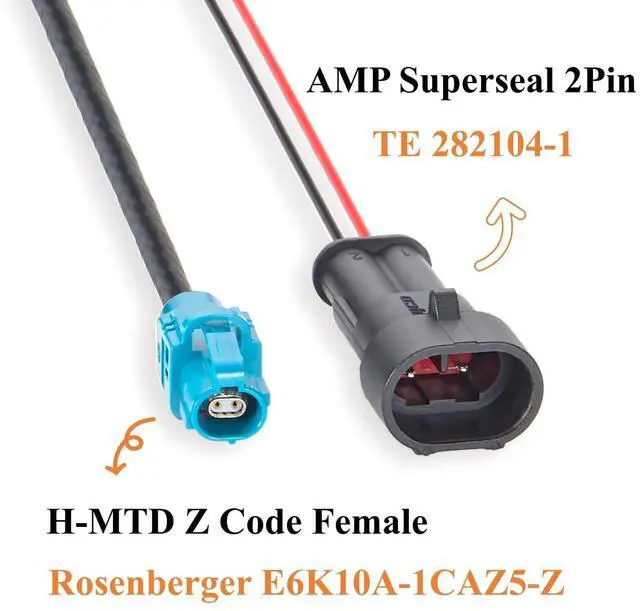

Connector B: TE AMP Superseal 2Pin Sealed Connector Housing, 282104-1
Connector C: Rosenberger H-MTD Z Code Female, E6K10A-1CAZ5-Z
Cable Length: 2M/5M

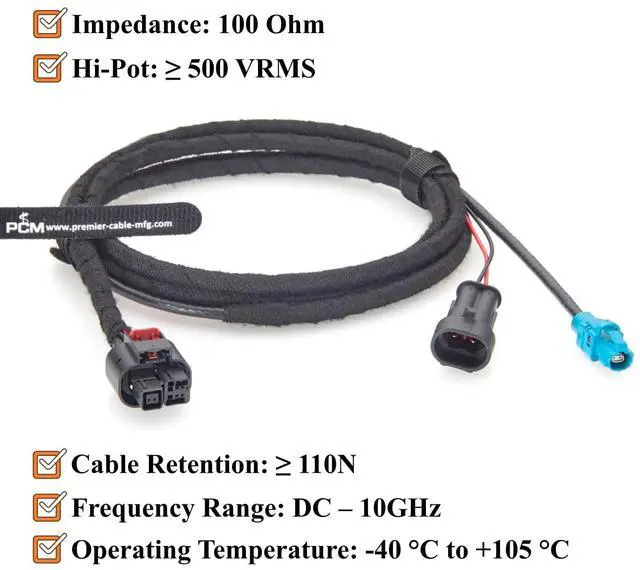

Optional Impedance: 100 Ohm
Frequency Range: DC 2GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C

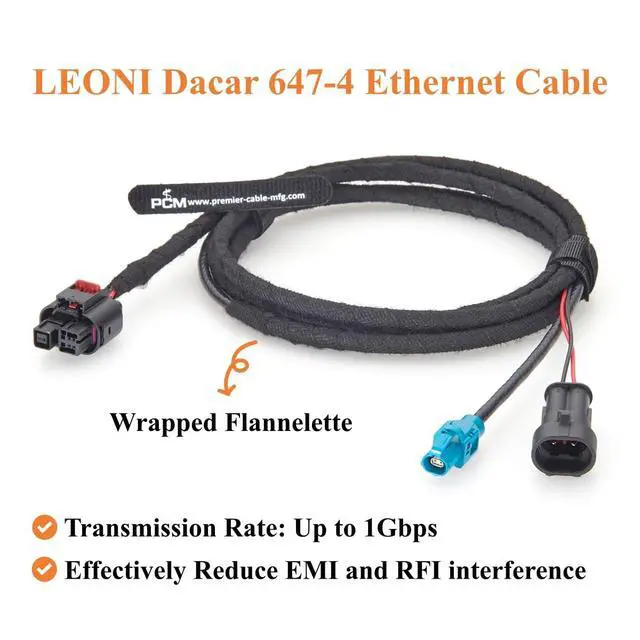

Wire: LEONI Dacar 647-4 Ethernet Cable 2

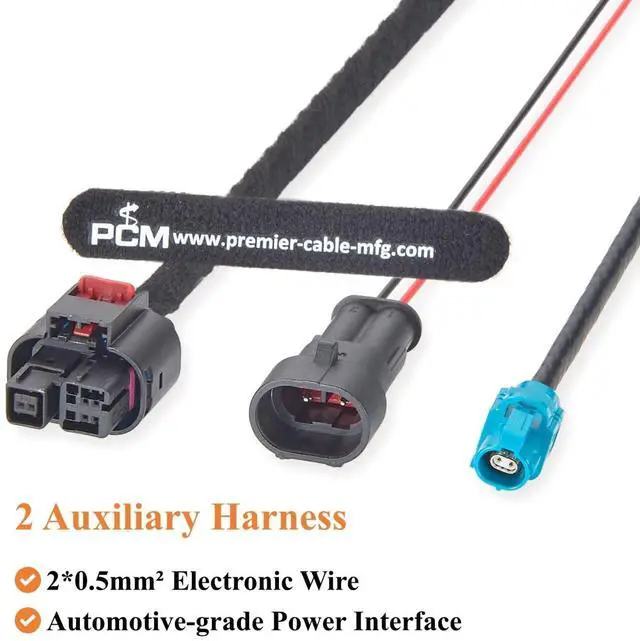

Pin Harness: 2* 0.5 mm² Electronic Wire
Name: TE MAT
Enet LiDAR Automotive Ethernet Cable
Part No.: PCM-XQD-0001
Connector A: TE MAT
Enet A Code 2+6 Pin Female, 2387380-1
Connector B: TE AMP Superseal 2Pin Sealed Connector Housing, 282104-1
Connector C: Rosenberger H-MTD Z Code Female, E6K10A-1CAZ5-Z
Cable Length: 2M/5M
Optional Impedance: 100 Ohm
Frequency Range: DC 2GHz
Hi-Pot: 500 VRMS
Cable Retention: 110N
Operating Temperature: -40 °C to +105 °C
Wire: LEONI Dacar 647-4 Ethernet Cable 2
Pin Harness: 2* 0.5 mm² Electronic Wire
