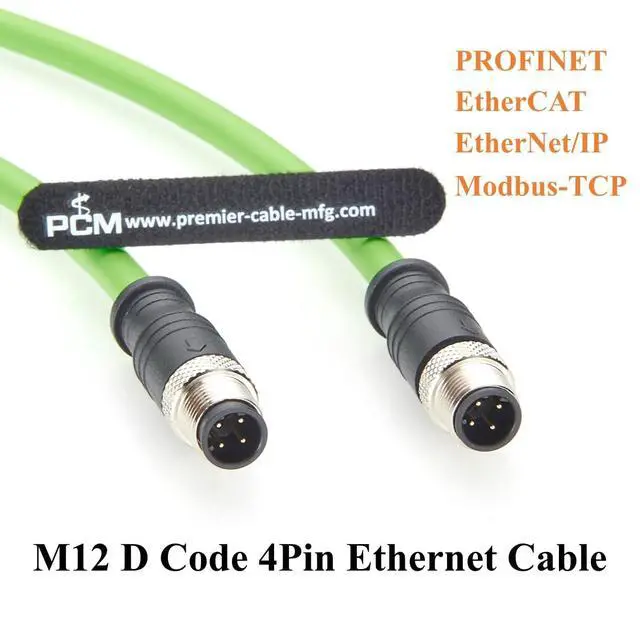

PROFINET M12 D-Coded 4 Pin Male to Male Industrial Ethernet Cable CAT5e Shielded IP67 High Flex Drag Chain Cable for EtherCAT, PLC, Robot, Industrial Switch, Machine Vision, I/O Modules (2M/6.6FT)

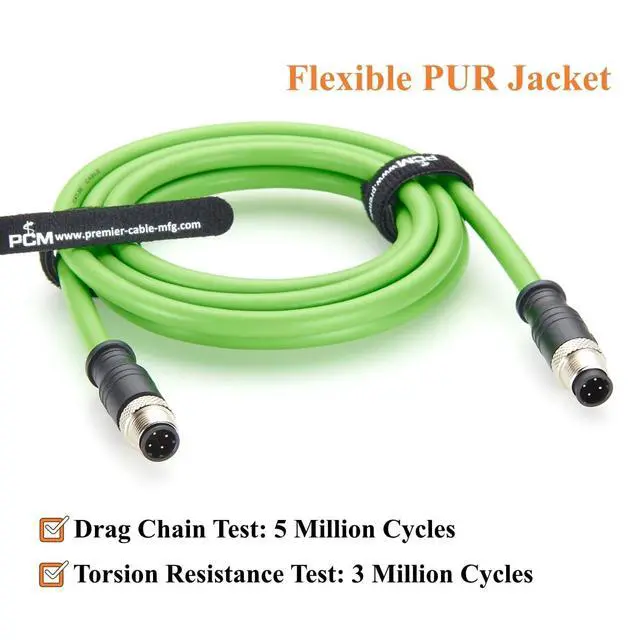

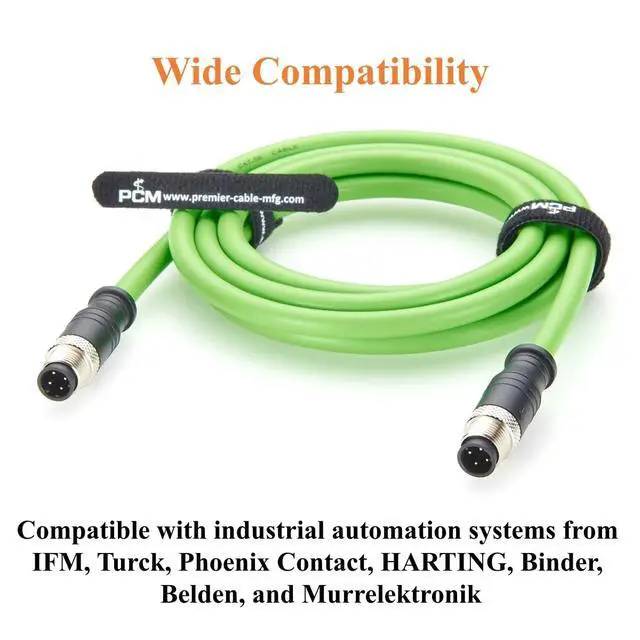

- Industrial M12 D-Code Cable This M12 D-Coded 4 Pin Male to Male Industrial Ethernet Cable, designed for direct device-to-device and panel-to-panel communication in industrial automation systems. Supports PROFINET, EtherCAT, EtherNet/IP, and Modbus-TCP protocols.; High-Speed 100Mbps CAT5e M12 D Code Ethernet Cable, Built with CAT5e SFTP shielded cable, Support up to 100Mbps Data Transmission.; High Flex & Shielded M12 D-Coded 4 Pin ethernet cable, built with 22AWG*4C Twisted Pairs, aluminum foil and braided shielding to effectively reduce electromagnetic interference (EMI/RFI). Flexible PUR jacket provides outstanding resistance to oil, abrasion, bending, Rated for up to 5 million drag chain cycles and 3 million torsion cycles, ideal for robots, moving automation equipment.; IP67 Waterproof & Secure Locking Equipped with M12 D-Coded 4-pin male connectors on both ends, providing a secure screw-lock mechanism for stable connection. When properly mated, it provides IP67-rated protection against water and dust ingress.; Wide Compatibility IP67 M12 D Code male to male Cable, Compatible with industrial automation systems from IFM, Turck, Phoenix Contact, HARTING, Binder, Belden, and Murrelektronik. Ideal for PLC, industrial cameras, robotics, AGV, motion control, Machine Vision, industrial Switches, I/O Modules, control cabinets, factory automation, Panel Internal Wiring, sensor, and industrial Ethernet networks.; Custom Cable We are a professional cable manufactu
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product

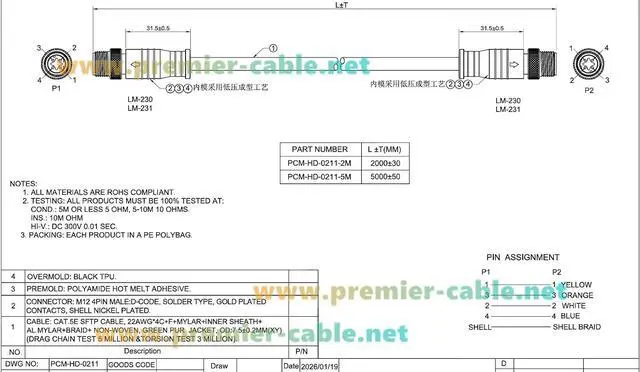

Name: M12 D-Coded 4 Pin Male to Male Industrial Ethernet Cable DWG No.: PCM-HD-0211

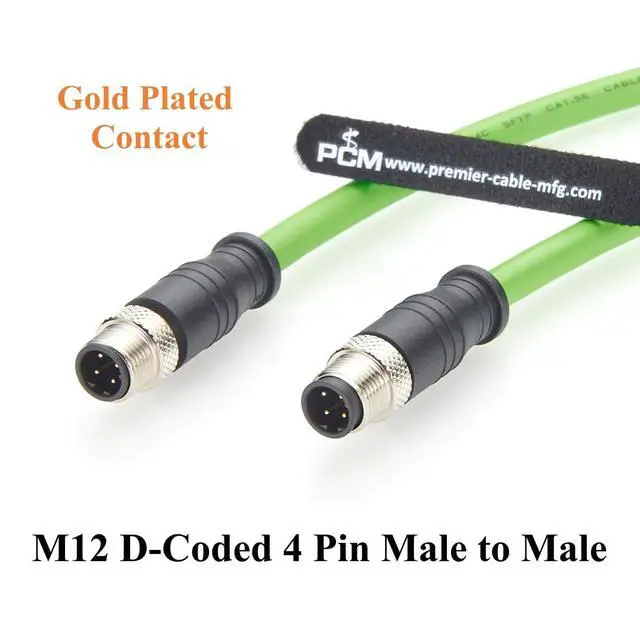

Connector Type: M12 D-Code 4 Pin Male
Connector Length: 2m/5m Optional
Protection Class: IP67 (When M12 Mated)

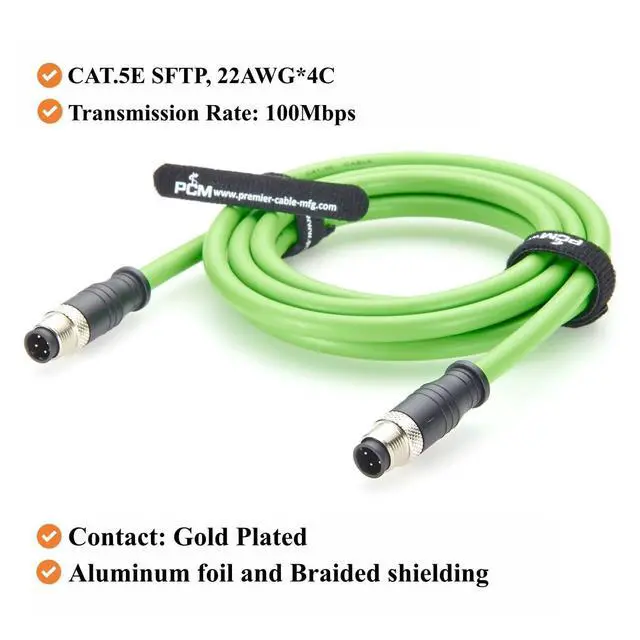

Wire Gauge: CAT. 5E SFTP, 22AWG*4C+F+MYLAR+INNER SHEATH+AL. MYLAR+BRAID+ NON-WOVEN, PUR Jacket, OD: 7.5 + 0.2MM
Contact: Gold
Plated Drag Chain Test: 5 Million Cycles Torsion
Resistance Test: 3 Million Cycles
Transmission Rate: 100Mbps
Name: M12 D-Coded 4 Pin Male to Male Industrial Ethernet Cable DWG No.: PCM-HD-0211
Connector Type: M12 D-Code 4 Pin Male
Connector Length: 2m/5m Optional
Protection Class: IP67 (When M12 Mated)
Wire Gauge: CAT. 5E SFTP, 22AWG*4C+F+MYLAR+INNER SHEATH+AL. MYLAR+BRAID+ NON-WOVEN, PUR Jacket, OD: 7.5 + 0.2MM
Contact: Gold
Plated Drag Chain Test: 5 Million Cycles Torsion
Resistance Test: 3 Million Cycles
Transmission Rate: 100Mbps
