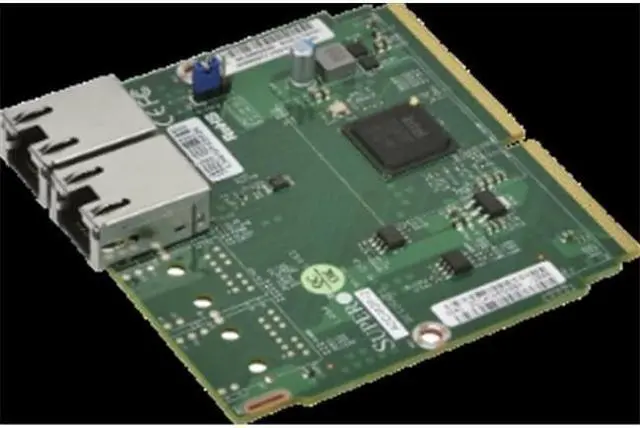

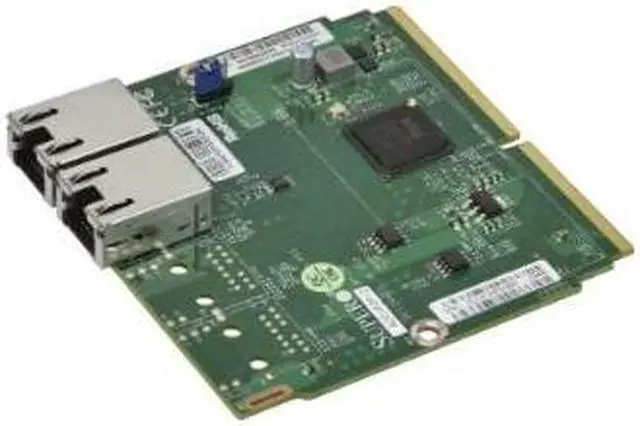

Supermicro AOC-MGP-I2M Dual-port Gigabit Ethernet Adapter (for Twin Systems)

Specifications

• Mfr Part Number: AOC-MGP-I2M

• Features:
  • Super I/O Module (SIOM) Form Factor
  • Intel i350 GbE controller

  • Dual RJ45 Ports

  • VMDq and SR-IOV for Virtualized Environments

  • Jumbo Frames support
  • Energy Efficient Ethernet (EEE)
  • iSCSI Remote Boot Support
  • PXE Boot Support
  • Support for most Network Operating Systems
  • Asset Management Features
  • NC-SI for Remote Management
  • RoHS compliant 6/6
• General:
  • Intel i350 GbE controller

  • Super I/O Module (SIOM) Form Factor
  • Dual RJ45 ports
  • Intel I/O Acceleration Technology (Intel I/OAT)

• Ethernet Features:
  • IEEE 802.3 auto-negotiation for speed, duplex, and flow control
  • IEEE 802.3x and 802.3z compliant flow control support
  • Automatic cross-over detection function (MDI/MDI-X)
  • 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant

  • IEEE 1588 protocol and 802.1AS implementation
• Power Management and Efficiency
  • ​Energy Efficient Ethernet (EEE)
  • DMA Coalescing reduces platform power consumption
  • Active State Power Management (ASPM) support
  • LAN disable function
  • MAC Power Management controls
  • Low Power Link Up - Link Speed Control
• Virtualization Features:
  • PC-SIG SR-IOV support
  • VM to VM Packet forwarding (Packet Loopback)
  • Flexible Port Partitioning
  • IEEE 802.1q VLAN support
  • IEEE 802.1q advanced packet filtering
  • Jumbo Frames support

• Performance Features:
  • TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage
  • Low Latency Interrupts
  • Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage
  • Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments
  • Intelligent interrupt generation
• Management Features:
  • Preboot eXecution Environment (PXE) support
  • iSCSI Remote Boot Support
  • Asset Management support on Supermicro platforms
  • Controller asset tags such as part number, revision, serial number, and MAC addresses
  • NC-SI for remote management
• OS Support:
  • Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
  • Windows 8.1, 8, 7 (x64 Edition)
  • RedHat Linux
  • SUSE Linux
  • FreeBSD
  • UEFI
  • VMWare

• Cables Support:
  • RJ45 Category 5/5e up to 100m
• Power Consumption:
  • Typical 3W, Maximum 3.7W
• Physical Dimensions:
  • Card PCB Dimensions (WxD): 3.62 x 3.43 inch / 92.0 x 87.1 mm

• RoHS Compliant
