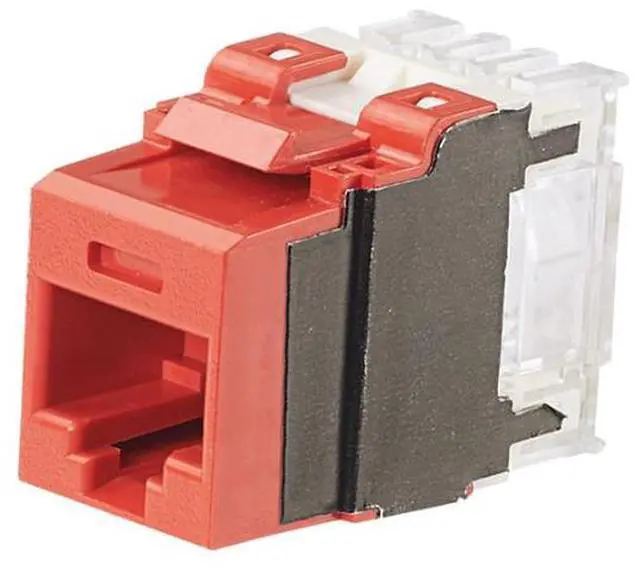

Panduit NK6X88MRD NetKey Cat6a RJ45 Keystone Punchdown Jack Module, Red

Panduit NK6X88MRD NetKey Category 6A jack module, Red. Designed for high-performance Category 6A network installations and termination of 4-pair, 22-26 AWG twisted-pair cable.

Specifications:

Note Punchdown style termination

Product Type Jack Module

Performance Level Category 6A

Connector Type Jack Module - Standard

Termination Style Punchdown

Body Material Polycarbonate

Contact Material Plated Phosphor Bronze

Module Type Keystone

Wiring Scheme T568A/T568B

Shield Type Unshielded (UTP)

Sub Brand NetKey®

Maximum Operating Temperature (°C) 75

Maximum Operating Temperature (°F) 167

Minimum Operating Temperature (°C) -10

Minimum Operating Temperature (°F) 14

Maximum Storage Temperature (°C) 75

Maximum Storage Temperature (°F) 167

Minimum Storage Temperature (°C) -40

Minimum Storage Temperature (°F) -40

Color Red

Standards Met Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel and Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant

Overall Length (In.) 1.16

Overall Length (mm) 29.5

Overall Width (In.) 0.65

Overall Width (mm) 16.5

Overall Depth (In.) 1.16

Overall Depth (mm) 29.5

Overall Height (In.) 0.9

Overall Height (mm) 22.9
