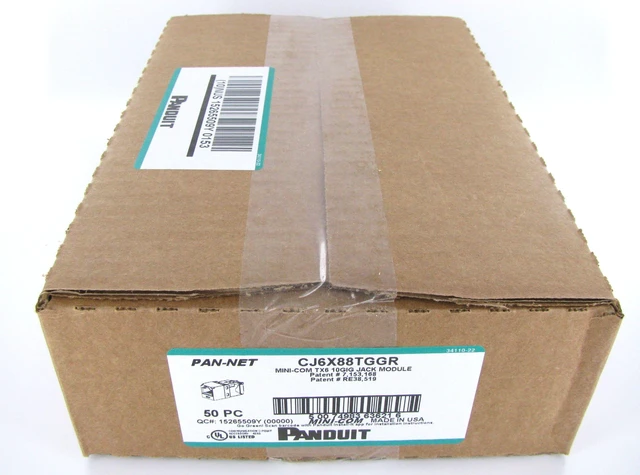

Panduit CJ6X88TGGR Cat6a 10 Gig Mini-Com Jack Module, Green, Box of 50

Panduit Mini-Com TX6 10 Gig Cat6a Jack Module, Green, Box of 50

The green Panduit EGJT-1 tool is used to terminate this jack.

Description:

Mini-Com Module, Cat 6A, UTP, 8 pos 8 wire, Universal, Green, TG Style

Features:

Exceed requirements of ANSI/TIA-568-C.2 Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards

Exceed ANSI/TIA-568-C.2 Category 6A and IEC 61156-5 Category 6A component standards

Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications

Each jack is 100% tested to ensure NEXT and RL performance and is individually serialized for traceability

Utilize patent-pending enhanced Giga-TXTechnology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist

Contacts plated with 50 microinches of gold for superior performance

No punchdown tool required; termination tool (EGJT-1) ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability

Optional termination tool (TGJT) reduces termination time by 25%, ideal for high volume installations

Can be re-terminated a minimum of twenty times

Blue termination cap designates Category 6A performance and provides positive strain relief; helps control cable bend radius and securely retains wires

Terminate 4-pair, 22 - 26 AWG, 100 ohm, solid or stranded twisted pair cable

Universal termination cap is color-coded for T568A and T568B wiring schemes

Accept 6 and 8-position modular plugs without damage

Can be clearly identified with optional labels and icons

Compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes

Optional RJ45 Blockout device blocks out unauthorized access to jack modules and potentially harmful foreign objects, saving time and money associated with data security breaches, network downtime, repair and hardware replacement

Optional Dust cap keeps out dust and debris while not in use

Optional RJ45 Lock-in device blocks unauthorized removal of cable, IP phone, other networking equipment or critical connection

Optional RJ45 blockout device blocks out unauthorized access to jack modules and potentially harmful foreign objects, saving time and money associated with data security breaches, network downtime, repair, and hardware replacement

Optional dust cap keeps out dust and debris while not in use

Specifications:

Part Number CJ6X88TGGR

RoHS Compliancy Status Compliant

Part Description Category 6A, RJ45, 10 Gb/s, 8-position, 8-wire universal module.

Product Type UTP Jack Module

Material Module housing - ABS

Wire Cap - Plastic

Strain Relief Clip - Plastic

Color Green

Depth (In.) 1.50

Depth (mm) 38.1

Height (In.) 0.71

Height (mm) 18.06

Width (In.) 0.63

Width (mm) 16.1

CE Compliant No

No. of Module Spaces 1

Performance Level Category 6A/Class EA

Pricing Description Mini-Com Module, Cat 6A, UTP, 8 pos 8 wire, Universal, Green, TG Style

Wiring Scheme T568A/T568B
