Main image of Commscope UNJ600-262 Uniprise Cat6 Modular Jack, White

Shop All CommScope, Inc Products | Visit STSI Store

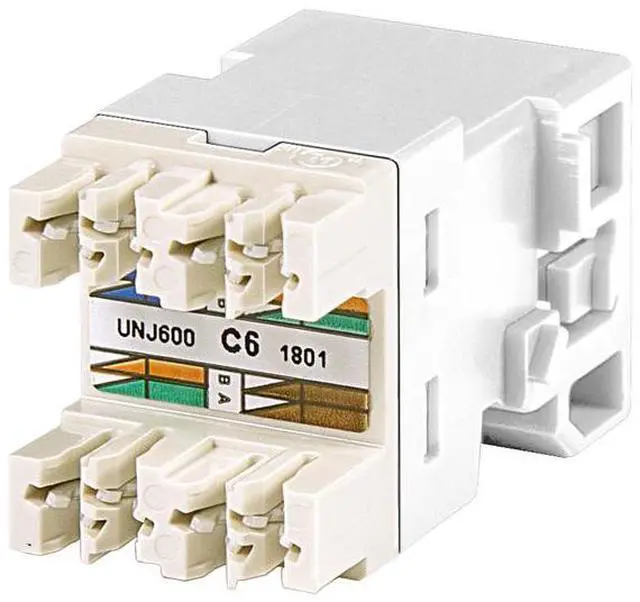

Commscope UNJ600-262 Uniprise Cat6 Modular Jack, White

Depth 30.48 mm | 1.20 in
Height 20.32 mm | 0.80 in
Width 20.32 mm | 0.80 in
ANSI/TIA Category 6
Contact Resistance Variation, maximum 20 mOhm
Contact Resistance, maximum 100 mOhm
Current Rating 1.5 A @ 20 °C
1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, conductive surface 1500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact 1000 Vac @ 60 Hz
Insulation Resistance, minimum 500 MOhm
Flammability Rating UL 94 V-0
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity Up to 95%, non-condensing
Safety Standard cUL | UL
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Cable Type U/UTP (unshielded)
Color White
Brand Uniprise®
Application Universal design and label supports both T568 A and B wiring
Mount Type Snaps into standard CommScope M-Series faceplates, surface mount boxes, consolidation point boxes, or CommScope modular panels
Mounting Note Can be mounted either at 90° (straight) or at 45° (angled) in any CommScope faceplate
Package Quantity 1
Product Type Outlet
Conductor Gauge, solid 22 AWG | 24 AWG
Conductor Gauge, stranded 22 AWG | 23 AWG | 24 AWG
Conductor Type Solid | Stranded (7 strands)
Material Type Copper alloy | High-impact, flame retardant, thermoplastic
Outlet/Module Contact Plating Precious metals
Plug Insertion Life, minimum 750 times

Choking Hazard Small parts. Not for children under 3 years.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Commscope Uniprise UNJ600 Category 6 U/UTP Information Outlet, white

Snaps into standard CommScope M-Series faceplates, surface mount boxes, consolidation point boxes, or CommScope modular panels
